Doughty Slimline Hook Clamp

Doughty Slimline Hook Clamp

The Doughty Slimline Hook Clamp is the industry standard slimline half coupler, engineered for professional rigging and trussing applications. Constructed from high tensile extruded aluminium, this robust clamp ensures secure and reliable attachment to truss systems without damaging the cords. Designed to accommodate tube diameters from 48mm to 51mm (1.89″ – 2.01″), it is both versatile and dependable.

With a working load limit (WLL) of 750Kg, the clamp is slotted to hold captive an M12 nut or bolt head. Each unit is supplied complete with an M12 x 45 bolt and wing nut, making installation quick and trouble-free. Available in polished silver or powder coated black, the Doughty Slimline Hook Clamp is a trusted solution for event production, theatre, and touring professionals.

Its slim 30mm (1.18″) profile makes it ideal for use in tight rigging environments where space and weight are critical factors.

Downloads:

User Manual

Key Features:

• Industry standard slimline half coupler
• Made from high tensile extruded aluminium
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Supplied with M12 x 45 bolt and wing nut
• Available in polished silver or powder coated black finish

Specifications:

• Working Load Limit (WLL): 750Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Includes: M12 x 45 bolt and wing nut

References:

• Doughty Engineering Official Product

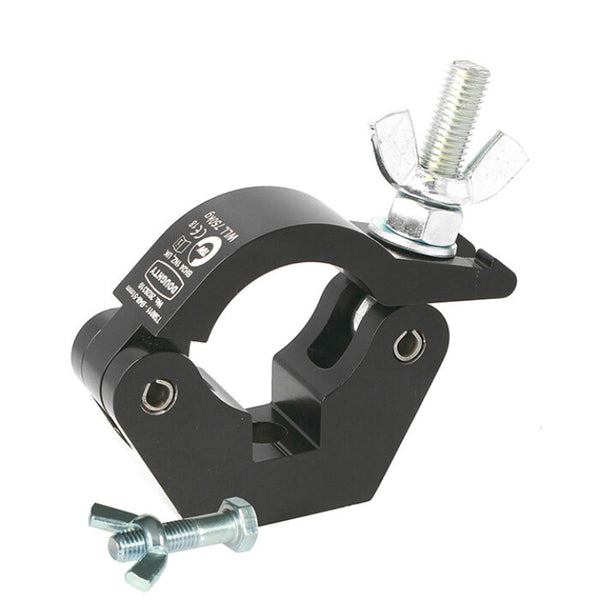

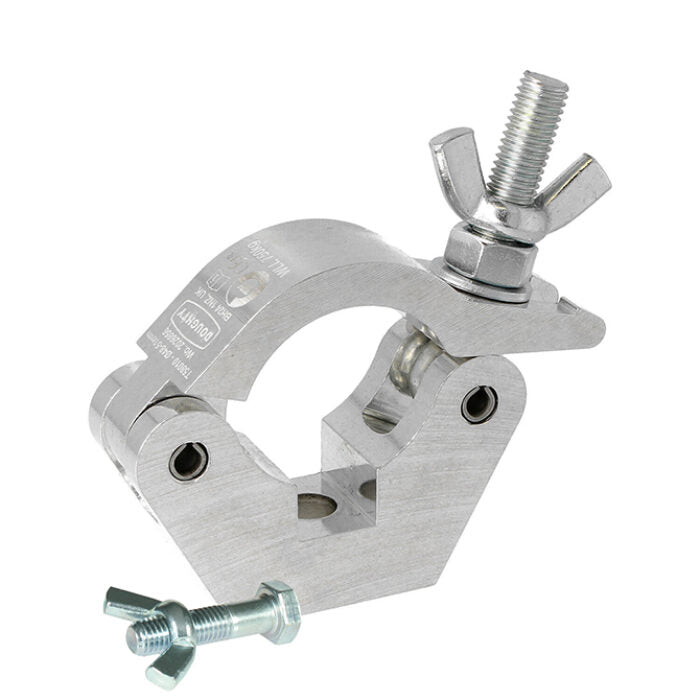

• Part Numbers: T58010 (Polished), T58011 (Black)
• Data Sheet: T58010-T58011

Choose the Doughty Slimline Hook Clamp for superior strength, ease of use, and damage-free trussing in professional lighting and rigging applications.
