Doughty Pivot Hinge with Two Clamps, (Cheeseboro)

Product No. T57249

COLOR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

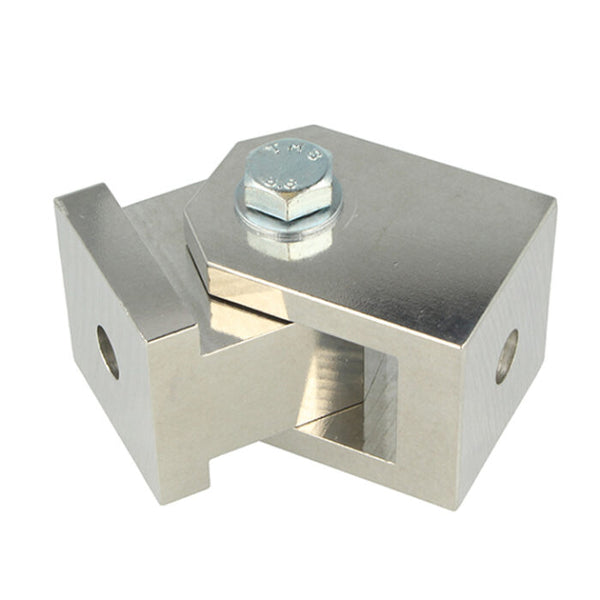

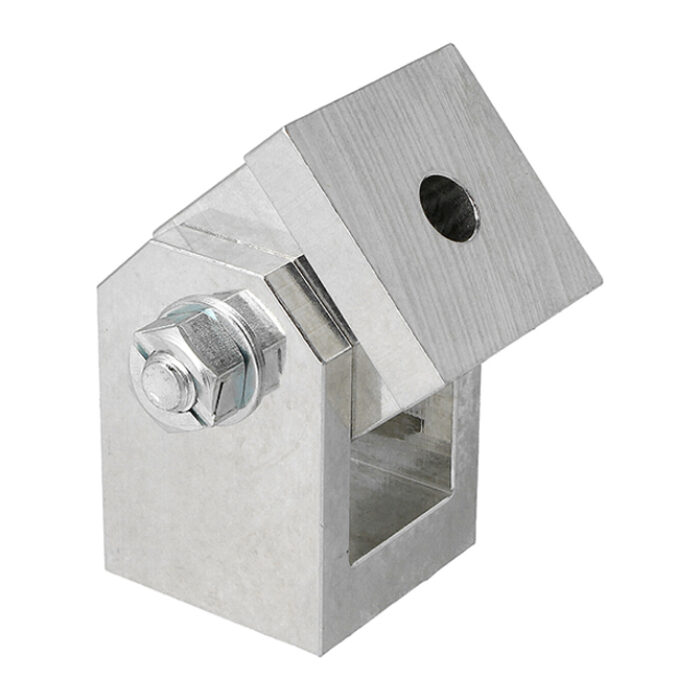

Doughty Pivot Hinge with Two Clamps, (Cheeseboro)

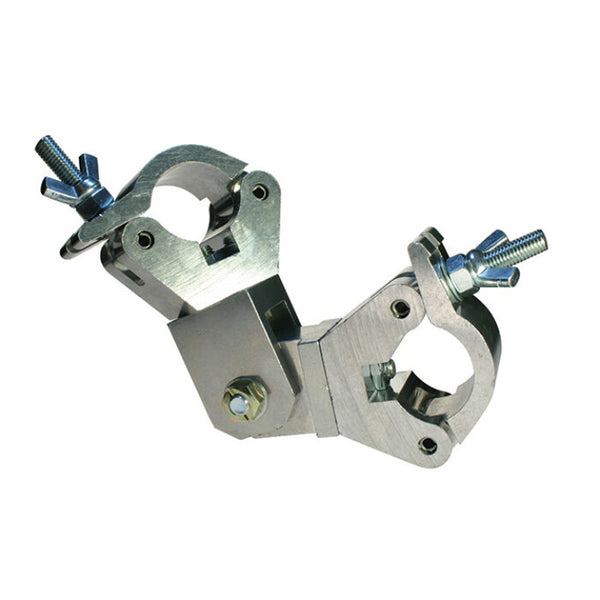

Manufactured from high tensile aluminium, this hinge assembly is available on its own or factory fitted with two T57000 half couplers.

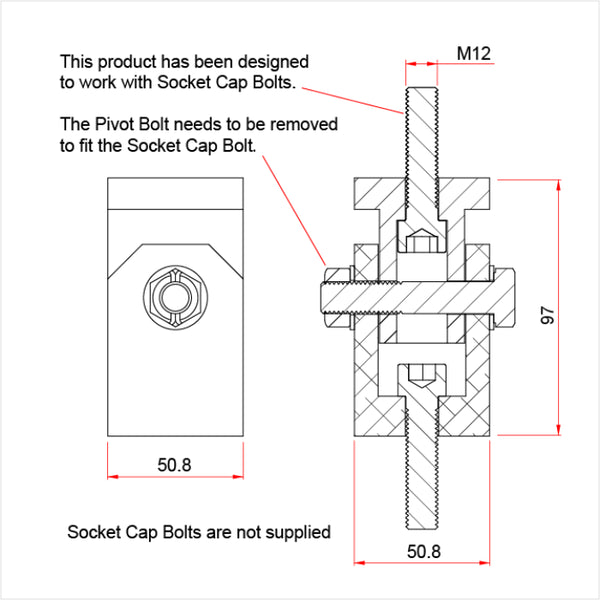

The pivot hinge is designed only to work with Socket Cap Bolts.


Downloads:

User Manual




Key Features:

  • Constructed from high tensile aluminium for superior strength
  • Supplied with two T57000 half couplers (Cheeseboro type)
  • Precision-engineered hinge assembly for structural connections
  • Compatible exclusively with Socket Cap Bolts
  • Ideal for rigging and truss articulation applications



Specifications:

  • Material: High tensile aluminium
  • Couplers Included: Two T57000 half couplers
  • Bolt Compatibility: Socket Cap Bolts only
  • Product Type: Pivot hinge with clamps
  • Use Case: Rigging, stage, and truss systems



References:

  • Doughty Engineering official product line
  • Model: T57249/T57250
  • Data Sheet available for technical details
