Doughty Little Tom Clamp

Doughty Little Tom Clamp

Doughty's Little Tom Clamp is supplied with a 3/4'' Spigot. Manufactured from high tensile Aluminum Extrusion, this clamp is broadly applicable in the theatre, film, TV and photographic industries.

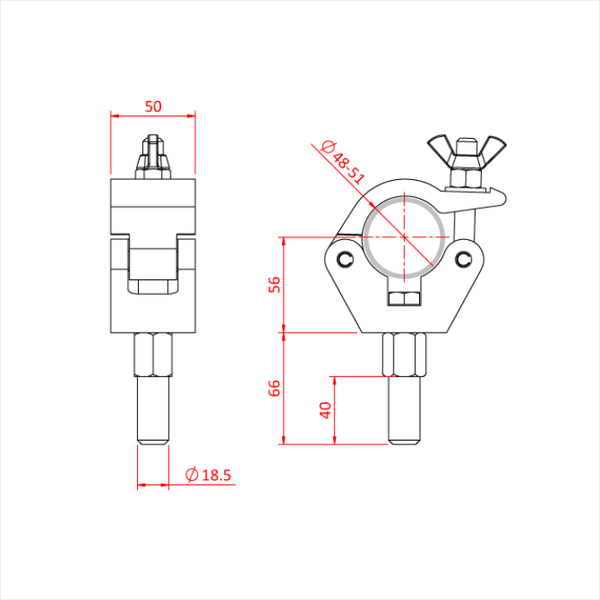

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide, factory fitted with a 18.5mm diameter spigot.

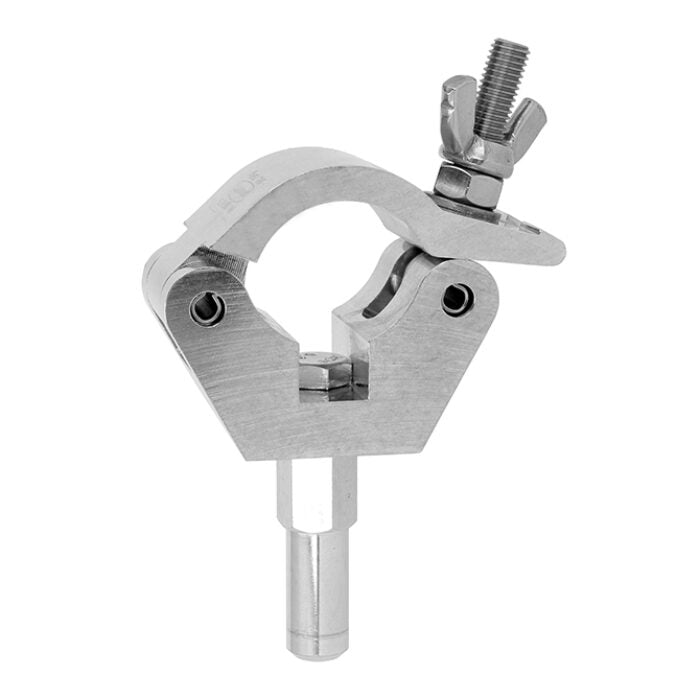

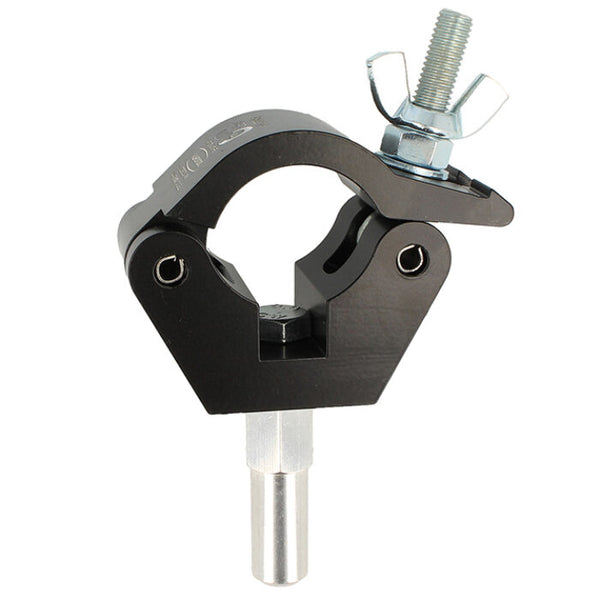

Available in polished silver or powder coated black.

WLL: N/A

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89” – 2.01”) diameter tubes
• Factory fitted with 18.5mm diameter spigot
• Clamp width of 50mm (1.97")
• Available in polished silver or powder coated black

Specifications:

• Material: High tensile extruded aluminium
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Spigot Diameter: 18.5mm
• WLL: N/A

References:

• Doughty Engineering
• Little Tom Clamp Product Line
• Product Data Sheet
