Product details

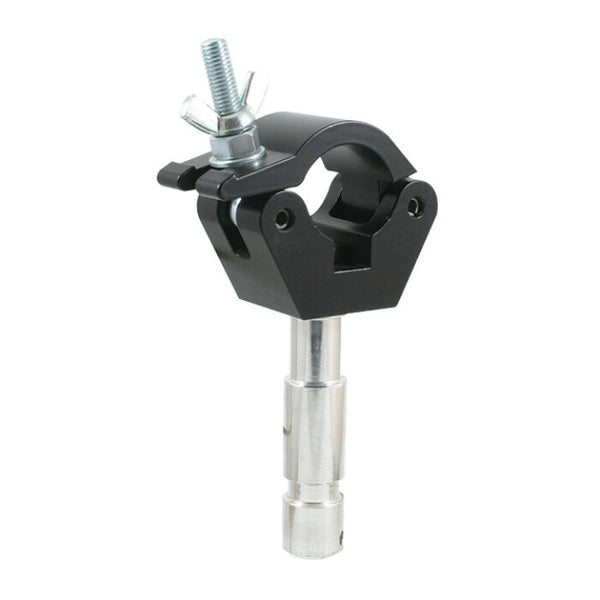

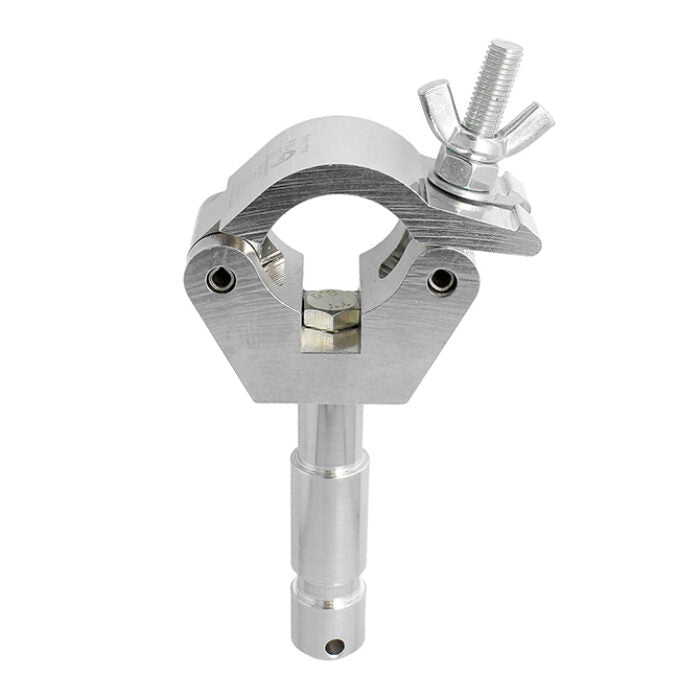

Doughty Big Ben Clamp
The Doughty Big Ben Clamp is supplied with a 1.1'' diameter Spigot. Manufactured from high tensile Aluminum Extrusion, this clamp is widely applicable in the theatre, film, TV and photographic industries. Available in Polished Aluminum.

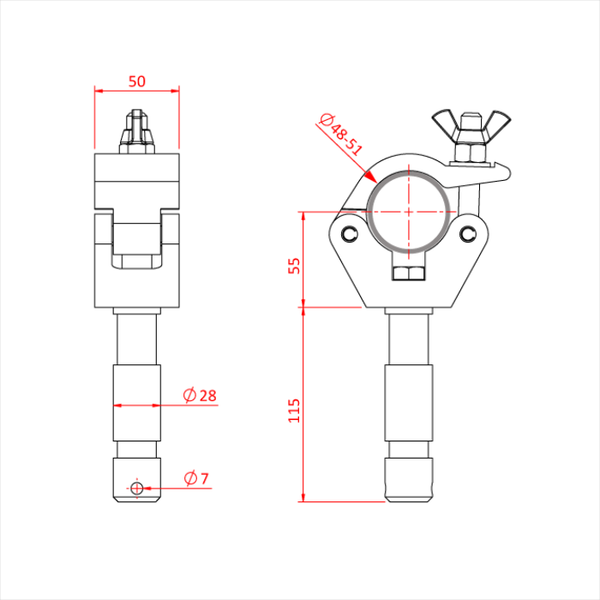

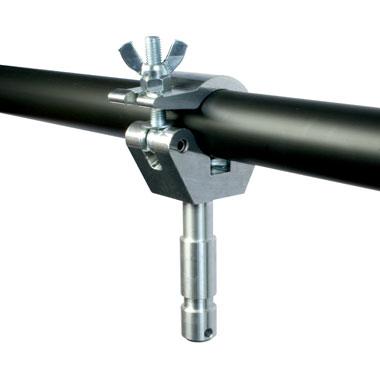

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide factory fitted with a 28mm (1.10″) diameter TV spigot. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
- Factory fitted with a 28mm (1.10″) diameter TV spigot
- Available in polished silver or powder coated black finishes
- Designed for professional rigging and mounting applications
Specifications:
- WLL: 200Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Material: High tensile extruded aluminium
- Spigot Diameter: 28mm (1.10″)
References:
- Doughty Engineering official specifications
- Product Data Sheet
- Industry-standard TV spigot compatibility
