Product details
Doughty Swivel Coupler - Atom Clamp, (Cheeseboro)

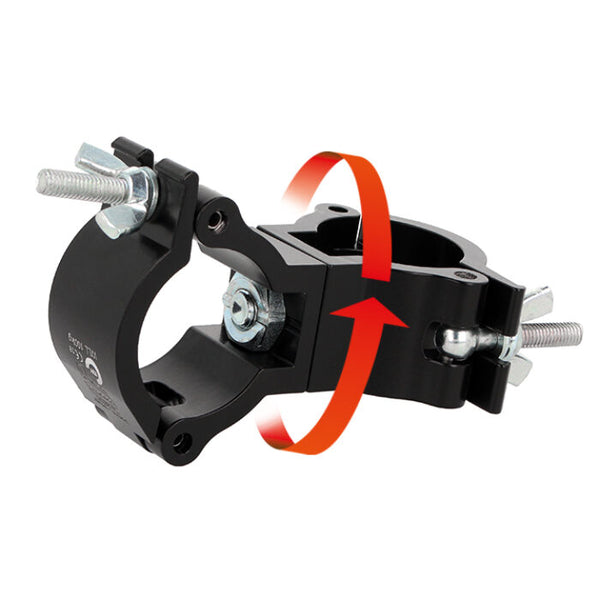

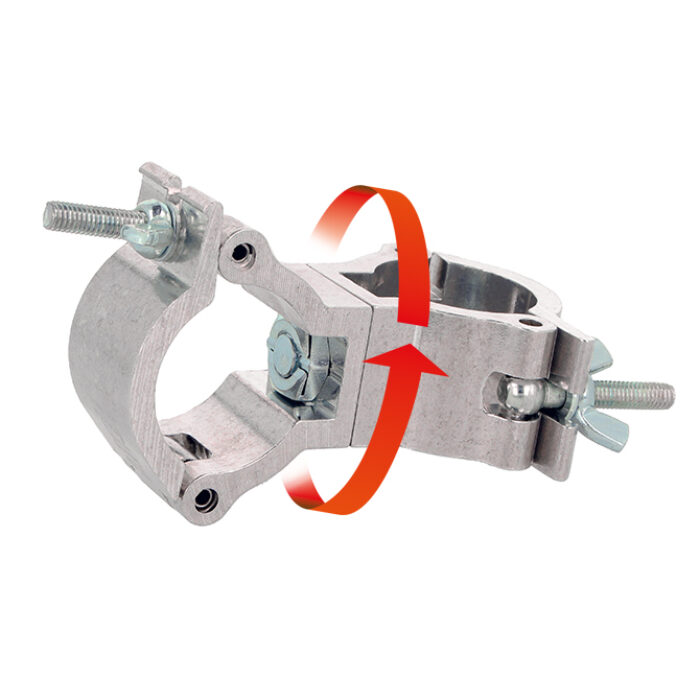

Consists of a pair of high tensile extruded aluminium clamps back to back, and designed to swivel that are suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Swivel design for flexible positioning
- Compatible with 38mm (1.5″) diameter tubes
- Ideal for decorative trussing applications
- Available in polished silver or powder coated black finish

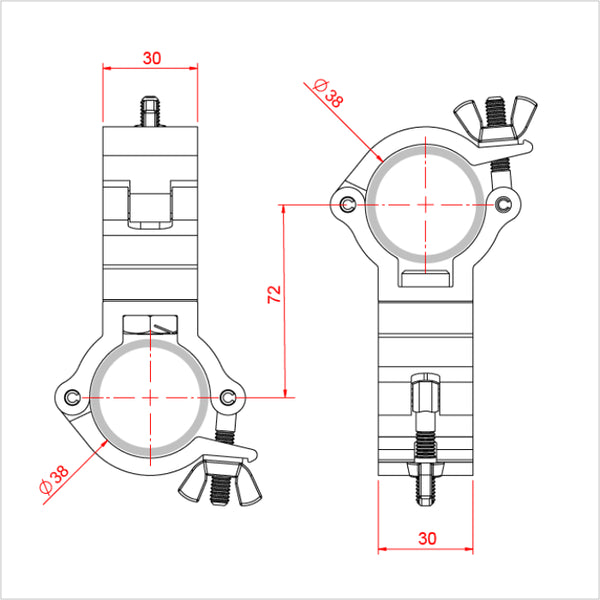

Specifications:
- WLL: 100Kg
- Tube Diameter: 1½" - 38mm
- Clamp Width: 30mm (1.18")
- Tube Centres: 72mm (2.83")
References:
- Doughty Engineering
- Part Number: T58975 / T5897501
- Data Sheet: T58975-T5897501
