Doughty 90 Degree Fixed Coupler - Atom Clamp, (Cheeseboro)

Doughty 90 Degree Fixed Coupler - Atom Clamp, (Cheeseboro)

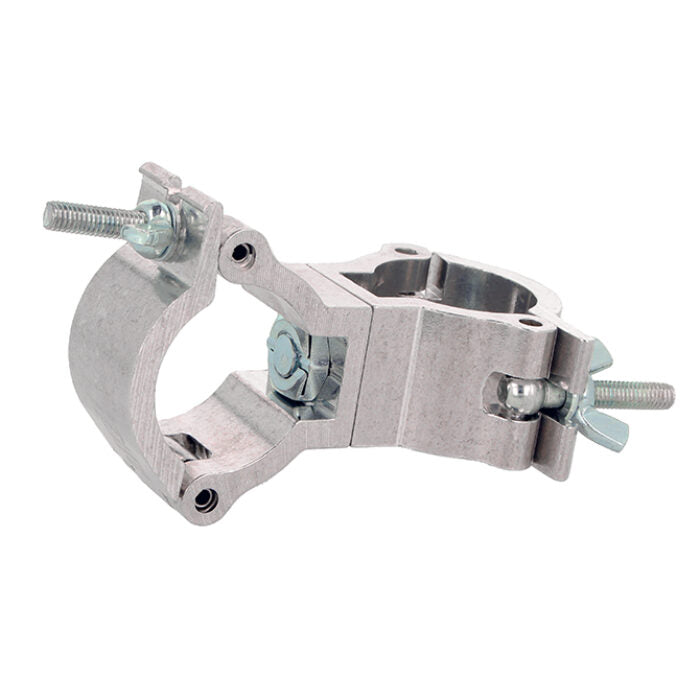

Consists of a pair of high tensile extruded aluminium clamps back to back, locked at 90 degrees that are suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• Fixed 90-degree angle for secure and precise positioning
• Constructed from high tensile extruded aluminium
• Suitable for 38mm (1.5″) diameter tubes
• Clamp width of 30mm (1.18″) ensures secure grip

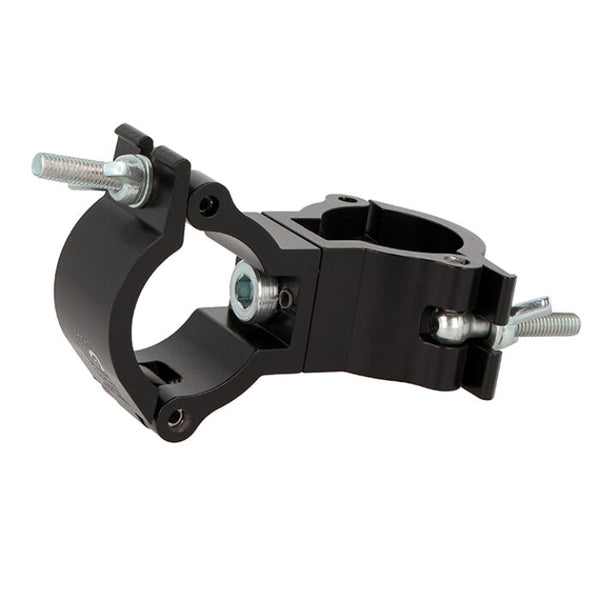

• Available in polished silver or powder coated black finish

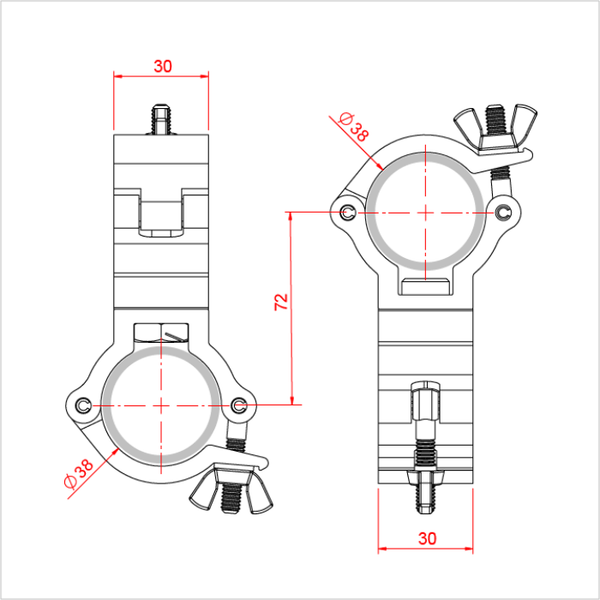

Specifications:

• WLL: 100Kg
• Tube Diameter: 1½"-38mm
• Clamp Width: 30mm (1.18")
• Tube Centres: 72mm (2.83")

References:

• Doughty T58985
• Atom Clamp Series
• Cheeseboro Style Coupler
