Doughty Swivel Coupler - Atom Clamp, (Cheeseboro)

Doughty Swivel Coupler - Atom Clamp, (Cheeseboro)

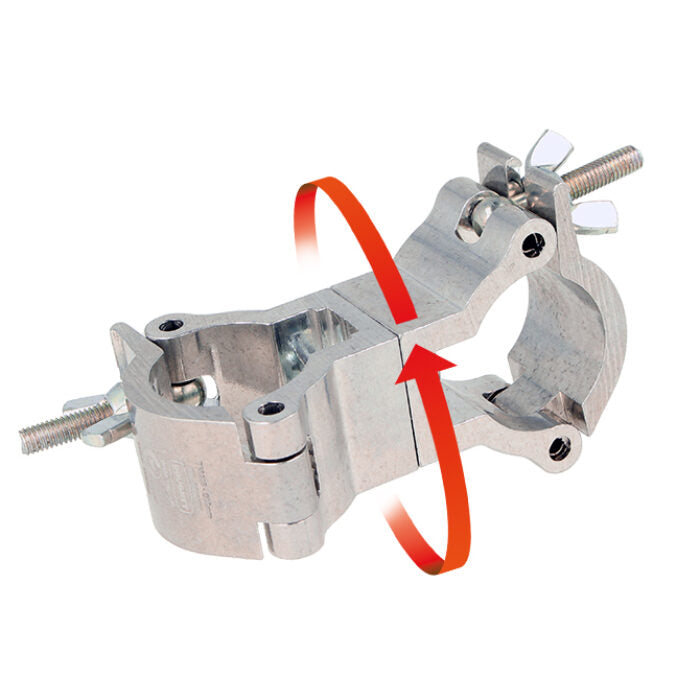

Consists of a pair of high tensile extruded aluminium clamps back to back, designed to swivel and are suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Swivel design for flexible positioning
• Compatible with 35mm (1.38″) diameter tubes
• Working Load Limit (WLL) of 100Kg

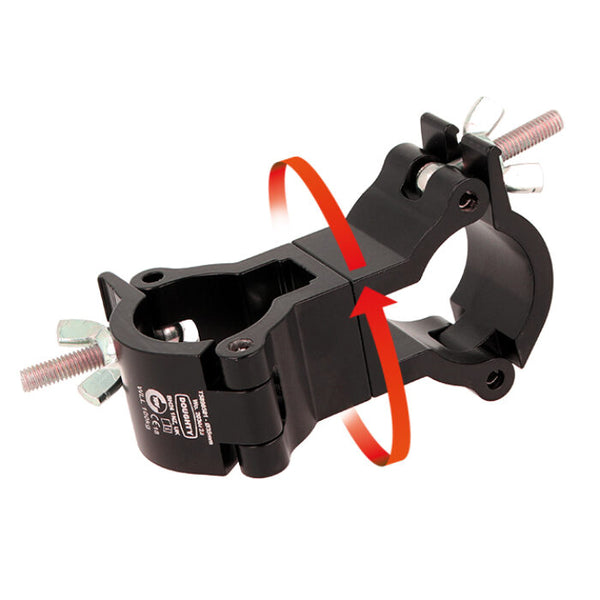

• Available in polished silver or powder coated black

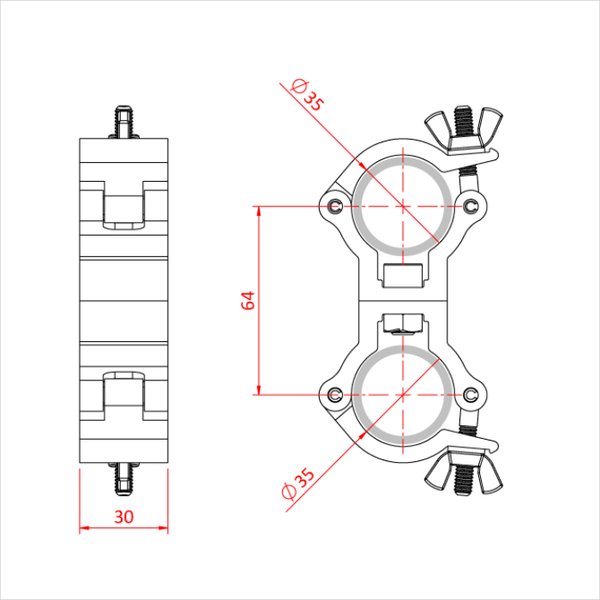

Specifications:

• WLL: 100Kg
• Tube Diameter: 35mm (1.38")
• Clamp Width: 30mm (1.18")
• Tube Centres: 64mm (2.52")
• Material: High tensile extruded aluminium

References:

• Doughty T58905
• Doughty T5890501
• Cheeseboro Swivel Clamp
