Camlok™ THS Plate Clamp
Product No. THS750
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Regular price
$2,282.00 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details

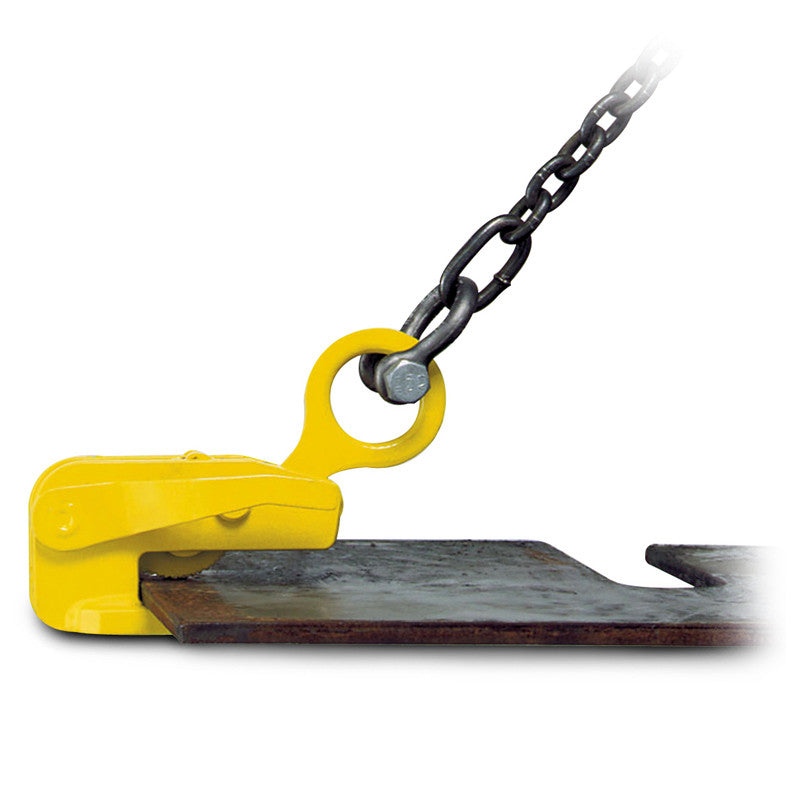

CM’s Camlok THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. These clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing that the plate can withstand the forces imposed. Trust in the Camlok brand to handle your materials safely and reliably every time.
- Spring/lever-operated mechanism securely locks the clamp onto the horizontally positioned plate
- Do not use to lift stainless steel, lead or copper
- Can be used in single or 2 leg slings
- Use lifting beams for longer plates
- Clamp locks quickly onto the plate, enabling a single operator to set up the plate for lifting
- Lifts and handles single sheet steel plates in the horizontal position
- Useful for loading plates into guillotines, presses, punching machines and folding presses
- Caution should be used so that maximum single angle of 60º is not exceeded
- Design factor 4:1
| Product Code | Dimensions (in) * | Weight (lbs) | |||||||
| A | B | C | D | E | F | G | H | ||
| THS750 | 10.039 | 3.819 | 1.969 | 0.591 | 2.756 | 3.15 | 0.472 | 0.591 | 6.6 |
| THS1500 | 13.189 | 4.724 | 2.756 | 0.787 | 3.15 | 3.543 | 0.591 | 0.669 | 13.2 |
| THS4500 | 17.717 | 7.717 | 3.543 | 2.323 | 4.331 | 4.331 | 0.787 | 1.181 | 37.5 |

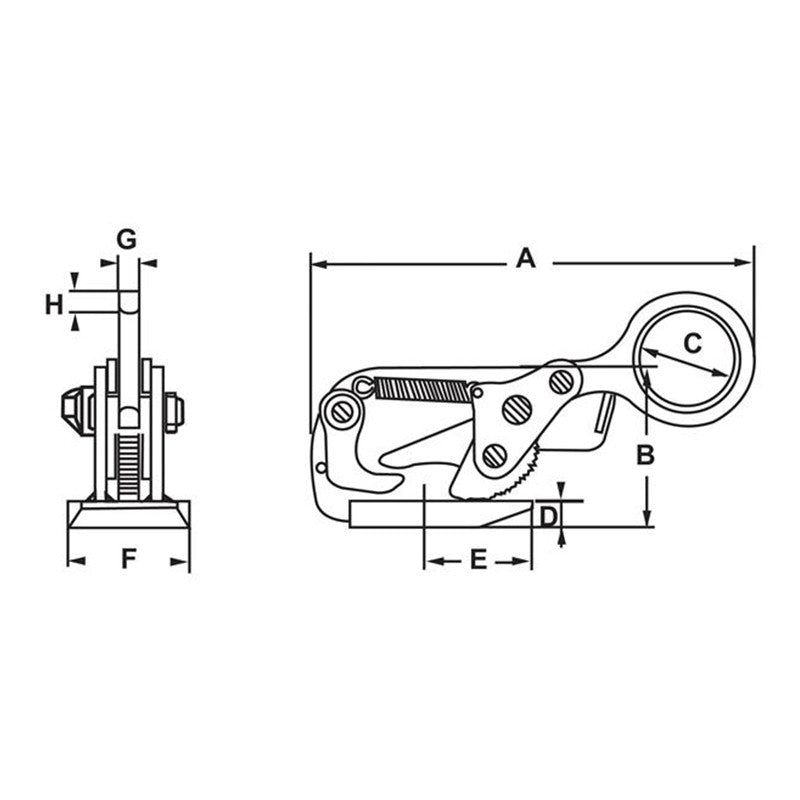

* Refer to product drawing above
| Product Code | Working Load Limit | Jaw Capacity (in) | |
| Minimum (lbs) | Maximum (lbs) | ||
| THS750 | 90 | 1,600 | 0 to 3/4 |
| THS1500 | 175 | 3,300 | 0 to 1-3/8 |
| THS4500 | 500 | 9,900 | 0 to 1-3/4 |
