Camlok™ CX Heavy-Duty Hinged Universal Plate Clamp

Camlok

CX3000

$1,158.30

Minimum WLL

1000 LBs

2650 LBs (0 to 2" Jaw)

3550 LBs (0 to 2" Jaw)

3550 (2" to 4" Jaw)

4400 LBs (0 to 2" Jaw)

4400 LBs (2" to 4" Jaw)

Qty

Category: Below-the-Hook Attachment, Material Handling, Vertical Clamp

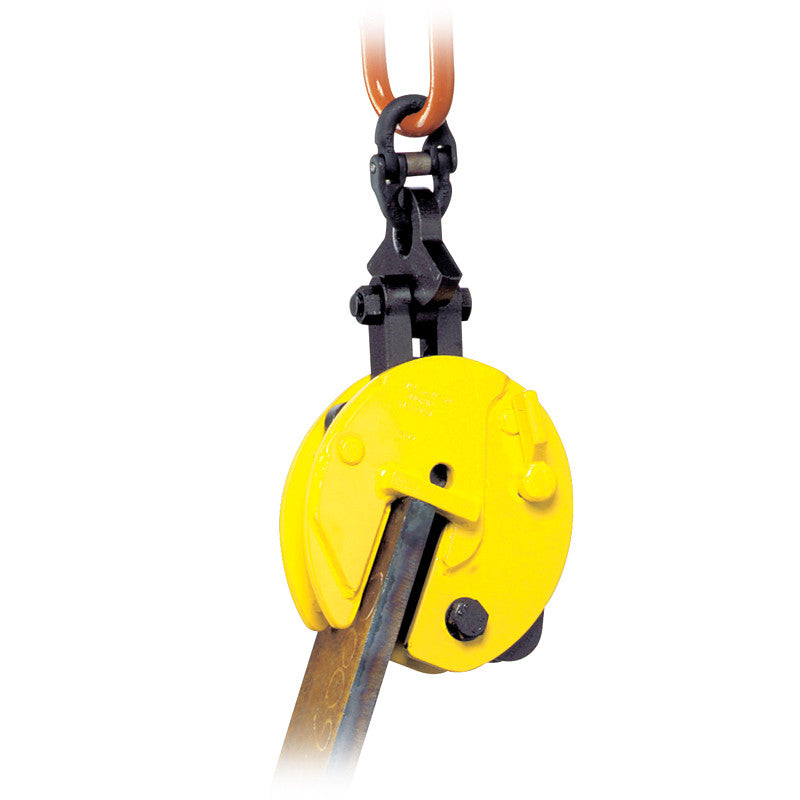

Camlok CX Heavy-Duty Hinged Universal Plate Clamps are a more robust model of the CY Clamp. These products are heavy-duty and feature a reinforced plate at the top of the mouth along with a heavy-duty hook ring. The Camlok CX Clamp is more suitable for turning vertically racked plates.

Used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc)
Lifts plates from horizontal to vertical position and vice versa through 180º
Vertically racked plates can be turned over due to the built-in lifting eye and link
Clamps can be used with 2 leg slings
Chart Note: *Not Stocked
Design factor 4:1

Product Code	Dimensions (in) *									Weight (lbs)
Product Code	A	B	C	D	E	F	G	H	I	Weight (lbs)
CX3000	7.756	20.276	2.638	5.433	0.748	2.677	3.661	3.189	4.331	26.5
CX6000	11.496	29.016	3.74	6.929	1.102	3.74	5.63	5.394	7.402	83.8
CX6000L	14.449	30.906	3.858	7.087	1.102	4.528	5.63	5.315	7.402	105.8
CX8000	11.496	29.016	3.858	6.929	1.102	3.74	5.63	5.354	8.268	86
CX8000L	14.449	30.906	3.858	7.087	1.102	4.528	5.63	5.354	8.268	112.4
CX10000	14.173	35.551	4.331	7.677	1.299	4.921	6.378	6.693	8.78	134.5
CX10000L	17.559	36.26	4.409	7.677	1.299	6.614	6.378	6.693	8.78	167.5

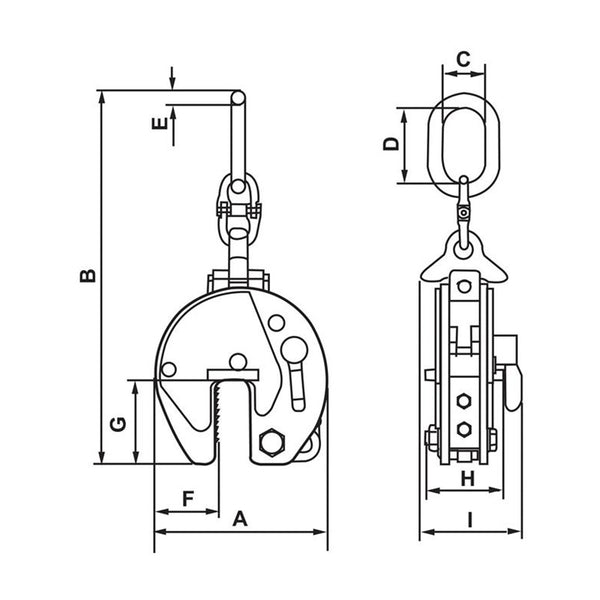

* Refer to product drawing above

Product Code	Working Load Limit		Jaw Capacity (in)
Product Code	Minimum (lbs)	Maximum (lbs)	Jaw Capacity (in)
CX3000	1,000	6,600	0 to 1-1/4
CX6000	2,650	13,200	0 to 2
CX6000L	2,650	13,200	2 to 4
CX8000	3,550	17,600	0 to 2
CX8000L	3,550	17,600	2 to 4
CX10000	4,400	22,000	0 to 2
CX10000L	4,400	22,000	2 to 4
