Camlok™ BTG Groundworks Clamp

Product No. BTG1500/3

Regular price $1,220.40 USD
WLL (PER SET OF 3)
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

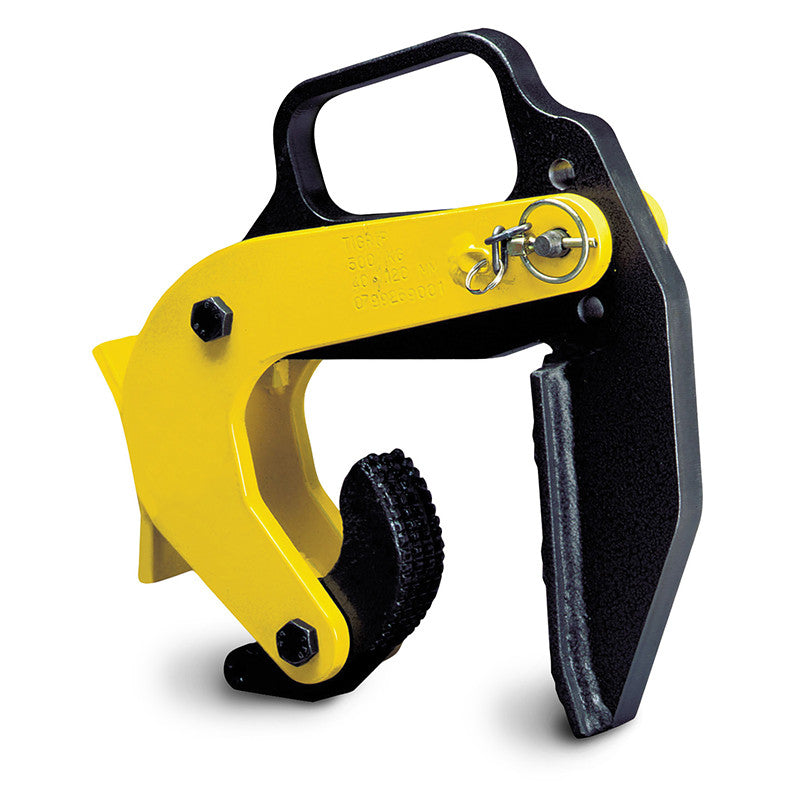

The Camlok BTG Groundworks Clamps are specially designed to lift and handle concrete manhole pipes in the vertical position. BTG Clamps enable the manhole trench size to be minimized and they facilitate accurate positioning of pipes on top of each other.

  • Solid construction and lightweight design
  • Sold in sets of 3
  • Simple handling - Attachment and removal of the clamps from the pipes is extremely easy due to the simple and straight-forward design
  • Large jaw capacity
  • Service friendly
  • Design factor 4:1
Product Code Dimensions (in) * Weight (lbs)
A B C D E F
BTG1500/3 5.315 5.315  0.709 7.087 6.496 3.937 75.0
BTG3000/3 6.890 3.937  1.024 12.205 9.646 6.890 132.3
BTG1500L/3 6.890 3.937  1.024 12.205  9.646  6.890  172.0

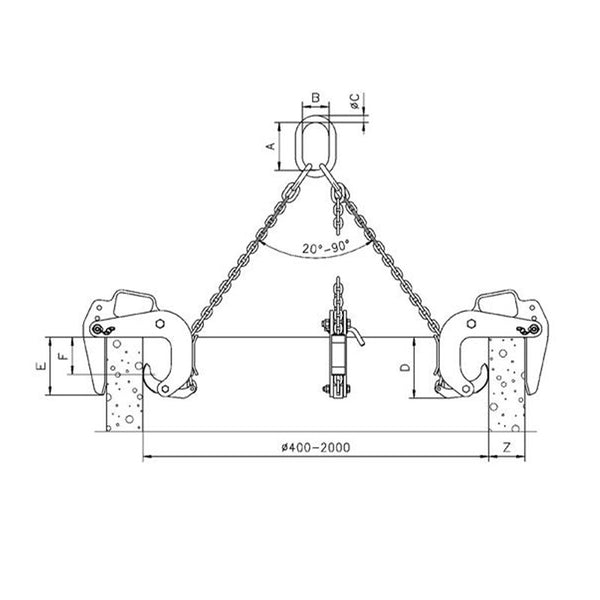

* Refer to product drawing above



Product Code Working Load Limit (lb per set of 3) Jaw Capacity (in.)
BTG1500/3 3,300 1-1/2 to 4-3/4
BTG3000/3 6,600 2 to 7
BTG3000L/3 6,600 3-1/2 to 8-5/8
