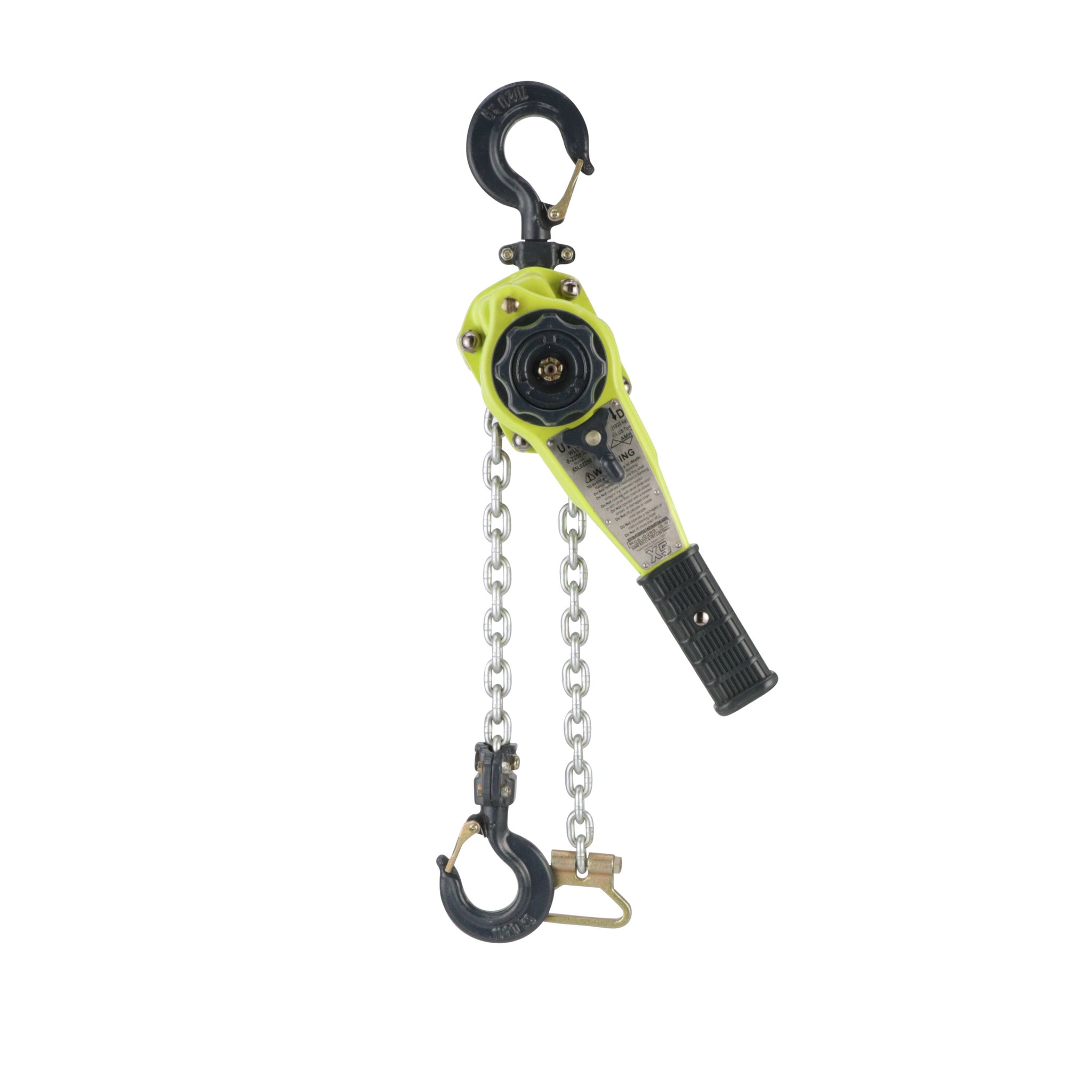

X5L Subsea Lever Hoist 1-1/8 US Ton x 05' Lift to 20' Lift

Product No. X5SL02250-05

Regular price $423.00 USD
LIFTING HEIGHT
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

X5L Subsea Lever Hoist 1-1/8 US Ton x 05' Lift to 20' Lift



The X5L Subsea Lever Hoist 1-1/8 US Ton is a reliable and safe solution for underwater lifting needs. It is specifically designed for subsea applications and meets the UK sub-sea lever hoist standard. The hoist is equipped with a brake that ensures secure and reliable lifting operations, and it is built to resist corrosion. The all-steel body is compact, yet sturdy, and the hoist is powder-coated and plated to resist corrosion. The X5L Subsea Lever Hoist meets OSHA, ASME B30.21 and ASME HST-3 standards, with an ultimate strength that is 5 times the Work Load Limit (WLL). Additionally, it has an APEX rating of ATEX certified II 3GD c IIB 60ºC X for limited use in Hazardous Environments. The final assembly and load test of the hoist is carried out in the USA from imported components, and it is supplied with a certificate by serial number.

  • SubSea Models: The ultimate solution for underwater lifting needs. This model is specifically designed for use in subsea applications and can be submerged underwater with ease.
  • Gasket Sealed Brake System and Meets IMCA D028 Standard: Safety is our top priority and the X5L Subsea Lever Hoist 1-1/8 US Ton is equipped with a brake that is enclosed in a gasket sealed area, along with bolted-in stainless dual springs and pawls, to ensure secure and reliable lifting operations. It meets the IMCA D028 standard, which is the UK sub-sea lever hoist standard.
  • Corrosion-Resistant Materials and Adjustable Chain Stop: The X5L Subsea Lever Hoist 1-1/8 US Ton is built to resist corrosion, with extensive coatings, finishes and materials, ensuring long-lasting durability. It is also fitted with an adjustable chain stop, to meet local codes for use underwater.
  • Brake with No Minimum Preload and Easy Hook Replacement: Other features include brake sets and operation without minimum preload, 100% inspection of hooks per ASME B30, and easy hook replacement is permitted by bolted hook blocks.
  • All Steel Body and Powder Coat and Plated External Parts: The all-steel body is compact, yet sturdy and built to last. Powder-coated and plated external parts resist corrosion and laser-etched stainless steel nameplates display required OSHA/ASME B30 warnings, model, and stamped serial number.
  • Long Life Fused Brake Friction Disc: The long life fused brake friction disc cannot crack, shatter or absorb moisture.
  • Grade 100 Zinc Plated Load Chain: The Grade 100 zinc plated load chain is made in Japan or EU, and the ambient temperature range of the hoist is -40° to +140°F (-40° to +60°C).
  • Meets Various Standards and Requirements: The X5L Subsea Lever Hoist 1-1/8 US Ton meets OSHA, ASME B30.21 and ASME HST-3 standards, with ultimate strength that is 5 times the Work Load Limit (WLL), meeting structural requirements of ASME HST-3 Appendix A, for use in marine and other applications, as specified by US Department of Defense DOD. Additionally, it has an APEX rating of ATEX certified II 3GD c IIB 60ºC X for limited use in Hazardous Environments.
  • Final Assembly and Load Test in the USA: The final assembly and load test is carried out in the USA from imported components, and it is supplied with a certificate by serial number.
  • Open Chain Guard: The open chain guard allows visual inspection and does not trap contamination, ensuring easy maintenance.


Choose the X5L Subsea Lever Hoist 1-1/8 US Ton for reliable and safe underwater lifting operations.



X5L Subsea Lever Hoist 1-1/8 US Ton x 05' Lift to 20' Lift Specifications:

  • Brand: All Material Handling (AMH)
  • Handle Length: 9.6"
  • Hook Opening: 1.1"
  • Load Capacity (in kg): 1,020
  • Minimum Between Hooks: 11.8"
  • Pull to Lift Rated Load (lbs): 52
