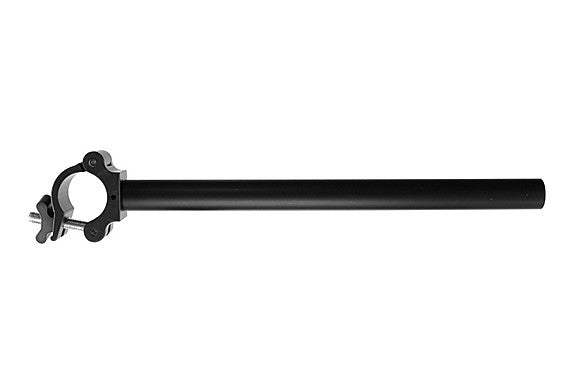

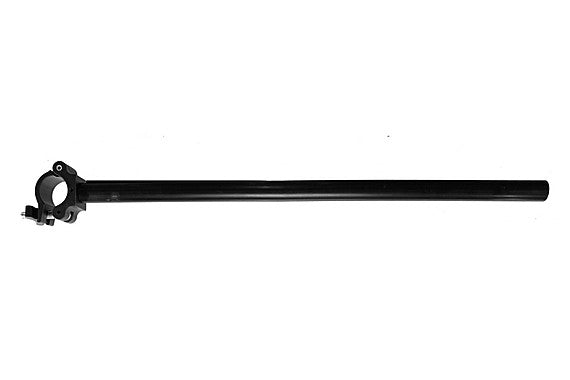

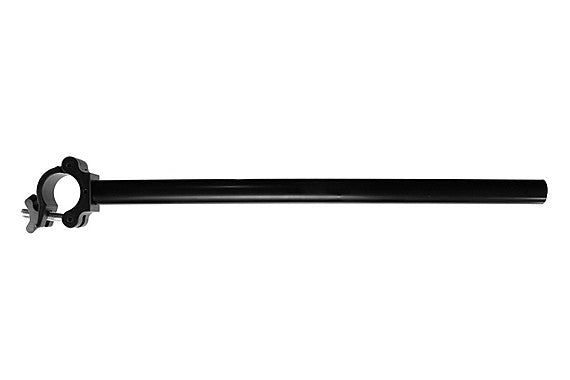

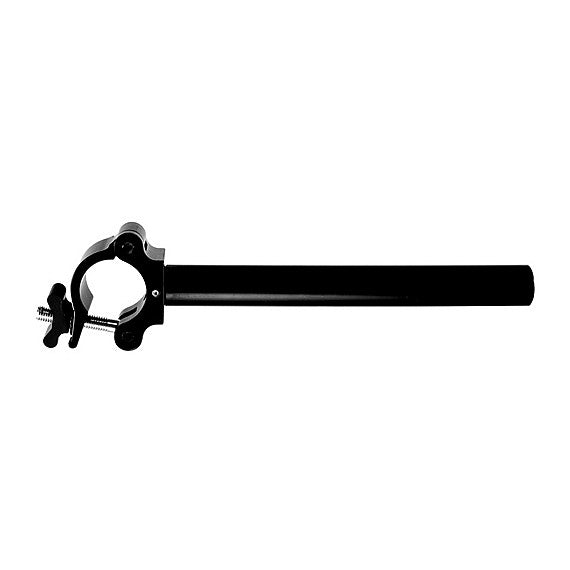

Mega-Sidearm Fixed Length – Heavy-Duty Lighting Support Arm

Precision Rigging with Exceptional Strength

The Mega-Sidearm Fixed Length is a robust and reliable solution for mounting lighting fixtures with maximum stability. Built from high-grade materials and engineered for strength, it’s the go-to sidearm for stage, studio, and production professionals.

Product Features:

• Multiple Lengths Available: Choose from 12", 18", 24", 30", and 36" to suit your rigging needs.

• Strong & Stable Construction: Features a 2" Mega-Coupler pre-attached to a 1.315" OD Schedule 80 aluminum pipe – built for serious loads.

• High Compatibility: Mega-Coupler fits 1-1/4" pipe (1.66" OD), 1-1/2" pipe (1.9" OD), and 2" OD tubing.

• Working Load Limits:

  • 12" – 300 lbs

  • 18" – 200 lbs

  • 24" – 150 lbs

  • 30" – 120 lbs

  • 36" – 100 lbs

• Lightweight Yet Tough:

  • MSAB12 – 1.7 lbs

  • MSAB18 – 2.05 lbs

  • MSAB24 – 2.40 lbs

  • MSAB30 – 2.75 lbs

  • MSAB36 – 3.10 lbs

• Finish Options: Available in Black Anodized or Mill (silver) finish.

Order Codes – Black Anodized color :

• • MSAB12 (12")

  • MSAB18 (18")

  • MSAB24 (24")

  • MSAB30 (30")

  • MSAB36 (36")

Pro Tip: Pair with the Mega-Sidearm Slider (sold separately) for even more precise fixture positioning.

Ideal For:

• Theatrical installations

• Film and TV production

• Touring concerts and events

• Any rig where safe, stable side mounting is required
