TLS Purlin Clamp

PCB1/2

Hardware Size
Finish

To order this product, please contact a member of our team via chat or our enquiry form

Shop Now & Pay Later with Klarna. Learn More➜

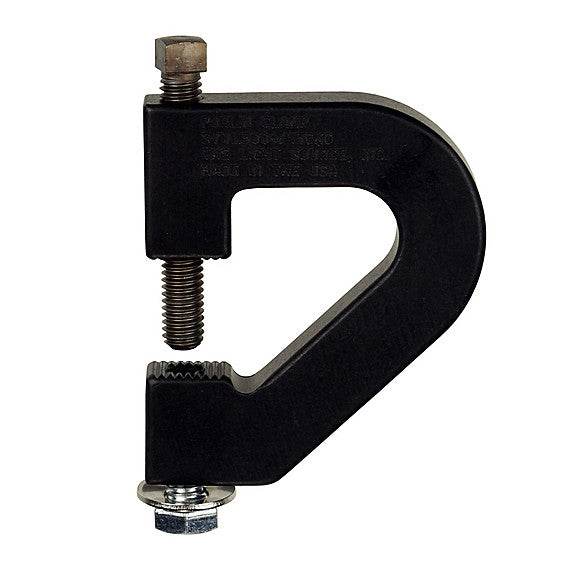

The Purlin Clamp is perfect for installing almost anything to bar joists, purlins and I-beams up to 1" thick. A 1/2"-13 × 2.5″ fully threaded square head set screw is provided for locking onto the structural member. A 1/2"-13 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 1/2"-13 tpi threaded rod to support a load at any length. The Purlin Clamp has Micro-grooves for a secure connection to beam. The 1/2" fastener Purlin Clamp body is extruded from aircraft grade aluminum and is 1" thick.

The Purlin Clamp is also available with 3/8"-16 tpi fasteners. 3/8"-16 tpi x 2.5" fully threaded square head set screw is provided for locking onto the structural member. A 3/8"-16 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 3/8"-16 tpi threaded rod to support a load at any length.

Working Load Limit
500 lbs.for 1/2" and 300 lbs for 3/8"

Hardware
1/2 × 2-1/2" Square Head Set Screw or
3/8 × 2-1/2" Square Head Set Screw
.5 × 1″ Hex Head Cap Screw
1" Belleville Washer

Dimensions
3 3/8″ × 3 7/8"

Weight
0.40 lb.

Case Quantities
each
