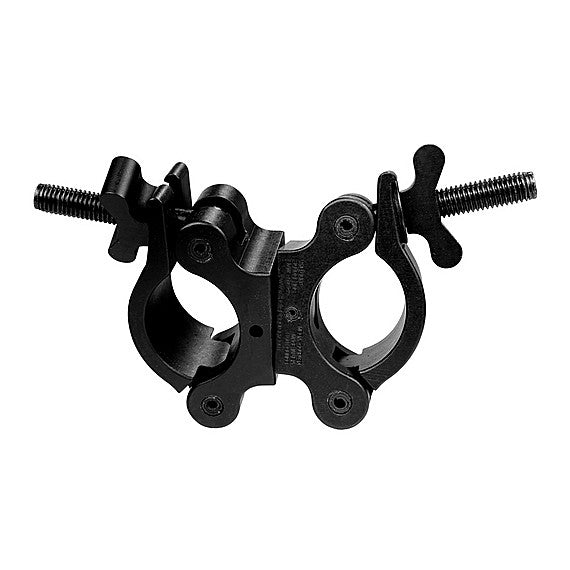

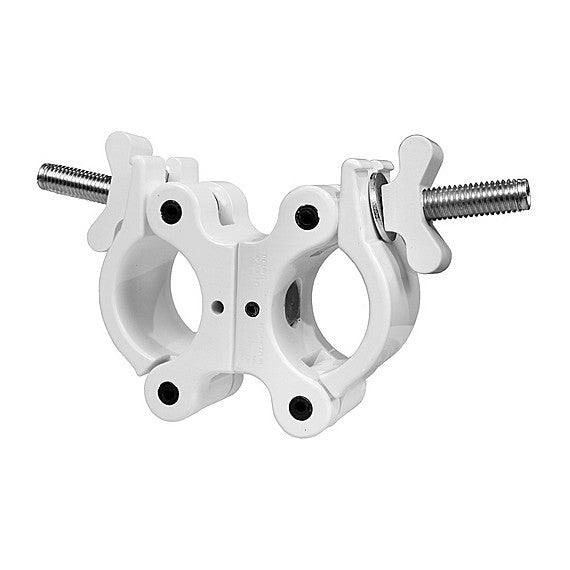

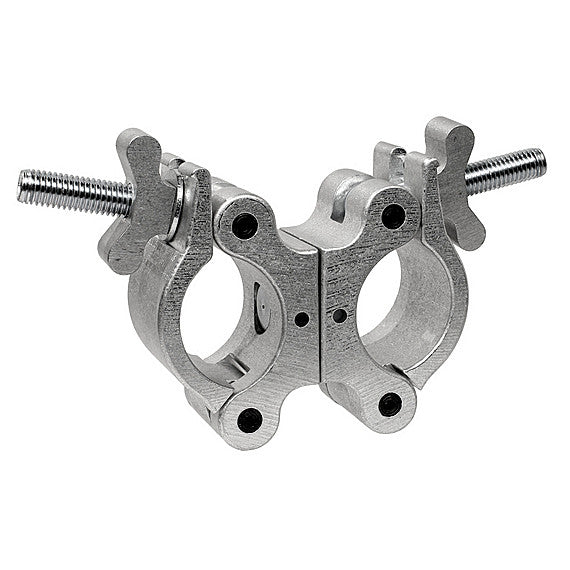

TLS Mega-Coupler, Swivel, (Cheeseboro)

The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has wide wing nuts for fastening the clamp to the pipe or tube.

The Swivel Coupler can be locked into a 90 degree fixed coupler by adding an optional 7/32″ × 2″ spirol pin (see Coupler Spare Parts).

The Swivel Coupler is available with a Steel Wingnut(SW) or Stainless Steel Hardware (SS) option.

Minimum Size
1.25" pipe, 1.66" OD pipe

Maximum Size
1.5" pipe, 1.90" OD pipe, 2" OD truss tube

Working Load Limit
1,100 Pounds 500kg

Weight
2.2 Pounds

Case Quantities
12

What is a Cheeseboro? Cheeseborough clamps aka Cheeseboro, Scaffold Clamps, Couplers, Swivels and even Cheese-burger or Burger Clamps. The name is believed to derive from the Chesebro-Whitman manufacturing company of New York. The devices are used for connecting iron pipes or aluminum tubes. They come in two styles; rigid (aka fixed 90¡) or Swivel.
