Product details

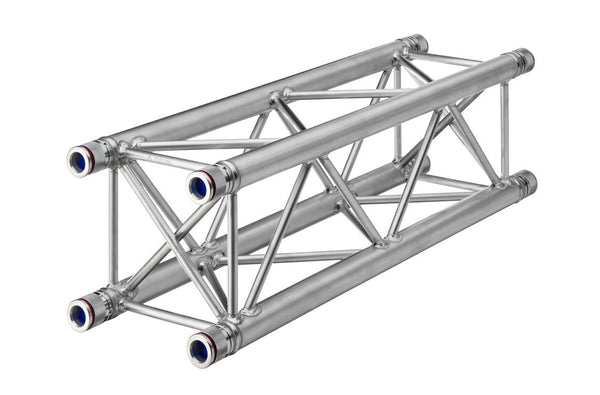

Verto H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diago­nals (16 x 2 mm). Equipped with the Verto coupling system, the Verto H30 truss is fast and easy to assemble. The Verto H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities make it well-loved and much used. H30 truss is available in a square profile and a range Verto Truss Accessories. (Note: Accessories such as couplers and safety clips are not included. Please purchase them separately. )
Prolyte Verto Truss has been used in MTN Trade Show Truss Booth exclusively designed by our in-house engineers to offer a truly all-in-one solution to trade show booth set up. Different structures are available.

IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER

LOADING TABLE
SPAN
 Maximum Uniformly Distributed Load Maximum Centre Point Load
Length (m) Total Weight (kg) Load (kg/m) Deflection (mm) Load (kg/m) Deflection (mm)
3 21.4 647.4 10 1557 8
6 42.6 320.1 41 877.2 33
9 63.9 150.8 92 603.7 74
12 85.2 81.7 164 449.8 131
15 106.5 49.7 256 348.9 205

Download full loading table

Features & Benefits:

  • Incredibly fast connection and disconnection:
    - The Verto truss can be assembled by a simple rotating locking system, securing the truss in seconds, without the need for tools.
    - Tested general assembly times are up to 5 times faster than those for the truss with conical coupling systems and 10 times faster than any bolted truss.
  • Tool-less system: No tools needed for assembly and disassembly
  • Safety indication: When the red ring of the coupling system is still visible, the connection is not (fully) closed. Operators have to turn it more tightly. For secondary safety, Prolyte Verto Safety Clip is available.
  • Work floor safety: Contributed by the silent truss connection
  • No protruding parts: Ideal for attaching banners or drapes
  • Strong and compact: Based on the H30V truss with similar loading capacity
  • Replaceable coupling parts: Prolong the general lifetime of your truss
  • Versatile system: The additional box corners complete the system and create many application possibilities
  • Wide range of Prolyte Verto Truss Accessories: To complete your installation and structure safely and functionally. Note: Verto Truss accessories such as couplers and safety clips are not included. Please purchase them separately.
  • Incorporated dirt-repellent system
  • Verto truss is TUV certified following the new Eurocode regulations
  • Patented by Prolyte

Specifications:

  • Type: VER-H30V

  • Alloy: EN AW 6082 T6

  • Main Tubes (Chords): 2'' x 0.1''

  • Braces: 0.6'' x 0.08''

  • Coupling System: Verto, CrMo4
