Lift Products Inc MJHLSE Electric Skid Lifter
Product No. MJHLSE
Shipping calculator
Payment methods
Product details

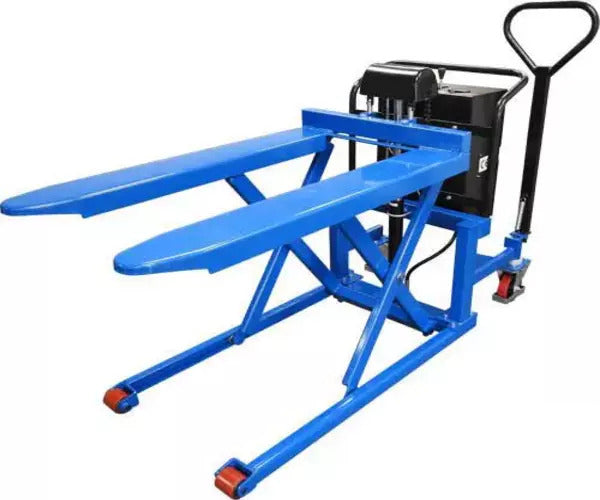

MJHLSE Electric Skid Lifter
Rugged, practical skid lifts from Lift Products are eronomically designed for lifting applications in various locations throughout the work area. Skid lifters are used in factories, warehouses, tool rooms, machine shops...anywhere lifting is required. With the ergonomic design, injuries can be reduced and productivity increased.
Heavy-duty skid lifters offer the stability of a 4-wheel unit. The hydraulic system has the reliability of a simple single stage lift cylinder and the chain over sprocket design features a 2 to 1 lift ratio.
The MJHLSE series features a 12 Volt DC electric motor with an on-board power unit that includes a battery and an external automatic charger that runs on 110 Volt input. Poly wheels and casters with foot brakes are standard. All models are also available with an optional slide on platform that creates a solid work surface.
Standard Features
-
3"ø poly load wheels
-
6"ø poly steer wheels
-
Steer wheels with brakes
-
Beveled forks
-
1" x 2.5" scissor arms
-
Battery discharge indicator
-
BDI on button
-
Removable maintenance cover
-
Ergonomic steer handle
-
Push bar with release lever
-
Clearly decaled operation
-
2 to 1 lifting ration
-
Heavy duty #60H chain pully
-
Socket guard cover
-
Trapped bottom rollers
-
Built-in automatic charger
-
12V 90Ah maintenance free battery
-
UP/DOWN control stick
-
Emergency stop switch
-
Works with open bottom skids
-
Not for use with closed pallets
-
CE certified
Options
- Slide On Platform
- Remote Control
Specifications
| Model | Vertical Travel |
Capacity | Height | Forks | Lift Speed |
Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Down | Up | OD | ID | L | |||||
| MJHLSE-N22 | 29.5" | 2,200 lbs | 3.25" | 32.75" | 20.75" | 8" | 43.5" | 15 sec | 446 lbs |
| MJHLSE-W22 | 29.5" | 2,200 lbs | 3.25" | 32.75" | 27.25" | 14.75" | 43.5" | 15 sec | 477 lbs |
