CM Super Strong Anchor Shackles - Screw Pin

M650P

$8.94

Size/Finish

1/2" Orange Powder Coated

5/8" Orange Powder Coated

5/16" Galvanized

3/8" Galvanized

5/8" Galvanized

Qty

Category: Material Handling, Screw Pin, Shackles / Links

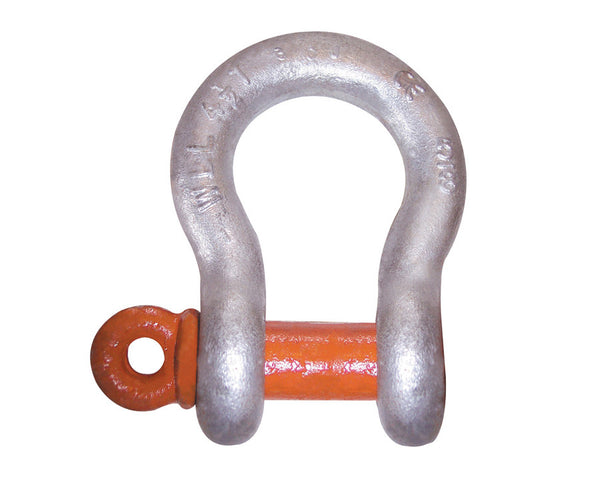

CM’s shackles are world renowned for their strength and design. CM’s Super Strong Anchor Shackles are carbon-type shackles with strength ratings that are 17 – 50% stronger than comparable-sized carbon shackles. These shackles are designed with a 6:1 design factor and can be side-loaded or used for multiple connections. This style has a screw pin and is available with a galvanized or orange powder coated finish. *Photo above may not be exact representation of product

Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility.
Shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Galvanized finish or Orange Powder Coated finish
Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
Special testing and certification is available upon request at the time of the order
Note: Screw pin and bolt/nut/cotter shackles have a 6:1 design factor.

					Dimensions (in.)
Product Code	Size (in.)	Working Load Limit (Ton)	Finish	Weight (lbs.)	P	E	W	R	L	B (min)
M650P	1/2	3	Orange Powder Coated	0.75	0.63	0.70	0.84	1.34	1.94	1.36
M651P	5/8	4-1/2	Orange Powder Coated	1.30	0.75	0.83	1.06	1.66	2.41	1.63
M647G	5/16	1	Galvanized	0.20	0.38	0.45	0.53	0.84	1.25	0.81
M648G	3/8	1-1/2	Galvanized	0.30	0.44	0.52	0.66	1.00	1.40	1.00
M651G	5/8	4-1/2	Galvanized	1.30	0.75	0.83	1.06	1.66	2.41	1.63
