Harrington Hoists
Harrington NER Hoist 3-Phase (1/8 Ton)
Harrington NER Hoist 3-Phase (1/8 Ton)
★ LABOR DAY SALE ★
SEPTEMBER 3–8
$15 OFF
$150+
Use code
LABOR15
$30 OFF
$300+
Use code
LABOR30
$50 OFF
$500+
Use code
LABOR50
Offer valid September 3–8. Discount code must be entered at checkout. Terms and exclusions may apply.
Speed:
Single Speed
Lift:
10'
- "The Guardian" Smart Brake Technology. DC current motor brake with electrical failsafe design, backed by a 10 year warranty.
- Nickel-plated Grade 80 DIN load chain. Corrosion resistant, engineered for enhanced fatigue and wear resistance.
- Die-cast aluminum body, IP55 rated. Completely sealed for indoor and outdoor use in harsh environments.
- UL 1340 listed on most models. Compliant with ANSI/NFPA 70, ANSI/ASME B30.16, and ANSI/ASME HST-1M.
Please enter correct zip code
Harrington NER/ER Electric Hoist - 3 Phase, 1/8 Ton
Harrington's NER/ER electric hoists are engineered to endure even the toughest jobs in the toughest conditions. Quiet operation and minimal vibration lower workplace noise pollution, help reduce worker fatigue, and extend the life of the hoist. This three phase electric chain hoist is built for heavy industrial use across a wide range of applications.
The ER model shares every feature of the NER hoist, plus adds a secondary Weston-style mechanical load brake for an extra layer of braking redundancy.
Key Features
- Capacity range: 1/8 - 5 Ton (this listing: 1/8 Ton)
- Voltage: 208-230/460-3-60 (dual speed models are not reconnectable)
- Die-cast aluminum body, completely sealed for indoor and outdoor use, IP55 rated
- Low headroom design with easy access external pins for quick change from hook to lug on most models
- Heat treated helical and spur gears, precision machined, oil bath lubrication for quiet, smooth, cool operation
- Ultra-strong, high-performance nickel-plated Grade 80 DIN load chain, corrosion resistant with enhanced fatigue and wear resistance
- Forged carbon steel hooks open gradually without fracturing under excessive loads, bottom hook swivels 360°, heavy-duty hook latches top and bottom
- Pendant control with plug-in pendant and power supply cords to save time on setup and maintenance
- Under-the-cover VFD standard on dual speed hoists, 6:1 speed ratio adjustable up to 12:1
- Count hour meter records lowering starts and hoist on time for preventive maintenance, integral to VFD on dual speed models
- Extreme duty motor: 60 minute duty rating, H4 classification, Class B insulation, cooling fins, standard thermal motor protection
- "The Guardian" Smart Brake Technology, DC current motor brake with electrical failsafe design, 10 year warranty
- Totally enclosed fan-cooled (TEFC) motor
- RoHS compliant, built without harmful materials
- Most models UL 1340 listed (contact customer service to confirm listed models)
Technical Data
- Capacity: 1/8 Ton
- Voltage: 208-230/460-3-60
- Classification: ASME H4, ISO M5 or M4, FEM 2m or 1Am
- Load Chain: Nickel-plated Grade 80 DIN chain
- Body: Die-cast aluminum, IP55 rated
- Pendant: IP65 rated, 110V standard control voltage, strain relief wire molded to cord
- Pendant Buttons: Single speed 2-button (momentary); Dual speed 2-button (momentary) with E-stop maintained contacts, standard on all dual speed pendants
- Motor: Totally enclosed fan-cooled (TEFC)
- Brake: "The Guardian" Smart Brake Technology, 10 year warranty
- Operating Conditions: -4°F to +104°F, humidity 85% or less
- Compliance: UL 1340, ANSI/NFPA 70, ANSI/ASME B30.16, ANSI/ASME HST-1M
Explore the full range of Harrington hoists at Harrington Hoists at MTN Shop.
COMPLETE YOUR SETUP
RELATED PRODUCTS
Explore compatible accessories and related products.
Harrington Hoists
Harrington NER Hoist 3-Phase (1.5 Ton)
Harrington Hoists
Harrington NER Hoist 3-Phase (1/2 Ton)
Harrington Hoists
Harrington NER Hoist 3-Phase (1/4 Ton)
Harrington Hoists

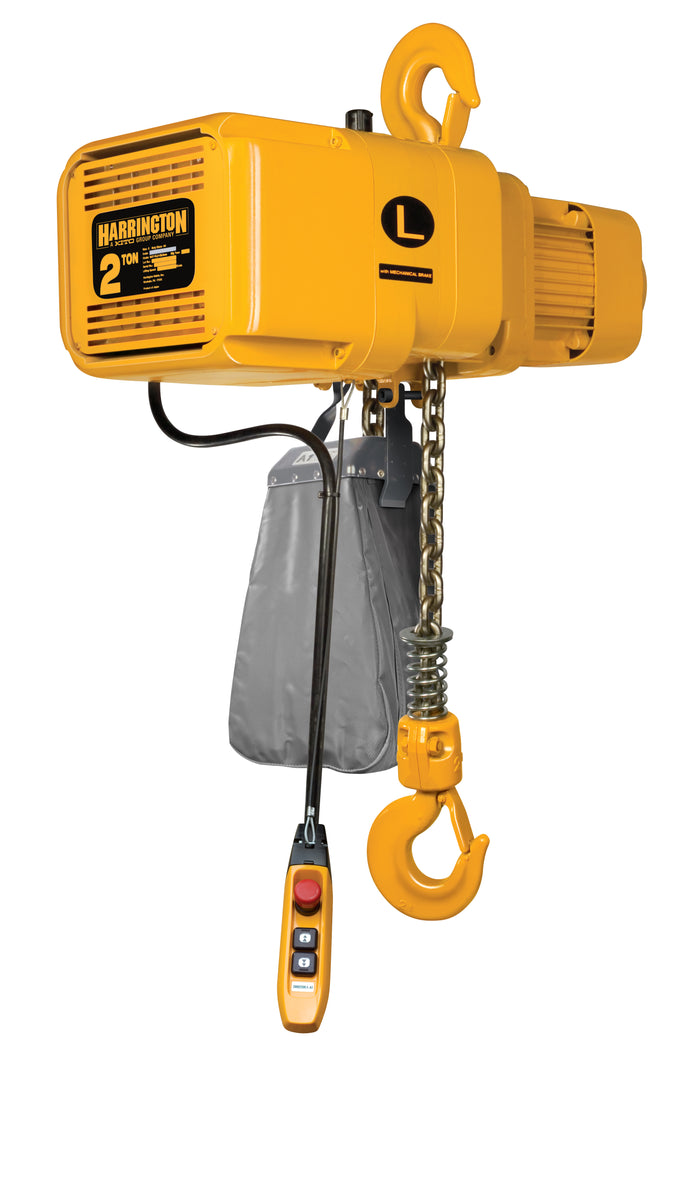

Harrington NER Hoist 3-Phase (2 Ton)
