Harrington NER Hoist 3-Phase (1/4 Ton)

• DESCRIPTION
• VIDEO & RESOURCES

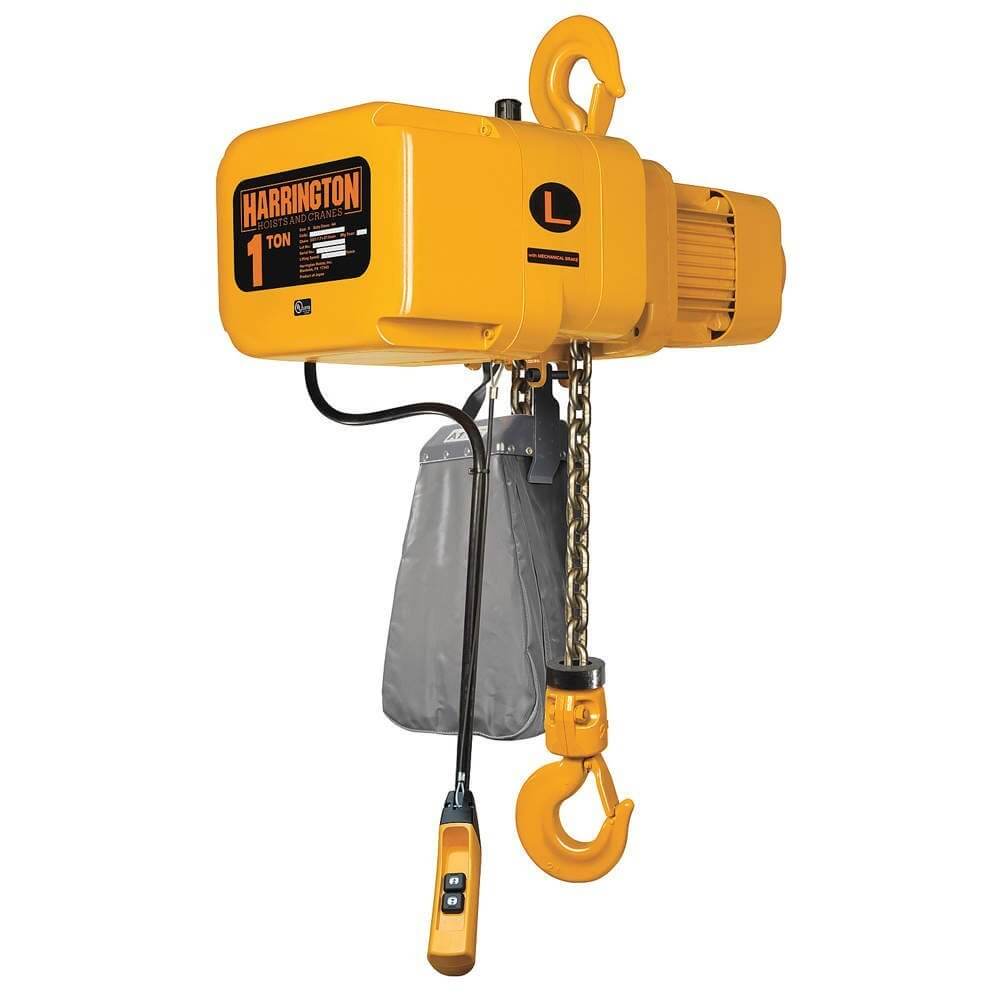

Harrington NER Hoist 3-Phase

Harrington's (N)ER enhanced features three phase electric chain hoists are equipped with the latest technology in the market today. All models include a low-headroom and lightweight body with a fan-cooled motor, standard thermal motor protection and a count hour meter for preventive maintenance.

Simply the best hoists on the market, backed up by a 10-year hoist brake warranty

Features & Benefits

UL® Listed:
Certified & listed to UL 1340 “Standard for Hoists.”

Easy Access Suspension:
External pins allow for quick change from hook to lug for trolley mount configurations on most models.

Extended Chain Life:
Decreased chain wear as a result of a revolutionary heat treatment process, improved material and chain size.

Grade 80 Nickel-plated Load Chain:
High Strength, Corrosion and Wear Resistant Load Chain

Environmentally Friendly. RoHS Compliant.
Built Smarter Without the Use of Harmful Materials

Product Part Features

 Specifications and Applications

Capacities: 1/4 Ton

Voltages@ 208-230/460-3-60

Lifting Speed:
Single Speed: 36 or 53 ft/min;
Double Speed: 36/6 or 53/9 ft/min

Standard Lift: 10'

Net Weight: 60-79 lbs

Standard: ASME H4 classification

Mounting: Hook, lug or trolley

Applications: Indoor and outdoor applications including harsh environments.

Product Demonstration Video

• Product Brochure
• User Manual
