Harken R27 Long-Span Access Rail Bracket - Ω

Harken R27 Long-Span Access Rail Bracket - Ω

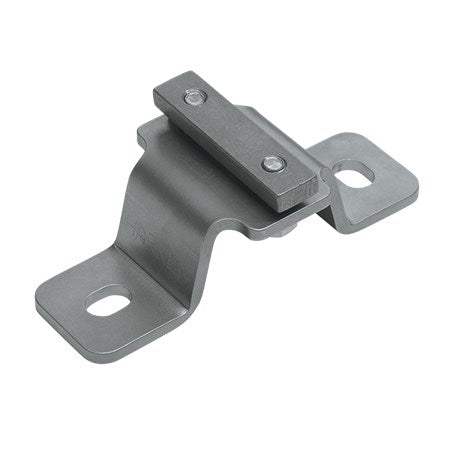

The Harken R27 Long-Span Access Rail Bracket - Ω, a game-changer in your installation arsenal. Crafted for durability, these sandblasted AISI-304 stainless steel brackets boast a low-profile design, perfectly complementing various surfaces.

Harken R27 Long-Span Access Rail Bracket - Ω Specification:

• Length:
• (mm) 80 mm
• (in) 3 1/7 in
• Width:
• (mm) 165 mm
• (in) 6 1/2 in
• Height:
• (mm) 46 mm
• (in) 1 4/5 in
• Weight:
• (lb) 1.59 lb
• (oz) 25.40 oz
• (kg) 0.72 kg
• Material: Stainless steel
• Includes:
• 1 bracket
• 1 double-hole insert
• 2 screws
• 2 washers
• Use with track/rail: INR27.LS
• Fasteners:
• (mm) M10 - M12 mm
• (in) 3/8 - 7/16 in

Certification:

For installations between 0° to 15° relative to the horizontal plane using the R27LS (INR27.LS) rail, brackets (INBRKT.1, INBRKT.2, INBRKT.3, INBRKT.4, INBRKT.AL), connectors (INLINK.LS, INLINK.AL, INPIN.LS, INMID-ENTRY1.LS, INMID-ENTRY3.LS), and turntables (INTURN1.LS, INTURN2.LS), along with terminals, adhere to the standards set by EN 795:2012 class D and CEN/TS16415:2013 and UNI11578:2015.

For angles from 16° to 74° relative to the horizontal plane, the R27LS (INR27.LS) rail and bracket (INBRKT.1) meet PPE-R/11.116(v2) requirements.

For angles between 75° and 90° relative to the horizontal plane, the R27LS (INR27.LS) rail and bracket (INBRKT.STEP) are certified EN 353-1:2014+A1:2017.
