WALL BRACKETS - DOUGHTY ENGINEERING

Steel bracketry designed primarily to be wall-mounted, allowing fixtures and tubes to be suspended from a vertical surface. The brackets are widely used for venues, concerts, and stages.

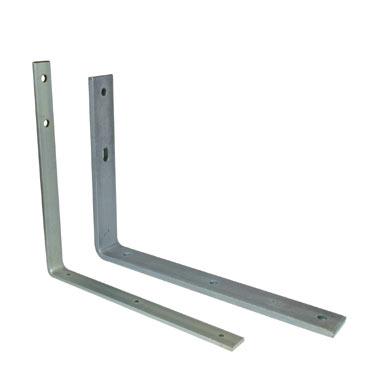

A choice of two wall brackets with mounting holes.

The light-duty bracket is drilled to accept a 2'' 'U' bolt (T56600). The heavy-duty bracket is drilled and slotted to accept a Saddle Clamp (T30800). For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Designed for secure wall-mounting of fixtures and tubes
• Ideal for use in concerts, stages, and venue installations
• Available in light-duty and heavy-duty versions
• Light-duty accepts 2'' 'U' bolt (T56600)
• Heavy-duty accepts Saddle Clamp (T30800)

Specifications:

• Wall Bracket (Light-Duty): 11.8'' x 15.9'' & 6.6 lbs & 1.9 lbs
• Wall Bracket (Heavy-Duty): 12.8'' x 12.8'' & 44 lbs & 5.7 lbs

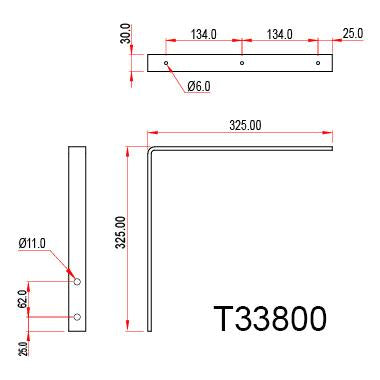

• Fixing Holes: See the images

References:

• Doughty Engineering is a UK-based manufacturer established in 1985
• Specializes in rigging, suspension, and lifting equipment for entertainment industries
• Member of PLASA and ESTA, adhering to strict safety and quality standards
