Doughty Parallel Coupler (35mm Atom Clamp), (Cheeseboro)

Doughty Parallel Coupler (35mm Atom Clamp), (Cheeseboro)

Consists of a pair of high tensile extruded aluminium clamps back to back, locked parallel that are suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction for strength and durability
• Designed for 35mm (1.38″) diameter tubes
• Parallel locking configuration with back-to-back clamps
• Clamp width of 30mm (1.18″) ensures secure fit without damaging cords

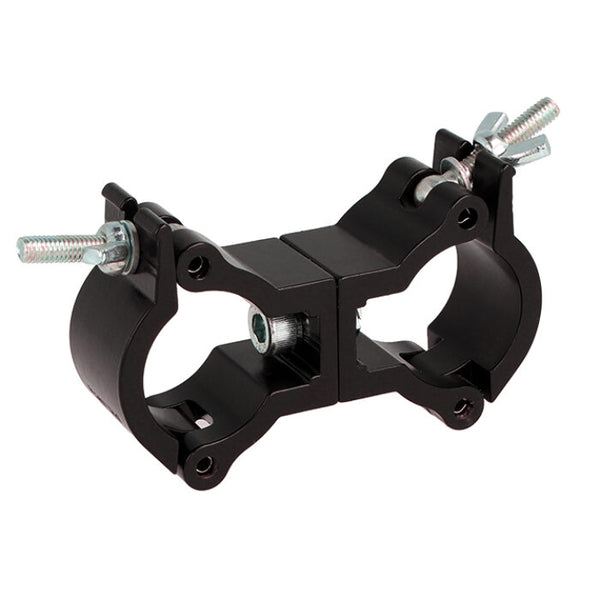

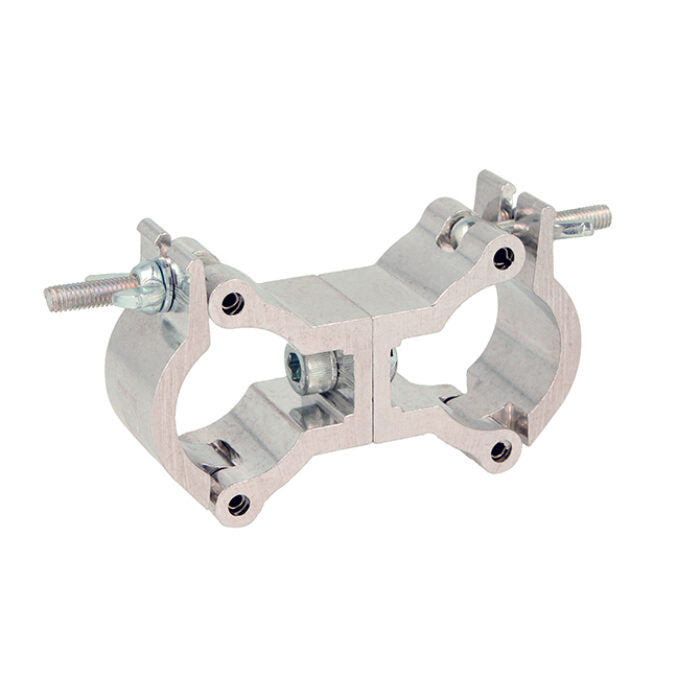

• Available in polished silver or powder coated black finish

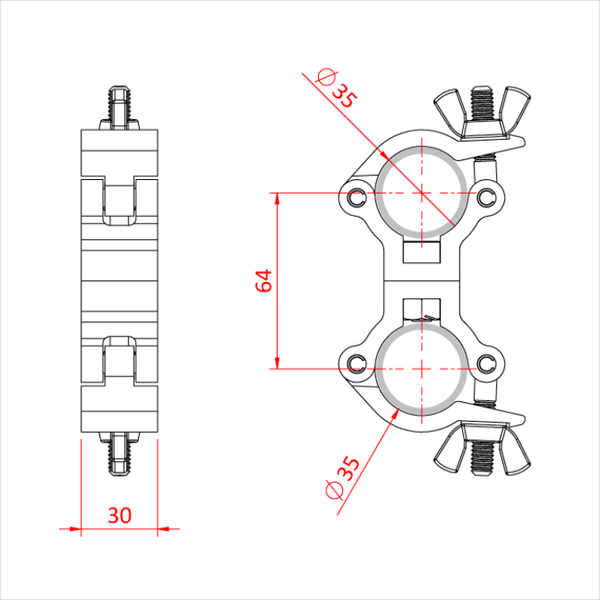

Specifications:

• WLL: 100Kg
• Tube Diameter: 35mm (1.38")
• Clamp Width: 30mm (1.18")
• Tube Centres: 64mm (2.52")
• Material: High tensile extruded aluminium

References:

• Doughty T58910-T5891001 Product Range
• Ideal for decorative and non-load bearing trussing
• Trusted by professionals in theatre, events, and exhibitions
