Doughty Swivel Coupler - Atom Clamp, (Cheeseboro)

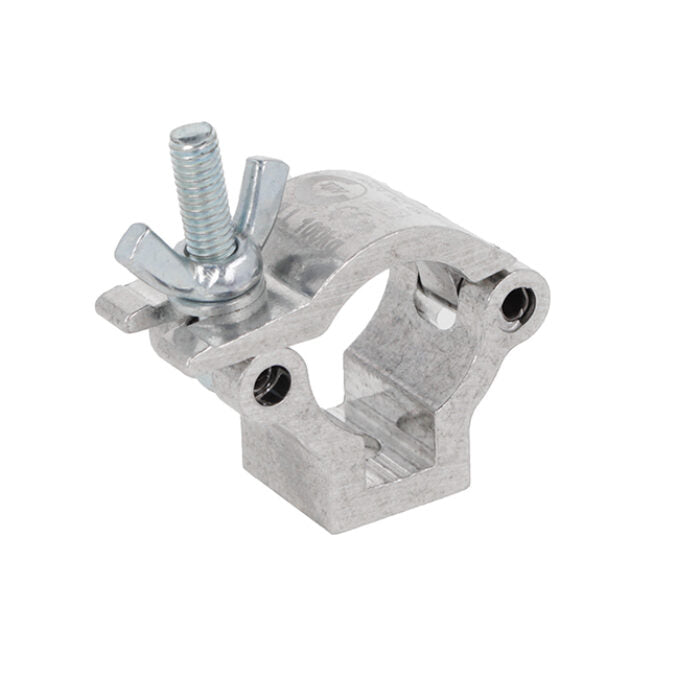

Consists of a pair of high tensile extruded aluminium clamps back to back and designed to swivel that are suitable for 25mm (1″) diameter tubes.
It has a WLL of 100Kg and uses a pair of 21mm (0.83″) wide clamps. Ideal for decorative trussing as it will not damage the cords.

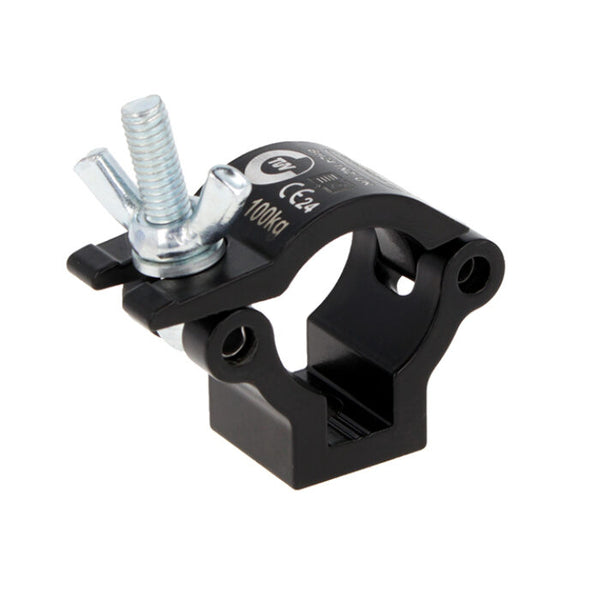

Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Swivel design for increased flexibility
- Compatible with 25mm (1″) diameter tubes
- Polished silver or powder coated black finish options
- Ideal for decorative trussing applications

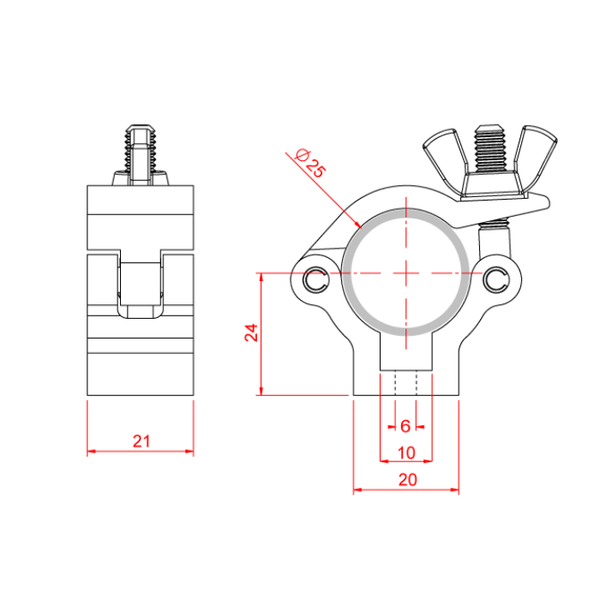

Specifications:
- WLL: 100Kg
- Tube Diameter: 1" - 25mm
- Clamp Width: 21mm (0.83")
- Construction: High tensile extruded aluminium
- Design: Back-to-back swivel clamps
