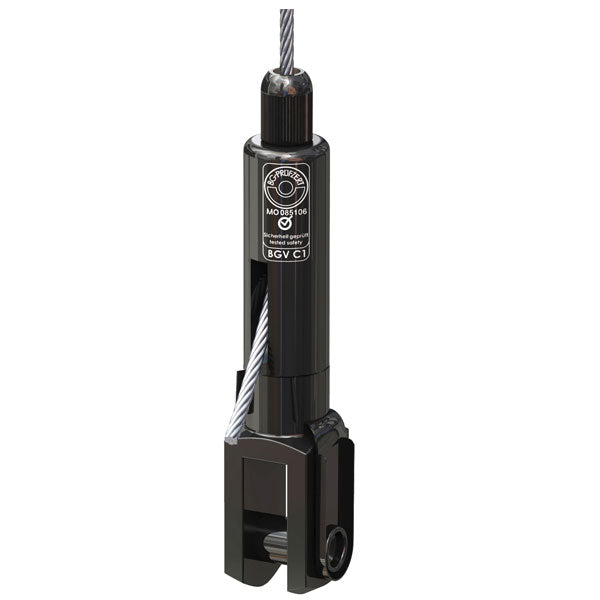

Griplock - Grip for 3/16" cable (Side Exit)

Grip for 3/16" Cable

The Griplock® Cable Grippers are unique, self-locking, completely adjustable devices. They require no tools to adjust; up or down, down or up – as often as you like.

Made in Germany by Reutlinger GmbH. TUV tested & approved.

Technical Drawing

Features:

• Side Exit Gripper with Fork Attachment.
• Black zinc-plated.
• 6-ball mechanism.
• Safety nut.
• 0.55″ (14mm) clevis width.
• Locking pin at 28mm on centre
• For use with 3/16” 7×19 aircraft cable only.

Specifications:

• FOR CABLE DIAMETERS: 3/16"
• OPENING: 14mm
• SWL OF GALV. CABLE: 500 lbs
• SWL OF STAINLESS CABLE: 444 lbs
• STYLE: Forks / Clevis
• CABLE EXIT: Side Exit
• RELEASE: Standard Release
• COLOR: Black
• FINISH: Zinc-plated
