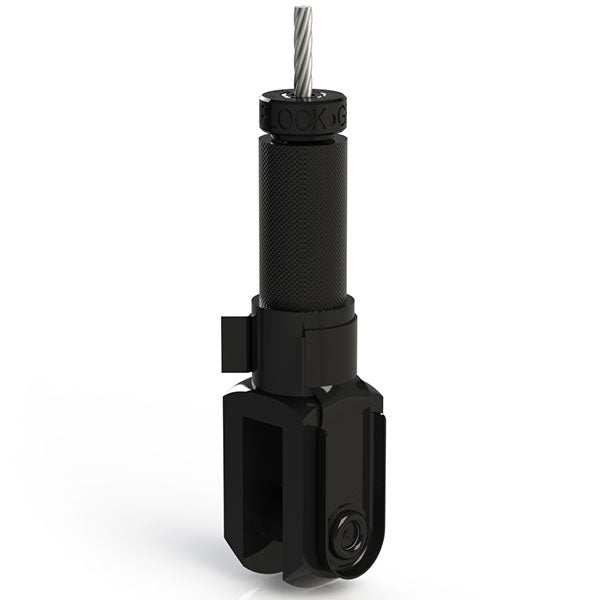

Griplock - Black Grip for 3/32" & 1/8" cable with Locking Pin

Grip for 3/32" & 1/8" Cable

The Griplock® Cable Grippers are unique, self-locking, completely adjustable devices. They require no tools to adjust; up or down, down or up – as often as you like.

Made in Germany by Reutlinger GmbH. TUV tested & approved.

Technical Drawing

Features:

• Fork Gripper with locking pin (at 20mm on center)
• 6-ball mechanism.
• For use with 3/32” – 1/8” 7×7 or 7×19 aircraft cable only.

Specifications:

• CABLE DIAMETERS: 3/32", 1/8"
• OPENING: 10mm
• SAFE WORKING LOAD GALV. CABLE: 126 lbs, 215 lbs
• SAFE WORKING LOAD STAINLESS CABLE: 110 lbs, 225 lbs
• STYLE: Forks / Clevis
• CABLE EXIT: Bottom Exit
• RELEASE: Standard Release
• COLOR: Black
• FINISH: Zinc-plated
