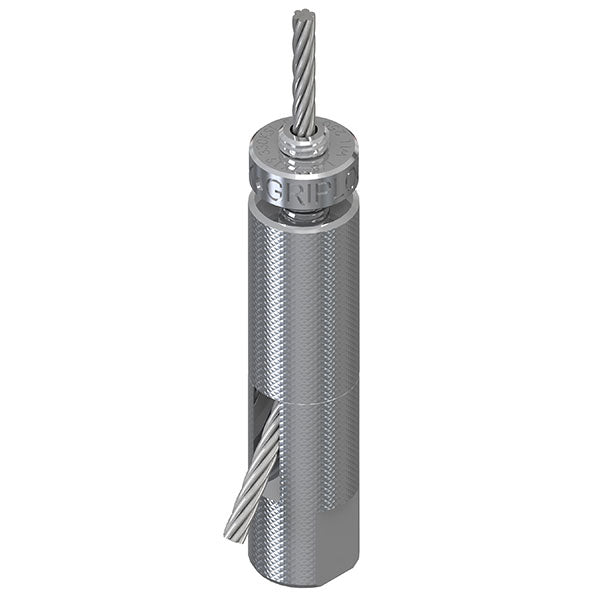

Griplock - Grip for 3/32" & 1/8" Cable (Side Exit)

Grip for 3/32" & 1/8" cable

The Griplock® Cable Grippers are unique, self-locking, completely adjustable devices. They require no tools to adjust; up or down, down or up – as often as you like.

Made in Germany by Reutlinger GmbH. TUV tested & approved.

Technical Drawing

Features:

• Side cable exit Gripper.
• 1/4-20 internal thread.
• 6-ball mechanism.
• Safety nut.
• For use with 3/32” – 1/8” 7 x 7 or 7 x 19 aircraft cable only.

Specifications:

• FOR CABLE DIAMETERS: 3/32", 1/8"
• SWL OF GALV. CABLE:126 lbs, 250 lbs
• SWL OF STAINLESS CABLE: 110 lbs, 225 lbs
• STYLE: Threaded
• THREAD SIZE: 1/4-20 UNC
• CABLE EXIT: Side Exit
• RELEASE: Standard Release
• COLOR: Silver
• FINISH: Bright nickel-plated
