Zyter Thermal Alert

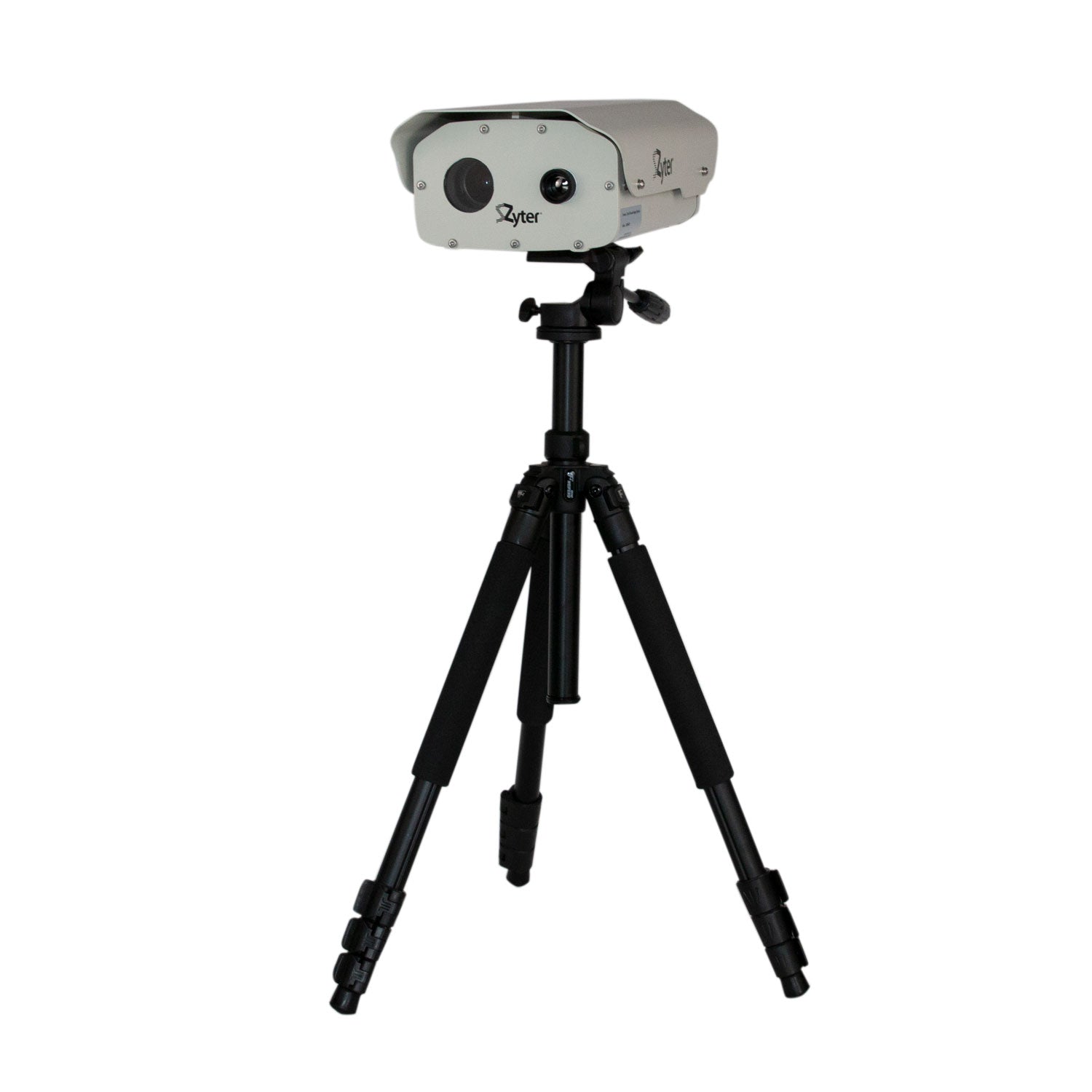

Zyter Thermal Alert - Identify people with elevated body temperatures

To help gain visitors, customers and employees confidence back, Zyter Thermal Alert is a dual spectrum thermal imaging solution that delivers continuous, real-time, no-contact temperature tracking. It enables you to redirect those with elevated body temperatures to a different entrance.

NOTE: Please follow State and Federal guidelines and Mountain Productions Inc. bears no liability or warranty obligations on the purchase or usage of this product. Any warranty obligations are the responsibility of the manufacture. Reference: Thermal Imaging Systems (Infrared Thermographic Systems / Thermal Imaging Cameras)

Please contact a member of our team via chat or email (info@shopmtn.com), or give us a call at +1 888-408-4132 for technical assistance or product inquiries.

What Zyter Offers:

• High-accuracy thermal imaging: Ability to measure the human body temperature of multiple people simultaneously through non-contact monitoring

• Crowd detection and distance: Able to detect multiple individuals (up to 6) within the temperature detection zone from a distance of 20 feet away

• Multiple setup options: Include standalone, central or drive-through detection modes (including the ability to connect to customer’s network)

• Valuable user experience: Smart alerts on monitor, mobile and web – Highly customizable with optical, thermal images and body temperature

• Military Grade Security: Device-to-device 256 bit AES encrypted. HIPAA, FedRAMP and FISMA compliant DoD / VA Authority to Operate

Case Studies : An American department store chain - A leading clinical research center - More…

Why Choose Zyter Thermal Alert:

• Quick, High-accuracy and Non-contact:
  - Detect multiple people simultaneously with detection time <1 s.
  - High-resolution infrared imaging accurately pinpoints people with an abnormal body temperature
  - Infrared non-contact temperature measurement with high precision reduces the risk of cross-infection

• Smart System:
  - Intelligent algorithm for the visible and thermal imaging camera system, face detection with accurate temperature measurement.
  - Automatic real-time alarms and customizable threshold temperature for abnormal body temperature
  - IP enabled cameras to distribute live feeds via the internal network

• Easy Deployment:
  - Easily capture and track temperatures
  - Camera & PC constitutes a small temperature measurement station, supporting offline and online deployment.

• Live Tracking:
  - 24/7 real-time rapid body temperature screening.

• Adaptability:
  - Tripods and wall mounts are included for floor and wall mounting.
  - Adaptable to small facilities such as entrances, stores, set up options such as walls and posts and more.

• Live Currently at a Military Treatment Facility and More:
  - Federal
  - Commercial Healthcare
  - Events & Entertainment
  - Transportation

Specifications:

1. Product Performance

• Measurement range: 86 degrees F to 113 degrees F
• Accuracy: ≤ ± 0.5 Fahrenheit
• Network protocol: Support HTTP; TCP; RTSP; RTP; UDP; RTCP; support ONVIF 28181
• Power supply: DC12V

2. Visible Camera System

• Image Sensor: 1/2.8” 2MP CMOS
• Resolution: 1920*1080
• Min. Illumination: Color: 0.005Lux; B/W: 0.0005Lux; 0Lux (IR on)

3. Thermal Camera System

• Resolution: 320*240
• Spectral range: 8μm 14μ
• NETD: ≤ 50mK@77 F, F#1.0
• Focal Length: 12mm/20mm a thermal lens

4. Environments

• Working temperature: -40°F to approximately 149°F
• Humidity: ≤ 95%
• Ingress Protection: lP66, Anti-lighting TVS 6000V, Surge protection

Zyter Credibility

• The communication platform underpinning Zyter processes over 500 billion messages a year
• Authority to operate (ATO) at DoD and VA
• Contract awarded to expand Zyter platform to 16 US Military Hospitals based on superior performance
• Zyter prescreening and virtual care for the current pandemic containment (DHA approval in place for Gov cloud deployment)
• Case studies: An American department store chain, A leading clinical research center, More…
