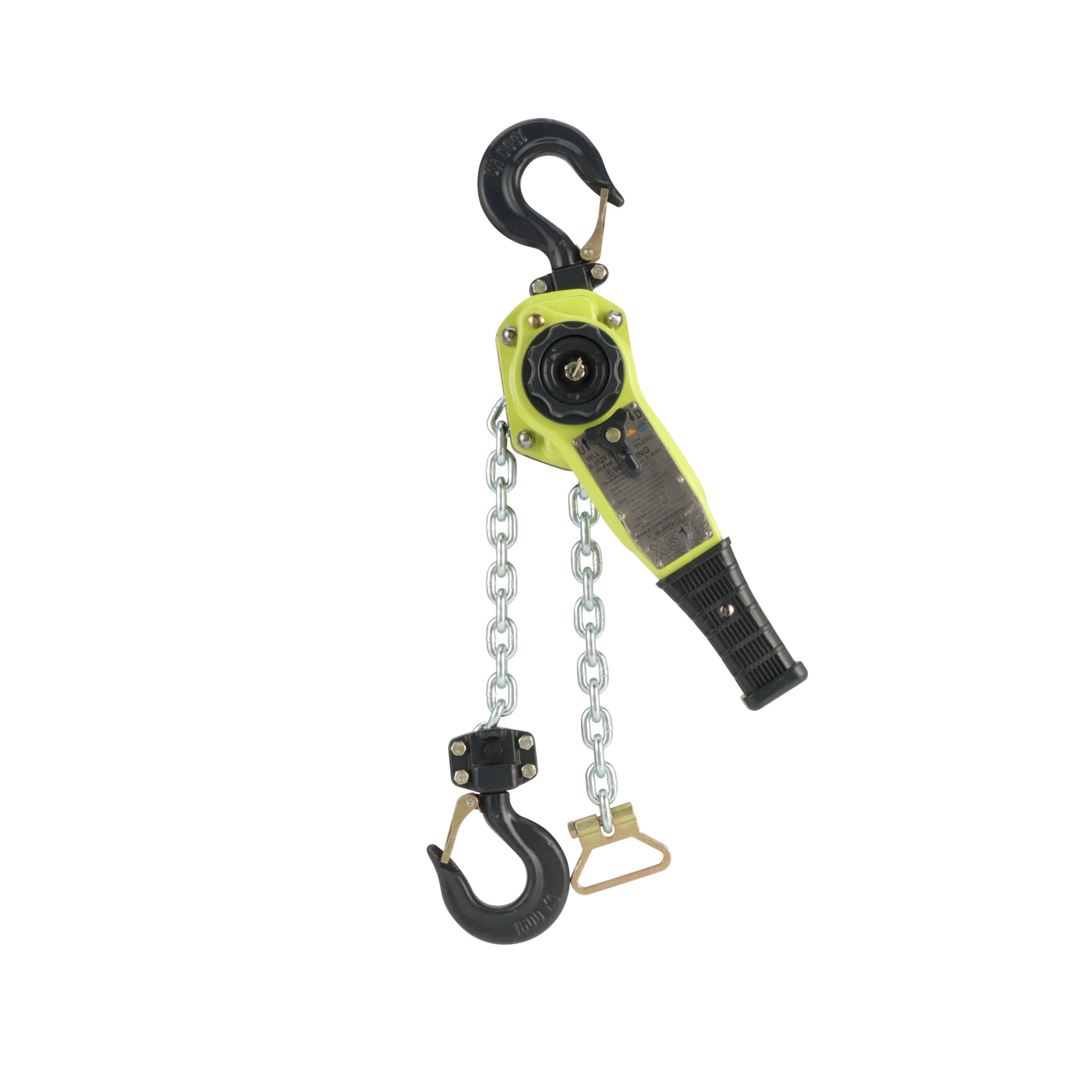

X5L Lever Hoist 1-3/4 US Ton x 05' Lift to 20' Lift

X5L Lever Hoist 1-3/4 US Ton x 05' Lift to 20' Lift

The X5L Lever Hoist 1-3/4 US Ton is a powerful and reliable tool for heavy-duty lifting and positioning needs. It has a lifting capacity of 1-3/4 US ton and a lift range of 05' to 20'. Its brake system operates without minimum preload, and bolted hook blocks allow for easy replacement. The all-steel body with a powder coat and plated external parts provides durability and resistance to corrosion. Safety features include laser-etched stainless steel nameplates, long-life fused brake friction discs, and Grade 100 zinc plated load chains. The lever hoist also meets safety standards, has optional overload protection, and is certified for hazardous environments. It is assembled and tested in the USA and comes with an open chain guard for easy visual inspection and maintenance.

• Powerful and Reliable Lifting and Positioning Tool: A reliable and powerful lifting and positioning tool for all your material handling needs. With a lifting capacity of 1-3/4 US ton and a lift range of 05' to 20', this lever hoist is perfect for heavy-duty jobs.
• Brake System Operates Without Minimum Preload: One of the standout features of the X5L Lever Hoist is its brake system, which is designed to operate without minimum preload, making it easy and safe to lift and position heavy loads.
• Bolted Hook Blocks for Easy Hook Replacement: The bolted hook blocks allow for easy hook replacement, while the 100% inspection of hooks per ASME B30 ensures safe operation.
• All-Steel Body for Durability and Strength: Constructed with an all-steel body, the X5L Lever Hoist offers durability and strength in a smaller size.
• Corrosion-Resistant Powder Coat and Plated External Parts: The powder coat and plated external parts provide resistance against corrosion, ensuring the lever hoist lasts for years to come.
• Laser-Etched Stainless Steel Nameplates with Required Warnings: Safety is a top priority, which is why the X5L Lever Hoist includes laser-etched stainless steel nameplates with all the required OSHA/ASME B30 warnings, model, and stamped serial number.
• Long-Life Fused Brake Friction Disc for Safe Operation: The long-life fused brake friction disc cannot crack, shatter, or absorb moisture, ensuring reliable and safe operation.
• Grade 100 Zinc Plated Load Chain for Exceptional Strength: The Grade 100 zinc plated load chain, made in Japan or EU, provides exceptional strength and reliability.
• Optional Overload Protection for Added Safety: For added safety, the X5L Lever Hoist comes with optional overload protection by a one-directional slip clutch that only slips in the lift direction.
• Wide Temperature Range for Versatile Use: It has an ambient temperature range of -40° to +140°F (-40° to +60°C), making it suitable for use in various conditions.
• Meets OSHA, ASME B30.21 and ASME HST-3 Standards: The X5L Lever Hoist meets OSHA, ASME B30.21, and ASME HST-3 standards, with an ultimate strength of 5 times the Work Load Limit (WLL), meeting the structural requirements of ASME HST-3 Appendix A.
• Suitable for Marine and Other Applications Specified by DOD: It is suitable for marine and other applications as specified by the US Department of Defense DOD. Additionally, it has an APEX rating and is ATEX certified II 3GD c IIB 60ºC X for limited use in hazardous environments.
• Final Assembled and Load-Tested in the USA: The X5L Lever Hoist is final assembled and load-tested in the USA from imported components, ensuring the highest quality standards. And with the included certificate by serial number, you can trust that you're getting a reliable and safe product.
• Open Chain Guard for Easy Visual Inspection and Maintenance: The open chain guard allows for easy visual inspection and doesn't trap any contaminants, making maintenance a breeze.

Overall, the X5L Lever Hoist 1-3/4 US Ton is a durable and reliable solution for all your material handling needs.

X5L Lever Hoist 1-3/4 US Ton x 05' Lift to 20' Lift Specifications:

• Brand: All Material Handling (AMH)
• Handle Length: 10.4"
• Hook Opening: 1.2"
• Load Capacity (in kg): 1,600
• Minimum Between Hooks: 13.2"
• Pull to Lift Rated Load (lbs): 72
