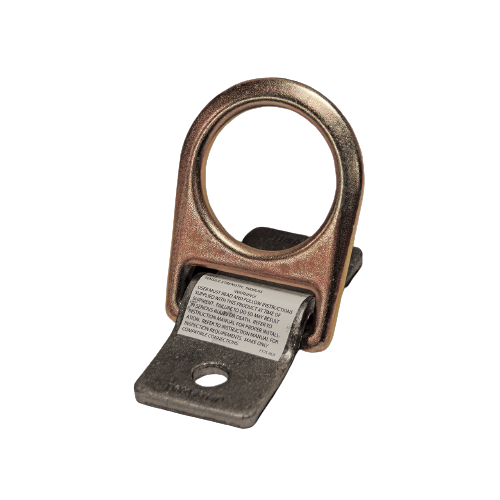

Weld-on D-ring Anchor with Unplated Installation Plate

Product No. 7414P

Regular price $29.31 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

Weld-on D-ring Anchor with Unplated Installation Plate


FEATURES

  • Features 2" x 4-1/2" unplated alloy steel anchoring plate and plated steel D-ring
  • Plain steel anchoring plate is ideally suited for permanent weld-on installation.
  • 1/2" holes also provided for bolt-on fixed position installation
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

Installation Plate:             Unplated alloy steel
D-ring:                                 Plated alloy; 5,000 lb min. static strength

Static Strength:                       5,000 lb min.
ANSI User Capacity:               130 to 310 lb max.
OSHA User Capacity:             130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
