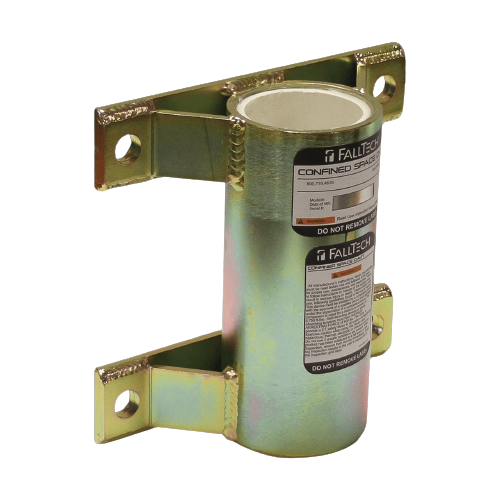

Wall-mount Plated Steel Bolt-on Fixed Davit Base

Product No. 65070WMZ

Regular price $513.19 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

Wall-mount Plated Steel Bolt-on Fixed Davit Base


FEATURES

  • Permanently installed davit base solution for is ideally suited for recurrent access locations
  • Bolt-on design for existing steel and concrete installation.
  • 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
  • Plated steel construction throughout; also available in stainless steel
  • User-supplied fasteners required for installation
  • Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

MATERIAL  SPECIFICATIONS

Davit Base:                      Plated carbon steel
Sleeve Insert:                  PVC pipe

PERFORMANCE  SPECIFICATIONS

Rated Capacity:                             620 lb at minimum 4:1 design factor
Mast Moment Proof Load:          6,167 ft. lb
Mast Rotation:                               360°

DOWNLOADS

Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure

COMPLIANT  WITH:

OSHA 1926.502 and 1910.66 when used in a complete system
