• Restraint Body Belt

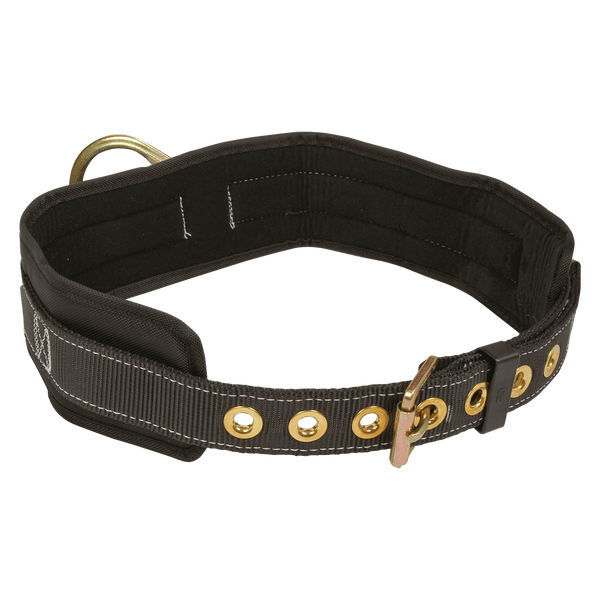

Standard 1D Restraint Body Belt

Product No. 7090L

Regular price $54.25 USD
SIZE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

Standard 1D Restraint Body Belt

  • Features 4" x 25" bonded waist support positioning pad with tricot lining and PU foam construction
  • Ideally suited for addition to non-belted full body harnesses.
  • Includes plated alloy steel D-ring and belt buckle with brass grommets
  • Fixed-position non-removable belt features 7 adjustment positions providing a 9" range of fit
  • Complies with ANSI Z359.11-2014

MATERIAL  SPECIFICATIONS

Webbing:                           Polyester; 5,000 lb min. static strength
D-rings:                              Plated alloy steel; 5,000 lb min. static strength
Buckle:                                Plated alloy steel; 3,372 lb min. static strength

PERFORMANCE  SPECIFICATIONS

ANSI User Capacity:                          130 to 310 lb max.
OSHA User Capacity:                         130 to 425 lb max.

  • 7090S - Small
  • 7090M - Medium
  • 7090L - Large
  • 7090XL - XL
  • 70902X - 2X
  • 70903X - 3X

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

ANSI Z359.11-2014           OSHA 1926.502 and 1910.66
