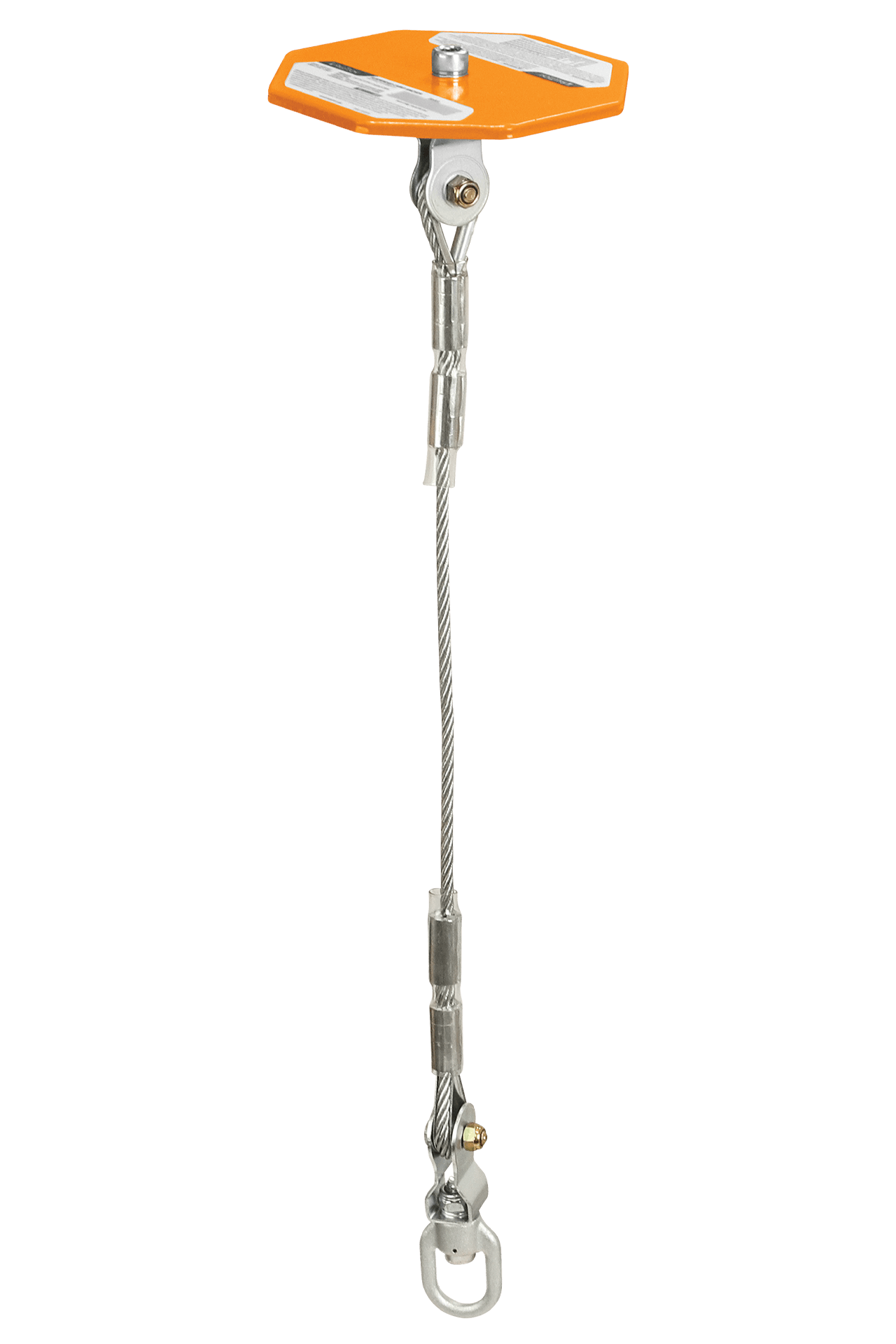

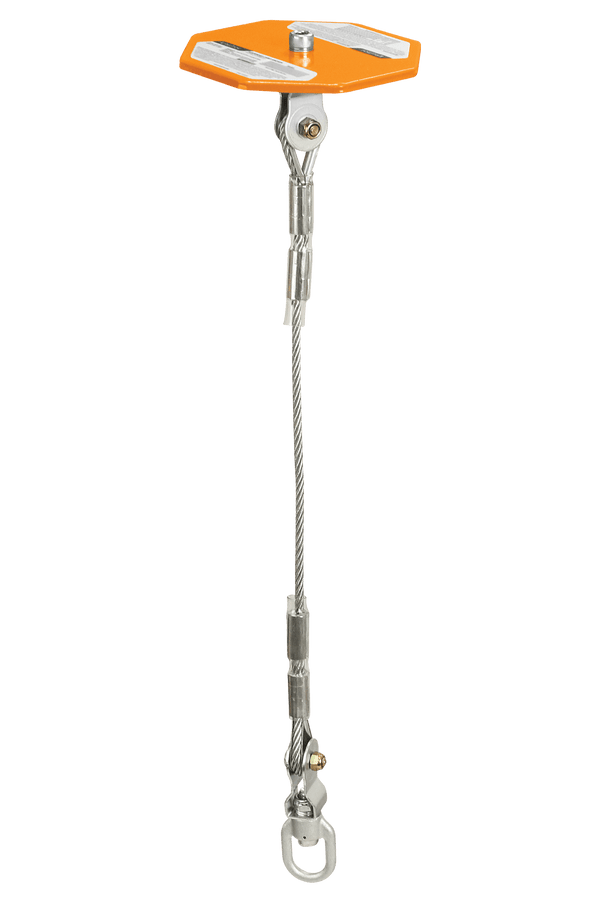

Suspended Cable Anchor for Drop-through Installation

  • Installs through overhead openings in steel deck, concrete or grating
  • 6" x 6" x 1/4" high-visibility steel load-bearing plate.
  • 1/4" galvanized steel cable with swivel connection eye
  • Assembled with steel thimbles and swaged aluminum ferrules
  • Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

Cable:   1/4" galvanized steel; 5,000 lb min. static strength
Plate:    Powder coated carbon steel

PERFORMANCE SPECIFICATIONS

Static Strength:            5,000 lb min.
ANSI User Capacity:    130 to 310 lb max.
OSHA User Capacity:  130 to 425 lb max

SIZES & PART NUMBERS

  • 74942 - 2'
  • 74946 - 6'
  • 749485 - 8 ½'

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

ANSI Z359.18-2017    OSHA 1926.502 and 1910.66
