Prolyte H40V Square Truss
Product No. H40V-L050
Shipping calculator
Please enter correct zip code
Payment methods
Product details

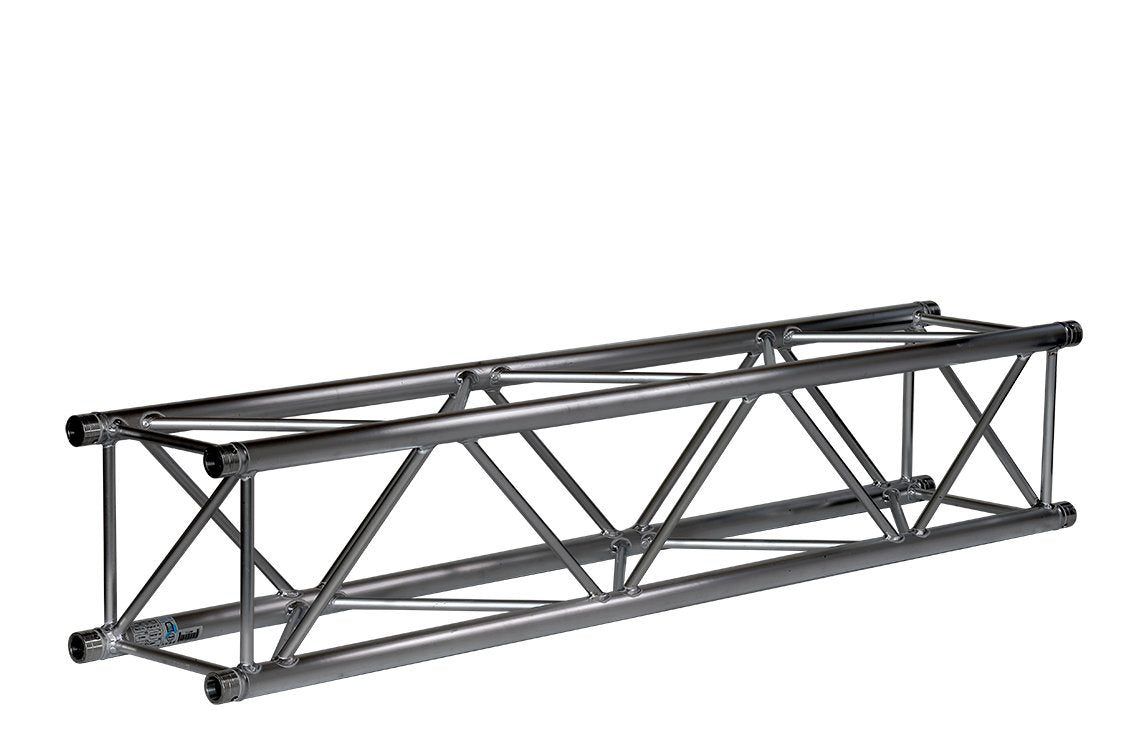

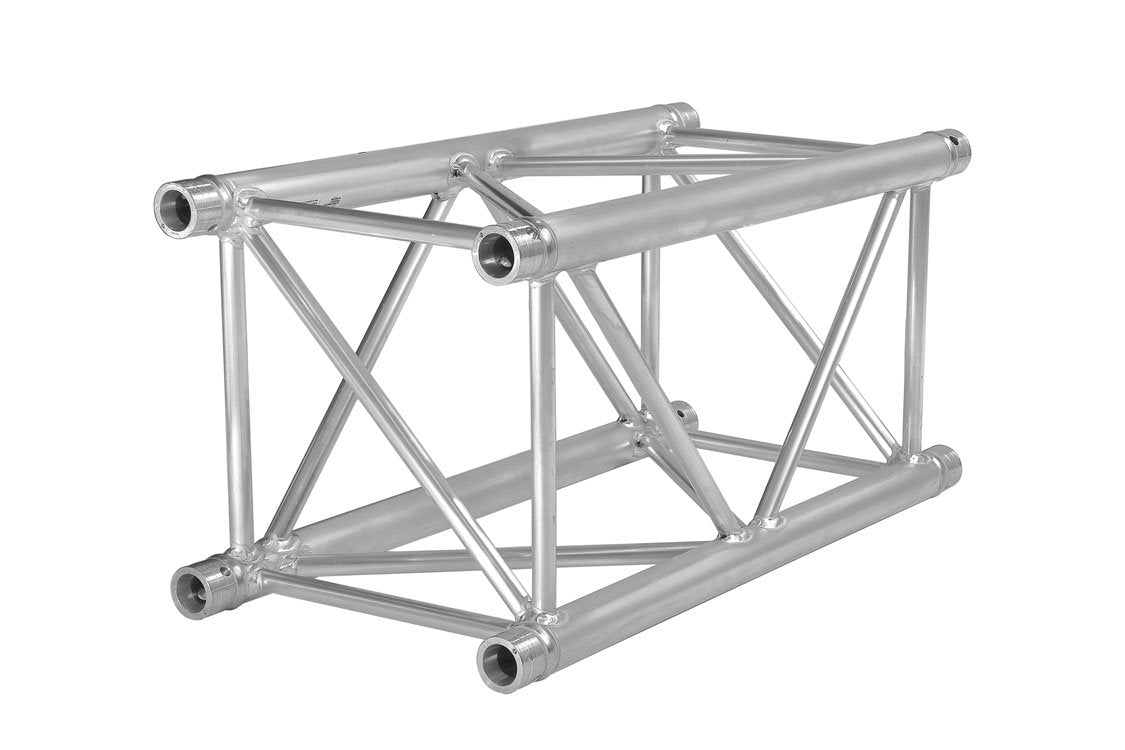

H40 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss is available in ladder, triangular and square profiles and a range of corners and accessories.
| LOADING TABLE | |||||
|
Span
|
Maximum Uniformly Distributed Load | Maximum Centre Point Load | |||
| Length (m) | Total Weight (kg) | Load (kg/m) | Deflection (mm) | Load (kg/m) | Deflection (mm) |
| 3 | 20.7 | 835.4 | 7 | 2198.9 | 6 |
| 6 | 41.4 | 414.6 | 29 | 1234.4 | 23 |
| 9 | 62.1 | 218 | 65 | 861.7 | 52 |
| 12 | 82.8 | 119.9 | 116 | 653.1 | 93 |
| 15 | 103.5 | 74.5 | 182 | 517.9 | 146 |
