OZ Lifting Builders Hoist

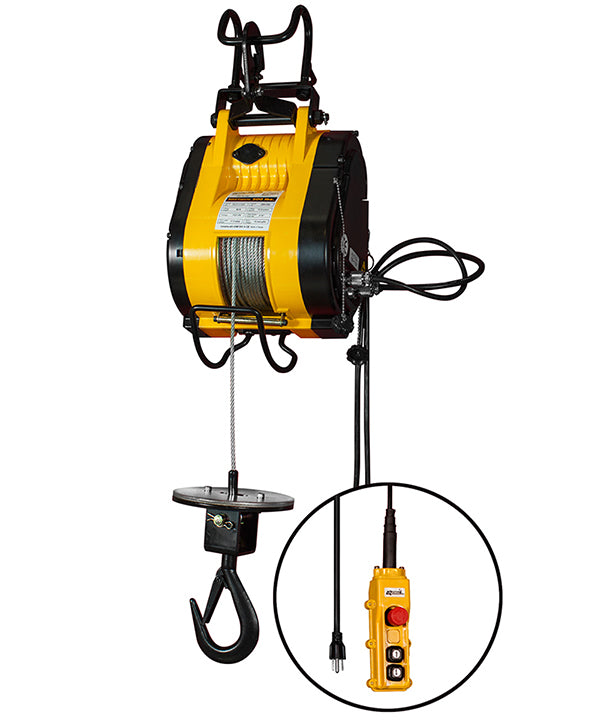

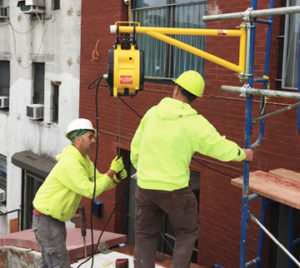

The OZ builder's hoist is a lightweight and compact electric hoist that can be attached to scaffolding or a wall using a bracket for use on site. The hoist has a dynamic, mechanical brake to allow for instant and safe braking. Upper and lower limit switches provide additional safety. The hoist has a galvanized wire rope with a 360-degree weighted hook and a safety latch for smooth and secure lifting. The hoist operates on a standard domestic power supply making it highly versatile and features quick release pendant and power cords.
Click here to browse our wall and pipe mounts for this builder's hoist.

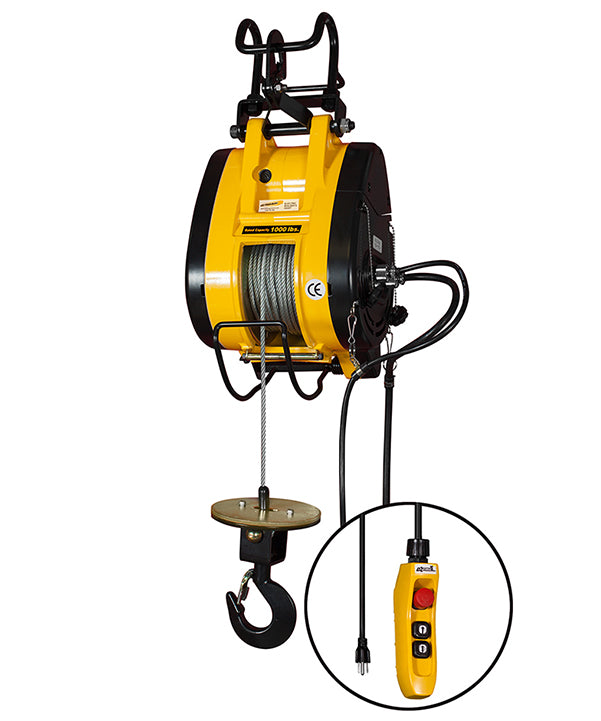

The Builder's Hoist is available in 500lbs and 1 ton lifting capacities and also in a wireless version with 600lbs lifting capacity.
Features
- Lightweight and compact
- Dynamic mechanical brake
- Upper & lower limit switches
- Galvanized wire rope
- Quick release pendant & power cords
- Uses standard power supply
Specs
| OBH500 | OBH1000 | |
| Lifting Capacity (Full Drum) | 500 lbs | 1000 lbs |
| Motor Voltage | 115/1/60 | 115/1/60 |
| Speed | 75 fpm | 37 fpm |
| Motor | 1.74 HP | 2.41 HP |
| Motor KW | 1300W/17.5A | 1800W/15.5A |
| Lifting Height | 90 ft | 90 ft |
| Wire Rope | 3/16 in | 1/4 in |
| Winch Weight | 48 lbs | 69 lbs |
| Gross Weight | 54 lbs | 73 lbs |
| Power Cord Length | 15 ft | 15 ft |
| Pendant length | 65 ft | 65 ft |
| Full Load AMPS | 17.5 | 15.5 |
| Duty Cycle (min) | 15 (25%) | 15 (25%) |
500, 1000 lbs
| OBH500 | OBH1000 | ||
| A (in) | Height | 26.77 | 28.50 |
| B (in) | Width | 9.50 | 10.50 |
| C (in) | Depth | 7.88 | 12 |
| D (in) | Hanger Width | 4.50 | 5.50 |
| E (in) | Hanger Opening | 2 | 2 |
| F (in) | Hook Opening | 1.62 | 1.50 |
