JTE General Purpose Truss (Thomas Truss) 20.5'' x 20.5'' Plated
Product No. B0400
Shipping calculator
Payment methods
Product details

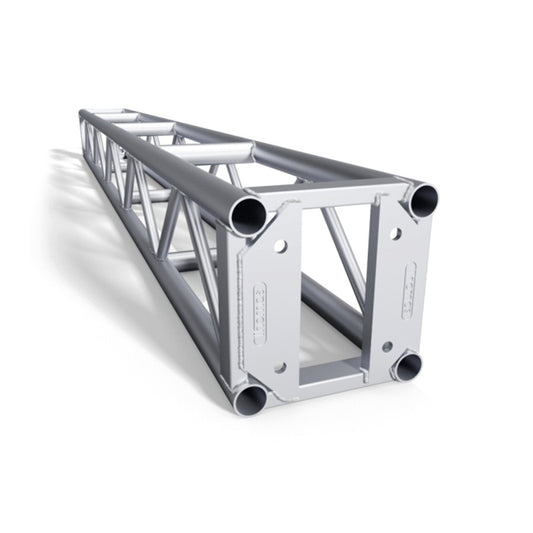

Thomas Truss 20.5 x 20.5 Plated
James Thomas Engineering is a name synonymous with manufacturing high-quality truss products. The JTE General Purpose Truss, also known as Thomas Truss, is constructed out of lightweight aluminum tubing that is strong despite its weight. The 20.5” x 20.5” truss is ideal for the majority of lighting applications and any general-purpose use. Unlike Thomas Truss 12'' x 12'', this model can be used for flying PA systems. We offer the 20.5” x 20.5” truss in a variety of lengths.
Please refer to the Load Chart tab for all allowable load data, and download the JTE GP 20.5 x 20.5 spec sheet for reference. Bolts are included for assembly.
For large orders, call (570)826-5566 for special bulk pricing, or submit a Request For Quote and one of our sales team members will get back to you with our best price.
MATERIAL: 6082T6 or 6061T6 Aluminum
FIXING: Supplied as standard with bolts for connection
DIAMETER: Main Chords: 2“ Dia x 0.125“ wall & Diagonal Chords: 1“ Dia x 0.125“ wall
LENGTH: 5', 8' and 10'
WEIGHTS:
- 10’ – 88 lbs
- 8’ – 75 lbs
- 5’ – 60 lbs
- 5-Way Corner Block – 40 lbs
| MAXIMUM ALLOWABLE UNIFORM LOADS | MAXIMUM ALLOWABLE CENTER POINT LOADS | |||
|
SPAN (FT) |
LOAD (LBS) | MAX DEFLECTION (IN) | LOAD (LBS) | MAX DEFLECTION (IN) |
| 10 | 5741 | 1.06 | 2870 | 1.06 |
| 20 | 5741 | 1.06 | 2870 | 1.06 |
| 30 | 3715 | 1.57 | 1858 | 1.57 |
| 40 | 2643 | 2.44 | 1322 | 2.44 |
| 50 | 1911 | 3.70 | 957 | 3.70 |
