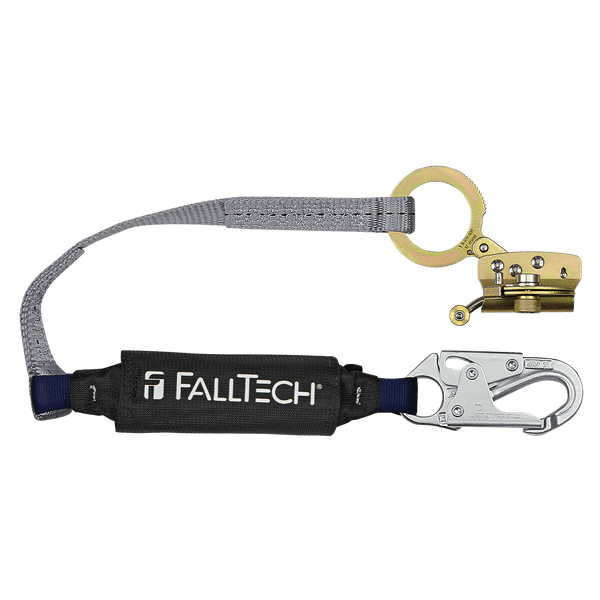

Hinged Trailing Fall Arrester with Anti-panic and 3' ViewPack® Energy Absorbing Lanyard
Product No. 8388
Regular price
$144.37 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Hinged Trailing Fall Arrester with Anti-panic and 3' ViewPack® Energy Absorbing Lanyard
FEATURES
- Anti-panic function provides the safest solution available for vertical rope attachment
- Hinged design allows user installation at any point on the lifeline.
- Trailing mobility follows ascending and descending user with minimal effort
- Energy absorber features patented ViewPack® cover with inspection window
- For use with 5/8" diameter synthetic rope lifelines
- Includes alloy steel fall arrester for lifeline connection and snap hook for harness attachment
- Complies with ANSI Z359.15-2014
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
Energy Absorber: Polyester tear-away
Fall Arrester: 5/8" Fall Arrester/Grab; Plated alloy steel; 5.000 lb min.
Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 1,800 lb min.
ANSI Lanyard Class: 6' free fall
Max. Arrest Distance: 11'
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 8388 (ANSI Compliant)
- C8388 (CSA Compliant)
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.15-2014
OSHA 1926.502 and 1910.66
CSA Z259.2.5-2017
