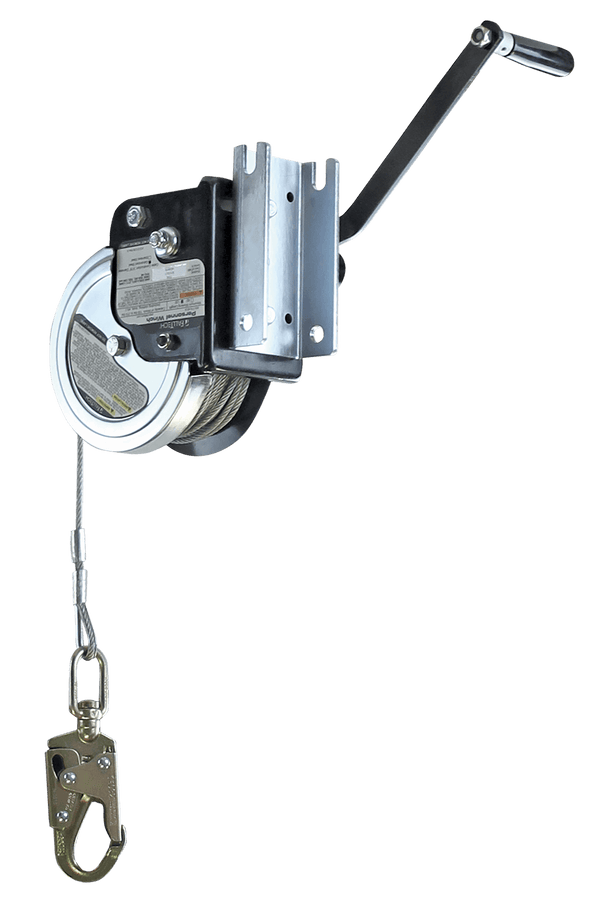

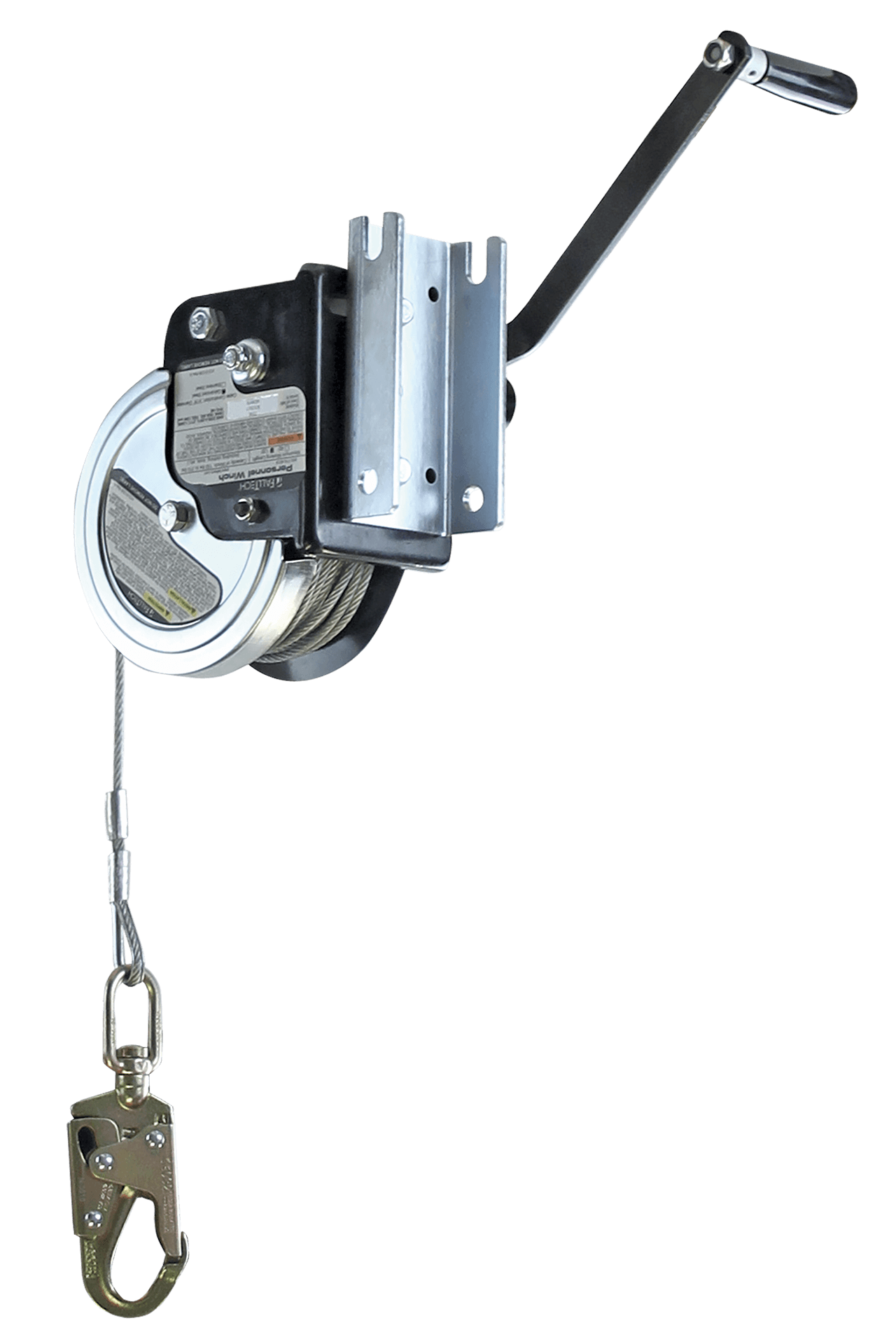

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable
Product No. 7297S
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Regular price
$721.00 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable
FEATURES
- Single user mechanical Winch for entering and exiting confined spaces
- 3/16" stainless steel cable lifeline with alloy steel swivel snap hook.
- Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
- Secondary braking system provides added safety in case of primary brake failure
- Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
- Includes 20" weather-resistant storage bag
- Winch is not intended for Material Handling purposes
- Complies with ANSI Z359.4-2013 and Z117.1-2009
MATERIAL SPECIFICATIONS
Cable: 3/16" stainless steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears: Plated alloy steel
PERFORMANCE SPECIFICATIONS
Static Strength: 3,100 lb min.
Handle Operation Force: 30 lb max.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 7297S - 60'
- 7298S - 120'
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.4-2013 and Z117.1-2009
OSHA 1926.502, 126.1200 and 1910.146
