•  Winch for Tripods

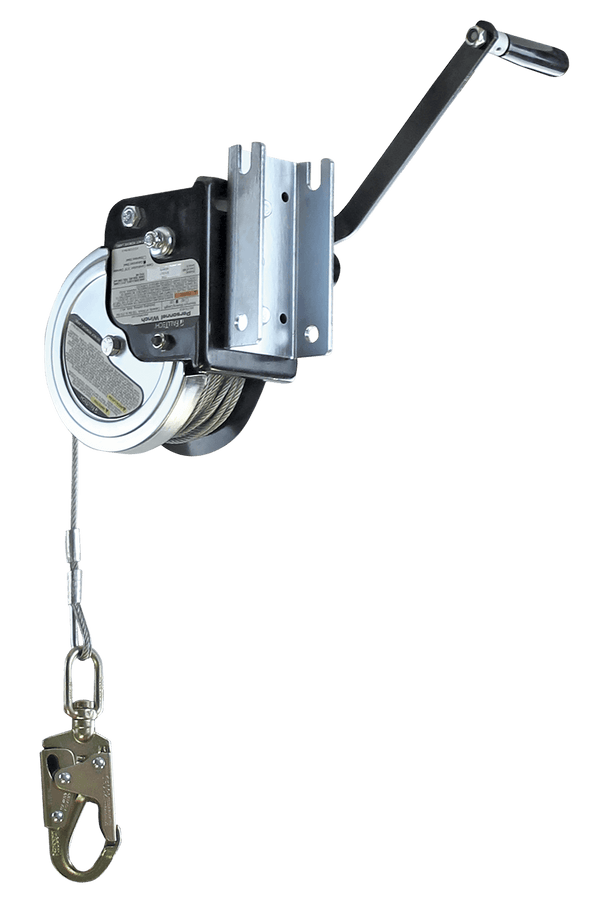

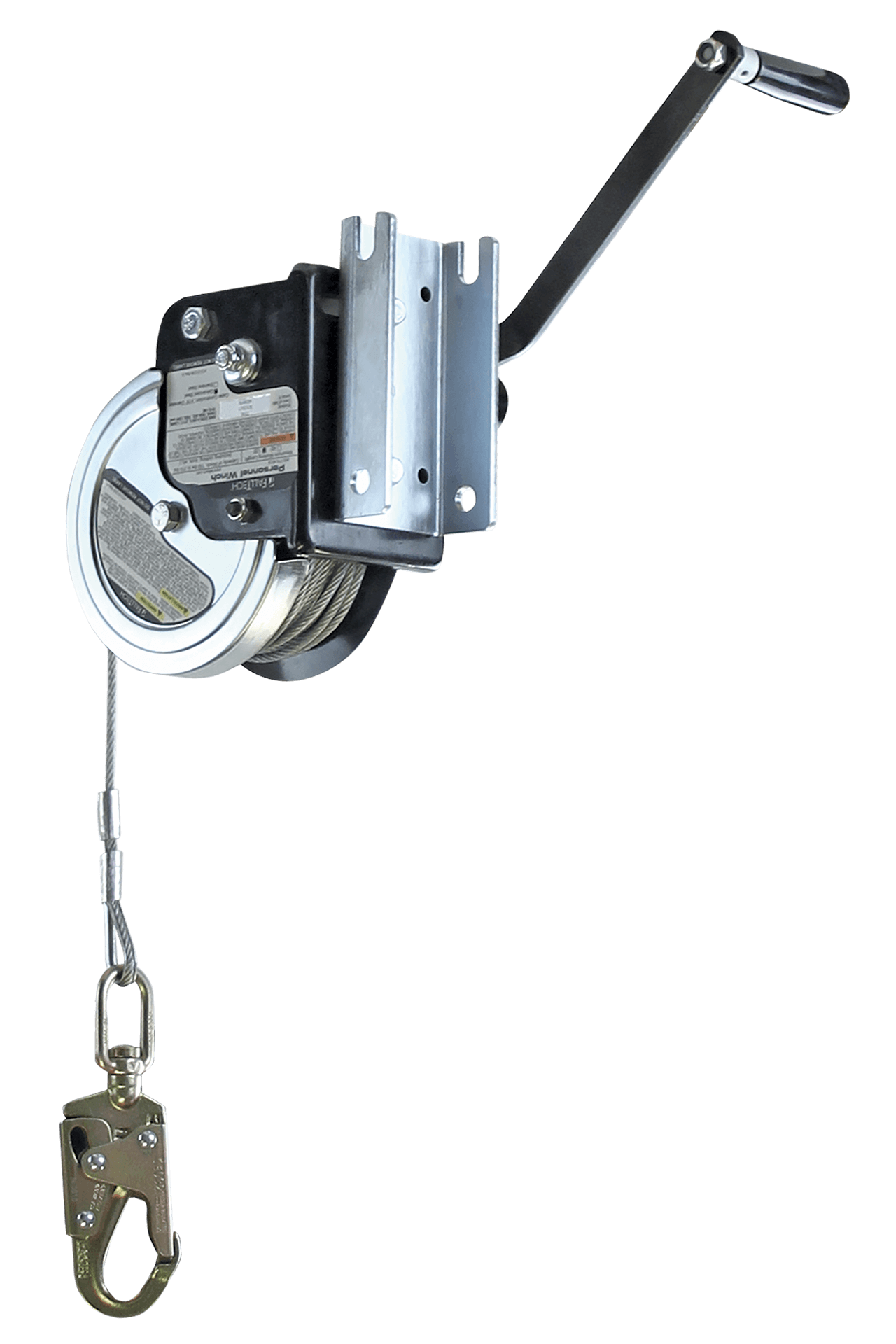

FallTech® Personnel Winch for Tripods and Davits with Galvanized Steel Cable

Product No. 7298

Regular price $732.38 USD
SIZE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

FallTech® Personnel Winch for Tripods and Davits with Galvanized Steel Cable

FEATURES

  • Single user mechanical Winch for entering and exiting confined spaces
  • 3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2009
Cable:                                                                    3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector:                                             Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears:                                       Plated alloy steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                            3,100 lb min.
Handle Operation Force:                             30 lb max.
ANSI User Capacity:                                    130 to 310 lb max.
OSHA User Capacity:                                   130 to 310 lb max.

SIZES & PART NUMBERS

  • 7297 - 60'
  • 7298 - 120'

COMPLIANT  WITH:

ANSI Z359.4-2013 and Z117.1-2009
OSHA 1926.502, 126.1200 and 1910.146
