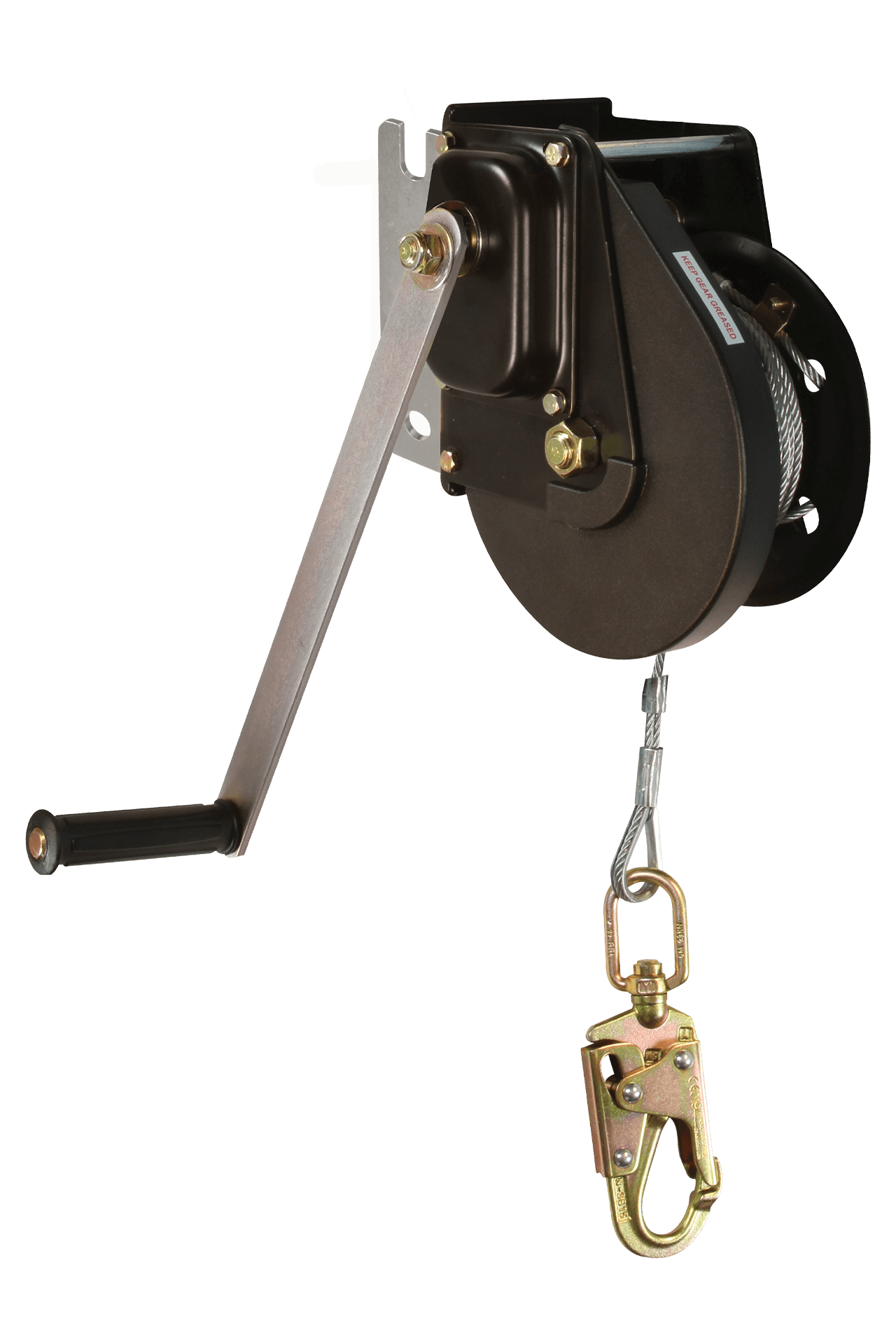

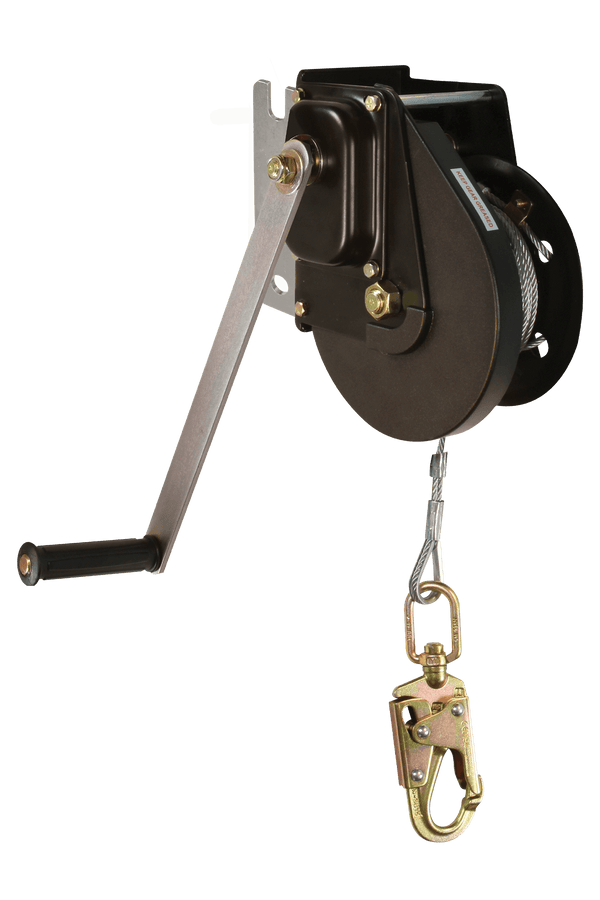

FallTech® Materials Winch for Tripods and Davits with Galvanized Steel Cable
FEATURES
- Manually operated mechanical Winch for raising and lowering materials with minimal effort
- 3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.
- Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
- Includes integral mounting bracket for Davit and Tripod installation
- Includes 20" weather-resistant storage bag
- Winch is not intended for personnel applications
MATERIAL SPECIFICATIONS
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears: Plated alloy steel
PERFORMANCE SPECIFICATIONS
Static Strength: 3,100 lb min.
Handle Operation Force: 30 lb max.
Max. Working Load: 620 lb
SIZES & PART NUMBERS
- 7293M - 60'
- 7295M - 120'
DOWNLOADS
COMPLIANT WITH:
ANSI A10.5-1969
OSHA 1926.502
