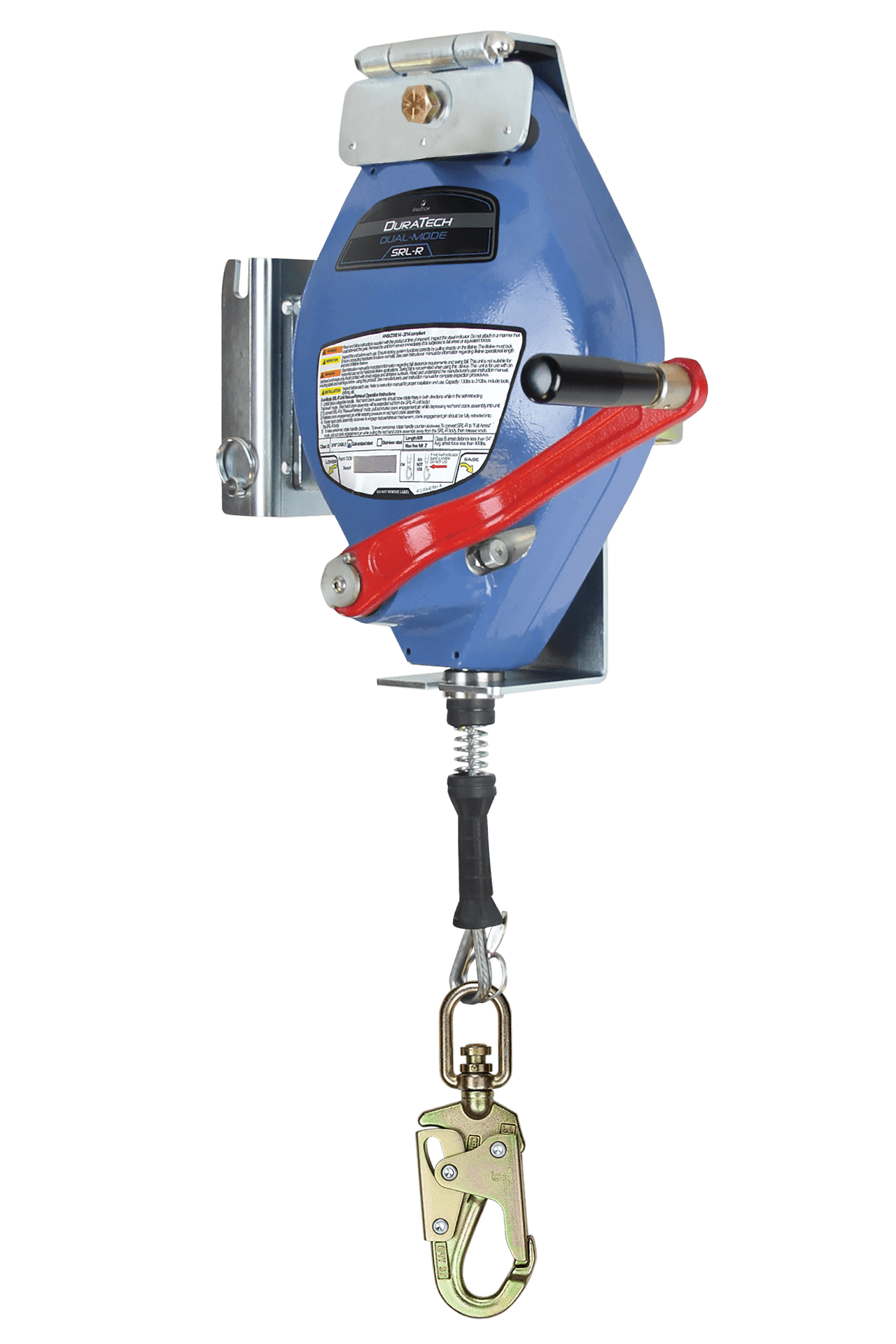

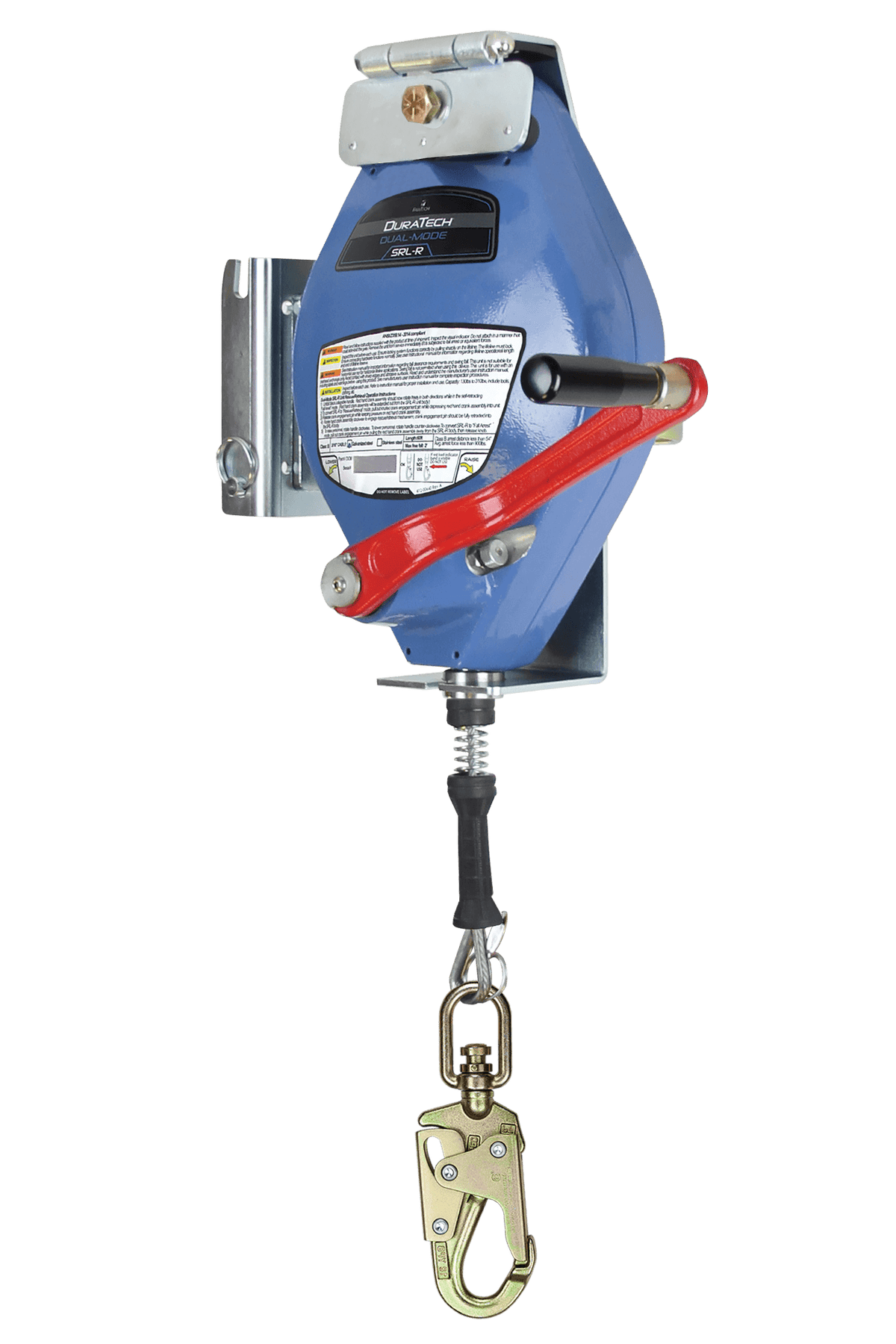

DuraTech® 60' 3-way SRL-R with Stainless Steel Cable for Davits
Product No. 7281DS
Regular price
$1,878.19 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
DuraTech® 60' 3-way SRL-R with Stainless Steel Cable for Davits
FEATURES
- Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
- Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
- Features rugged Internal inertial braking system with dual disc brakes
- 3/16" stainless steel cable lifeline with load-indicating swivel snap hook
- Features integrated proprietary davit mast mounting bracket
- Includes 20" weather-resistant storage bag
- Complies with ANSI Z359.14-2014
MATERIAL SPECIFICATIONS
Cable: 3/16" stainless steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Housing and Drum: Machined aluminum alloy
PERFORMANCE SPECIFICATIONS
Static Strength: 3,000 lb min.
ANSI SRL Class: Class B
Avg. Arrest Force: 1,125 lb
Max Arrest Force: 1,800 lb
Max Arrest Distance: 54"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.14-2014
OSHA 1926.502 and 1910.66
