Doughty Trigger TV Clamp


A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. Has a WLL of 200Kg and is 30mm (1.18″) wide, factory fitted with a 29mm (1.14″) Spigot receiver designed to accept a 28mm (1.10″) diameter spigot.

Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs.

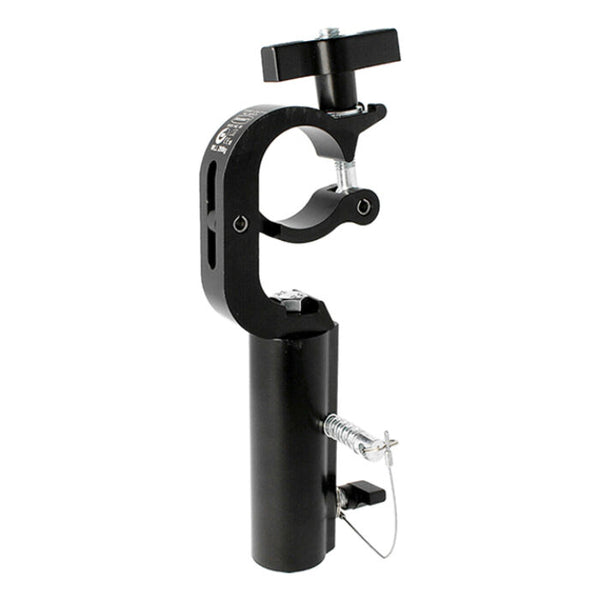

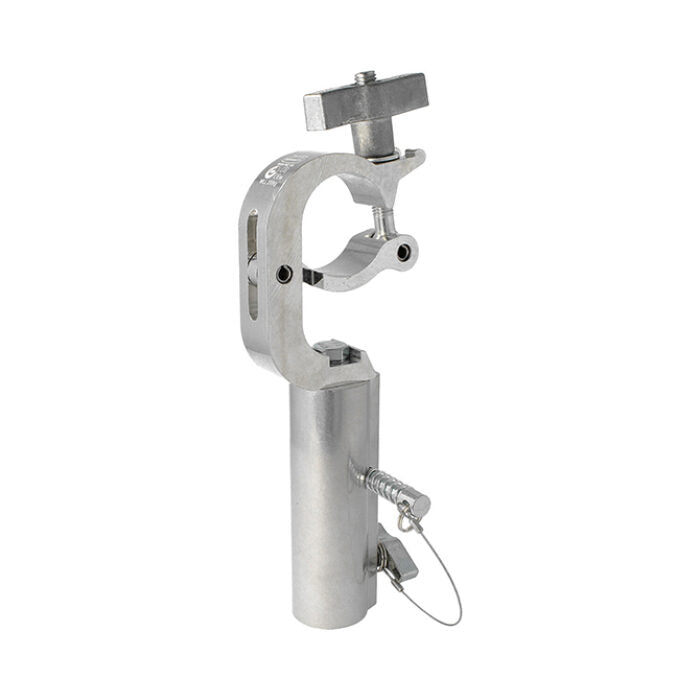

Available in polished silver or powder coated black.


Downloads:

Data Sheet




Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
  • Factory fitted with 29mm (1.14″) Spigot receiver for 28mm (1.10″) spigots
  • Supplied with lynch pin for 360° secondary locking
  • Ideal for TV/Film applications with Drop Arms and Pantographs



Specifications:

  • WLL: 200Kg

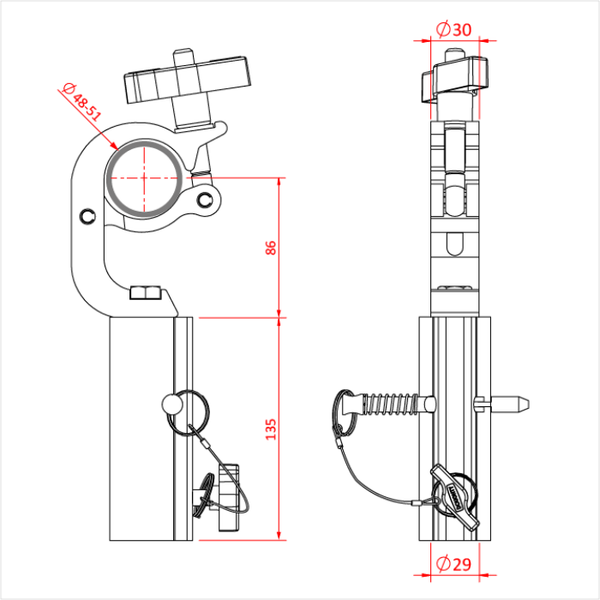

  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 30mm (1.18")
  • Spigot Receiver Diameter: 29mm (1.14")
  • Spigot Compatibility: 28mm (1.10") diameter spigot



References:

  • Doughty Engineering Official Datasheet
  • TV/Film Rigging Standards
  • Clamp Compatibility Guidelines
