Doughty Trigger Hook Clamp

Doughty Trigger Hook Clamp

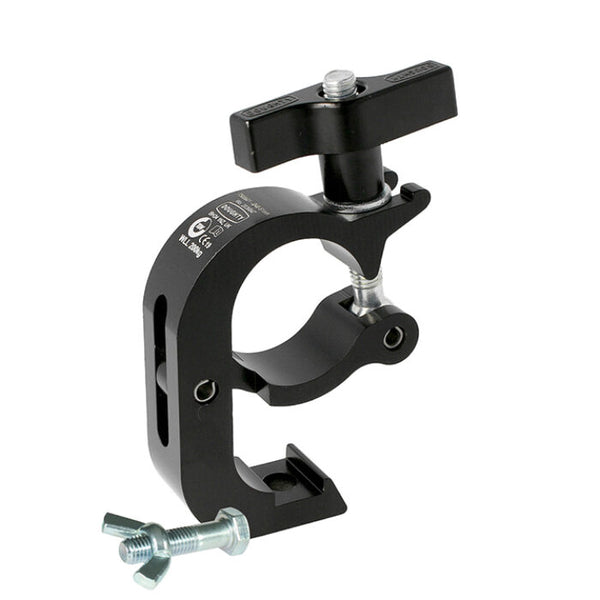

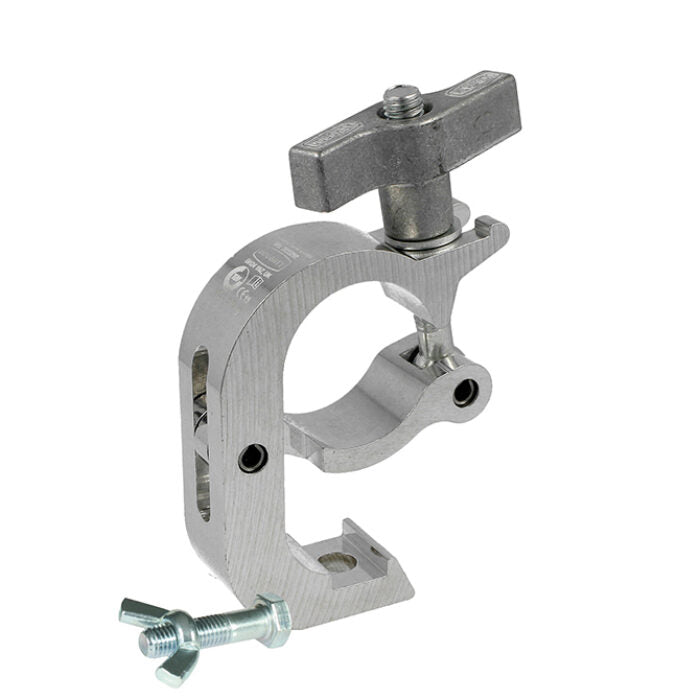

The Doughty Trigger Hook Clamp is a high-quality truss clamp designed for safe and efficient rigging of heavy luminaires and scanners. Available in Polished Aluminum or Black Powder Coated finish, it combines robust strength with a lightweight construction thanks to its high tensile aluminum extrusion build.

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. Has a WLL of 200Kg and is 30mm (1.18″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in polished silver or powder coated black.

This robust clamp is designed to provide secure and reliable rigging solutions in professional lighting and staging environments. Its trigger mechanism allows for quick installation and removal without compromising safety or fixture integrity.

Whether you're working in a theatre, concert venue, or event production, the Doughty Trigger Hook Clamp offers dependable performance and peace of mind under load.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction for strength and durability
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Working Load Limit (WLL) of 200Kg
• Supplied with M12 X 45 bolt and wing nut for easy installation
• Available in polished silver or powder coated black finish

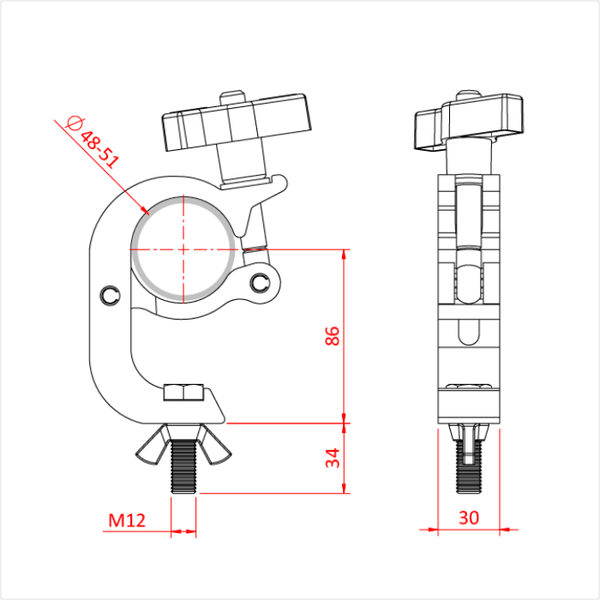

Specifications:

• WLL: 200Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Includes: M12 X 45 bolt and wing nut

References:

• Doughty Engineering Ltd.
• Product Code: T58861 / T5886101
• Data Sheet: T58861-T5886101-Data-Sheet.pdf
