Doughty Trigger Clamp Basic
$42.42
Doughty Trigger Clamp Basic
$42.42
Color:
Silver
Please enter correct zip code
Doughty Trigger Clamp Basic
The Doughty Trigger Clamp Basic is engineered for professionals requiring secure, efficient rigging solutions. Constructed from high tensile aluminum extrusion, this clamp is both lightweight and exceptionally strong, ensuring reliable performance in demanding environments.
A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 200Kg and is 30mm (1.18″) wide. Slotted to hold captive an M12 nut or bolt head. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- Constructed from high tensile extruded aluminium
- Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
- Working Load Limit (WLL) of 200Kg
- Slotted design holds captive an M12 nut or bolt head

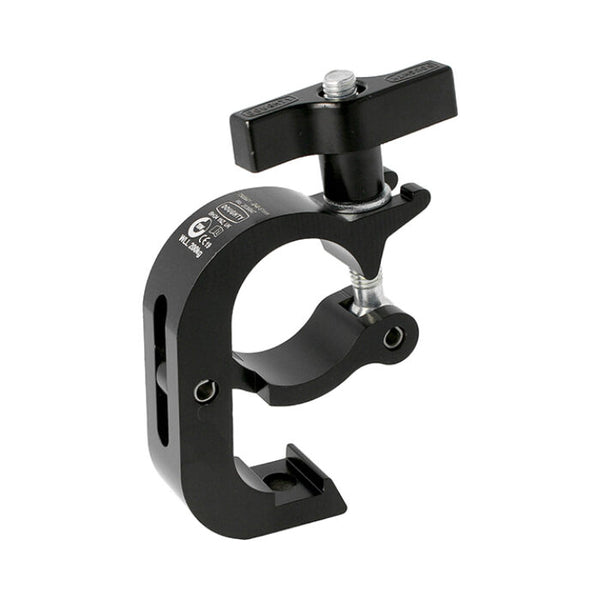

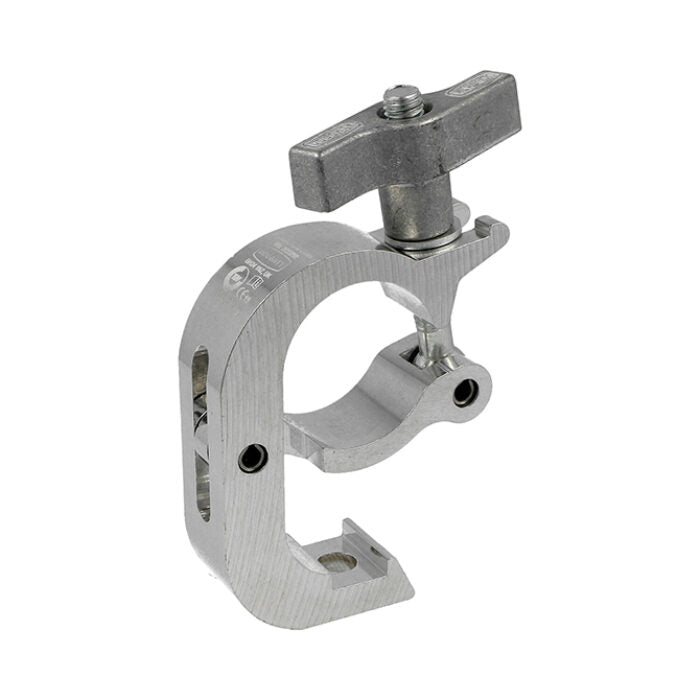

- Available in polished silver or powder coated black finish

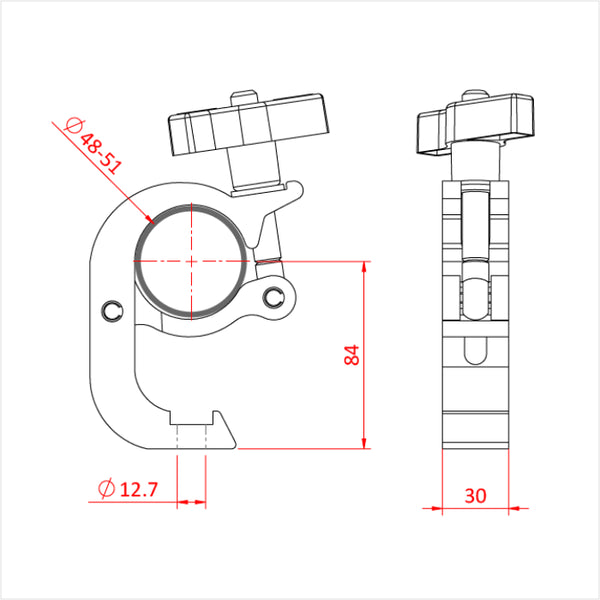

Specifications:
- WLL: 200Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Finish: Polished silver or powder coated black
References:
- Doughty Engineering
- Product Code: T58860 / T588601
- Official Data Sheet
