Product details

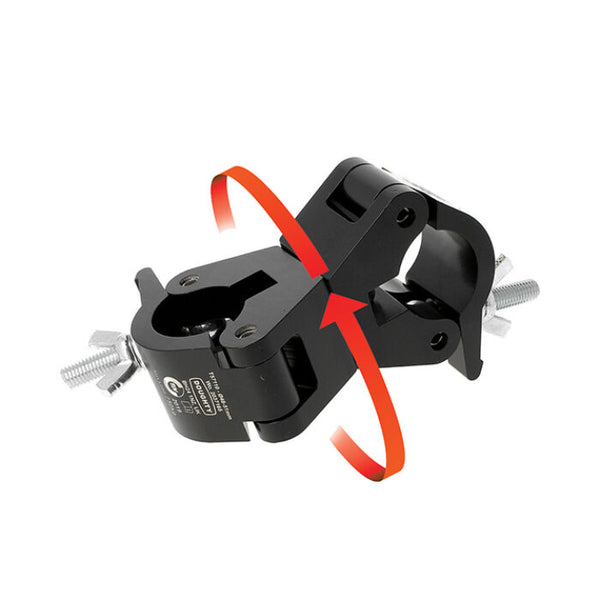

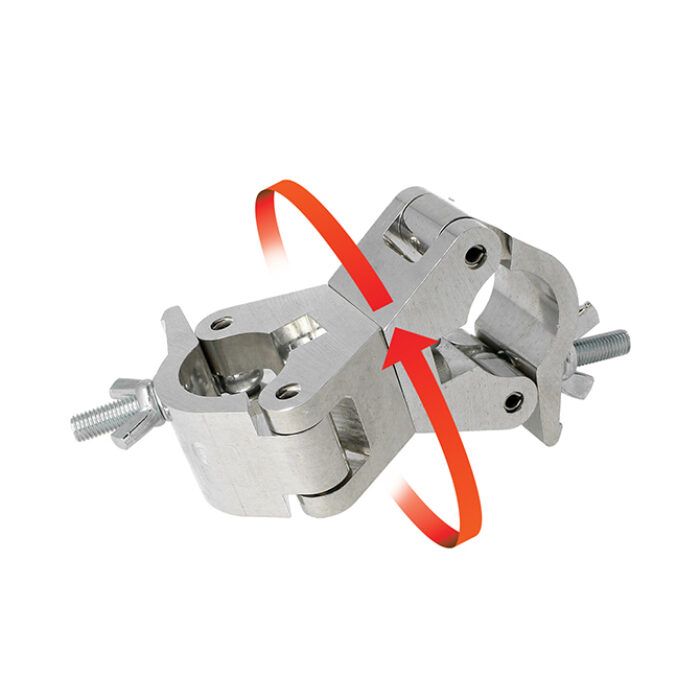

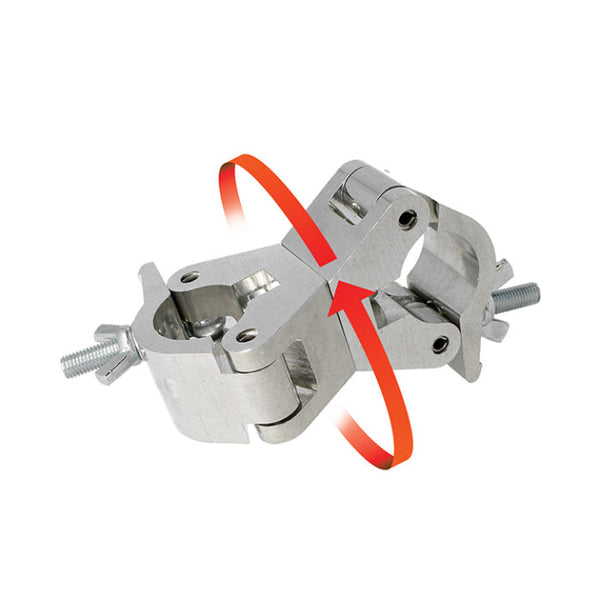

Doughty Swivel Coupler
The industry standard half coupler factory fitted with an Eye Nut. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes and is 50mm (1.97 lbs) wide. Ideal for trussing as it will not damage the cords.
Available in polished silver or powder coated black.
WLL: 340Kg
Downloads:
Key Features:
- Factory fitted with an Eye Nut for secure rigging applications
- Constructed from high tensile extruded aluminium for strength and durability
- Compatible with 48mm to 51mm (1.89” – 2.01”) diameter tubes
- Clamp width of 50mm (1.97 lbs) ensures stability and load distribution
- Ideal for trussing; designed not to damage cords

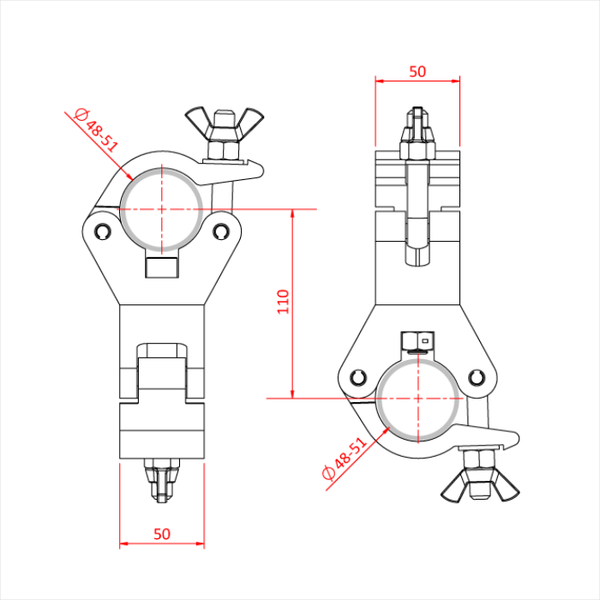

Specifications:
- WLL: 340Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Material: High tensile extruded aluminium
- Finish: Polished silver or powder coated black
References:
- Doughty Engineering Official Data Sheet
- Product Code: T57100 / T57110
- Used in professional trussing and rigging systems
