Doughty Super Lightweight Hanging Clamp

Doughty Super Lightweight Hanging Clamp

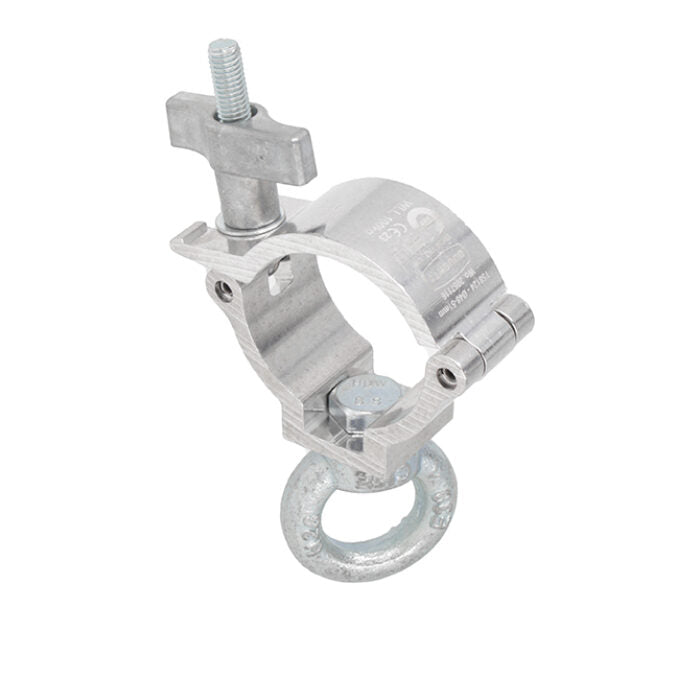

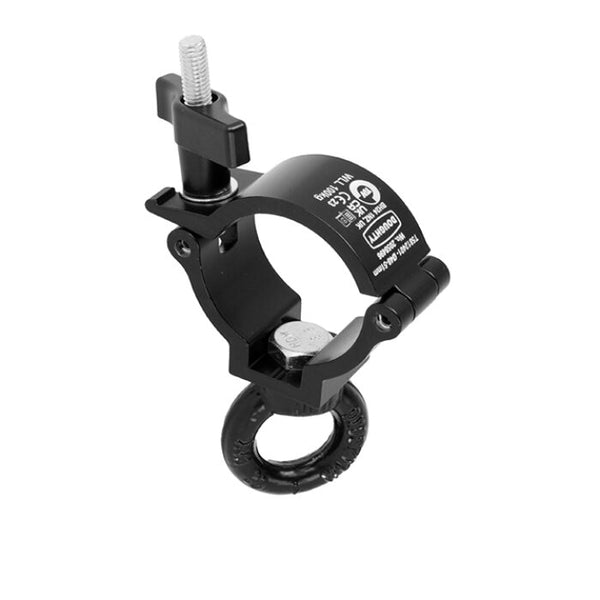

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with an Eye Nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

Designed for professional rigging applications, this super lightweight hanging clamp offers both durability and reliability. Its high tensile aluminium construction ensures strength without unnecessary weight, making it an excellent choice for event production and stage setups.

Engineered to fit a wide range of tube diameters, the Doughty Super Lightweight Hanging Clamp provides a secure solution for truss mounting, with a compact width and integrated Eye Nut for added convenience and safety.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction for lightweight strength
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with an Eye Nut for secure attachments
• Clamp width of 30mm (1.18″) for compact, efficient mounting
• Available in polished silver or powder coated black finish

Specifications:

• WLL: 100Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Doughty Engineering Product Range
• Trussing and Rigging Safety Standards
• Event Production Equipment Guidelines

Choose the Doughty Super Lightweight Hanging Clamp for a dependable and professional rigging solution that delivers strength, compatibility, and ease of use in any truss-based setup.
