Doughty Super Lightweight Half Coupler

Doughty Super Lightweight Half Coupler

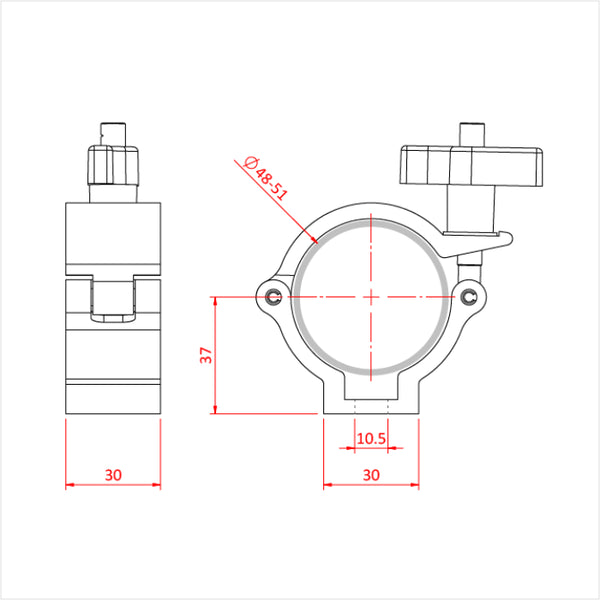

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes.

It has a WLL of 100Kg and is 30mm (1.18″) wide.

Slotted to hold captive an M10 nut or bolt head and supplied with an M10 X 30 bolt and wing nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• Manufactured from high tensile extruded aluminium
• Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)
• Working Load Limit (WLL) of 100Kg
• Slotted design to secure M10 nut or bolt head

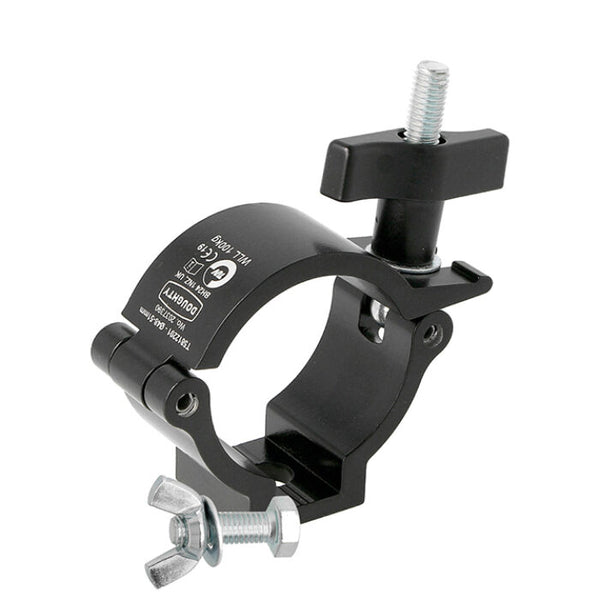

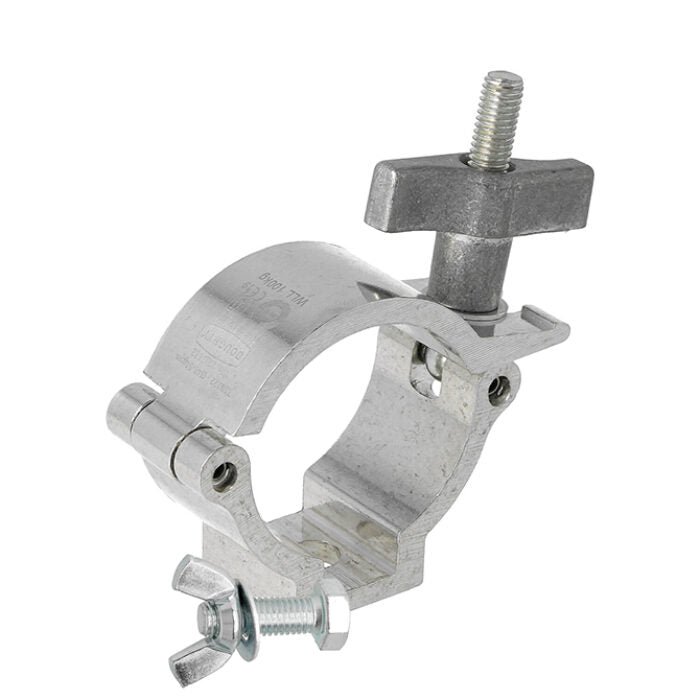

• Available in polished silver or powder coated black finish

Specifications:

• WLL: 100Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Included Hardware: M10 X 30 bolt and wing nut

References:

• Doughty Engineering
• Product Code: T58122 / T5812201
• Technical Data Sheet
