Doughty Eye Clamp: Slimline 2'' Hanging Clamp

Doughty Eye Clamp: Slimline 2'' Hanging Clamp

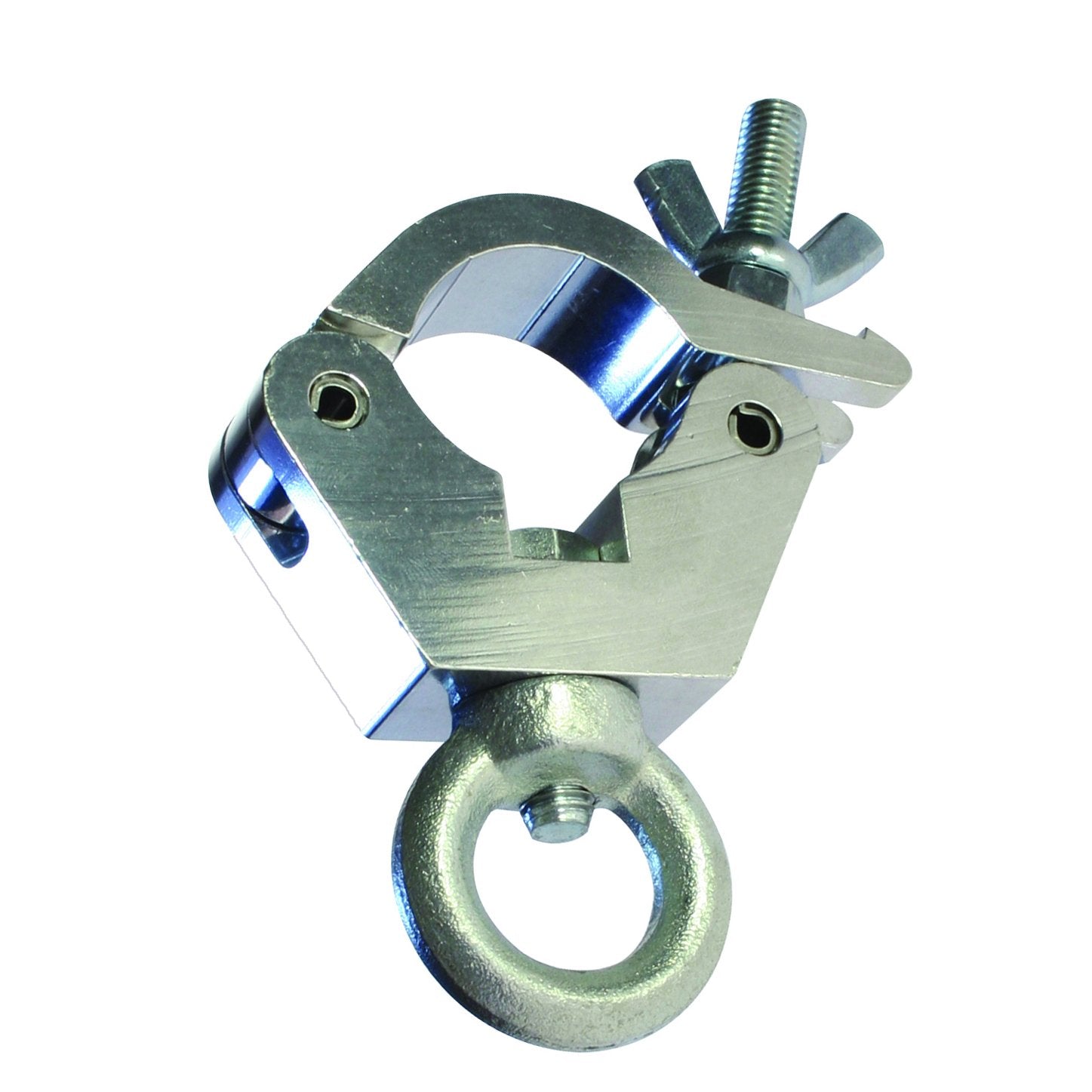

The Doughty Slimline Eye Clamp is supplied fitted with a 1.2'' diameter Eye Nut for suspending wire hung loads. This clamp is slim enough to be used between truss webs etc.

Manufactured from high tensile Aluminum Extrusion. Widely applicable in the theatre, film, TV and photographic industries for attaching to round tubes or truss chords and suspending equipment and luminaries.

For any inquiries, please contact us via chat.

Downloads:

User Manual - Cert

Key Features:

• Fitted with 1.2'' diameter Eye Nut for wire hung loads
• Slimline profile allows use between truss webs
• Made from high tensile Aluminum Extrusion
• Ideal for theatre, film, TV, and photographic applications
• Attaches securely to round tubes or truss chords

Specifications:

• SWL: 750 lbs
• Tube Diameters: 1.9'' - 2''
• Width: 1.2''
• Fixings: M12 Eye Nut
• Weight: 1.3 lbs
• Material: Aluminum
• Finish: Black or Polished Aluminum

References:

• Doughty Engineering – UK-based manufacturer since 1985
• Member of ESTA and PLASA for quality and safety compliance
• Global leader in rigging, suspension, and lifting equipment
