Doughty Parallel Coupler

Doughty Parallel Coupler

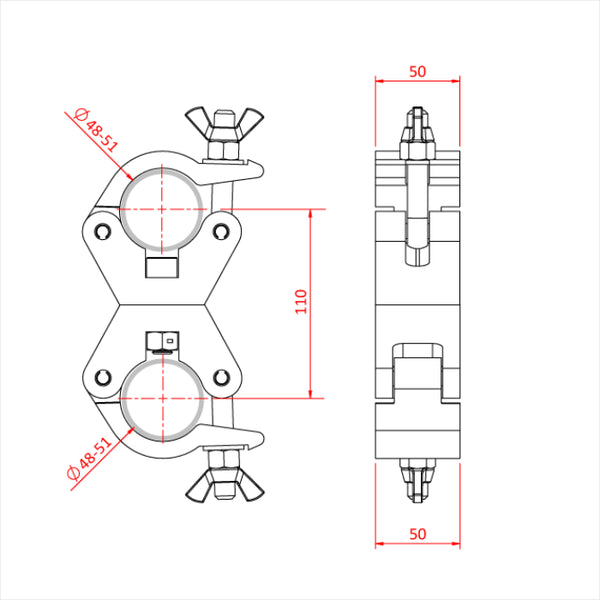

The industry standard parallel coupler, consists of a pair of high tensile extruded aluminium clamps back to back, locked in parallel that are suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes.

It has a WLL of 750Kg and uses a pair of 50mm (1.97″) wide clamps. Ideal for trussing as it will not damage the cords.

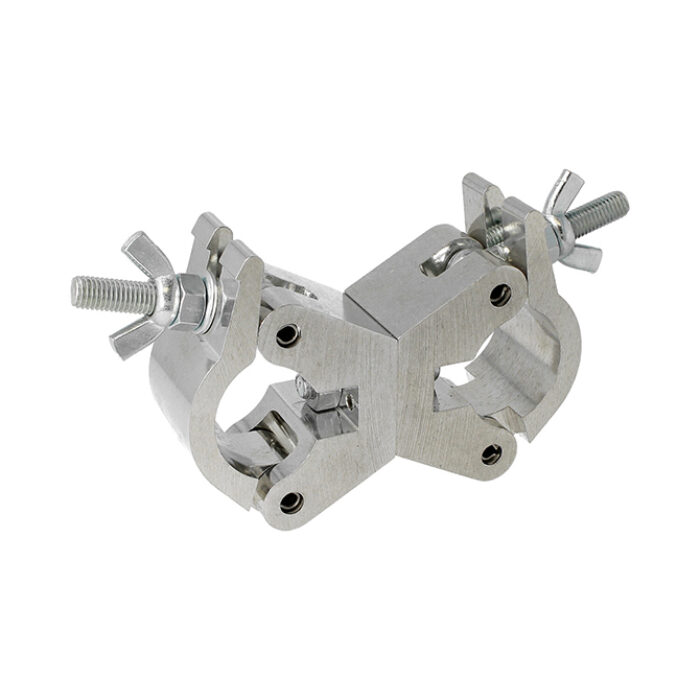

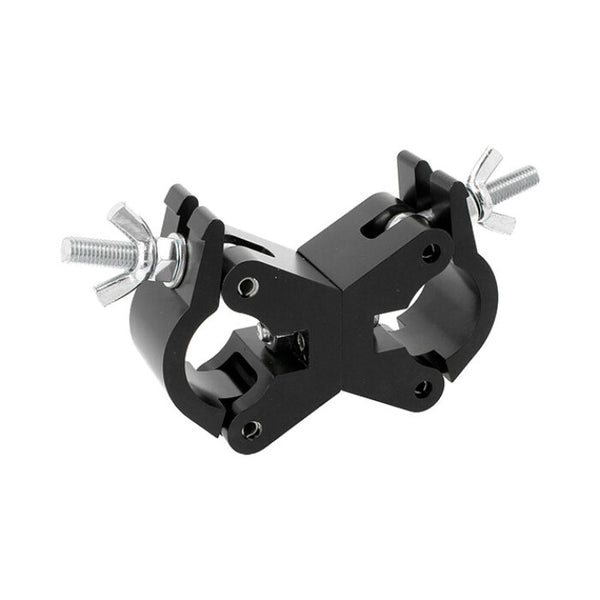

Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Back-to-back clamp design for secure parallel locking
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Will not damage truss cords
• Available in polished silver or powder coated black finish

Specifications:

• WLL: 750Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Doughty Engineering
• Product Code: T57104 / T57114
• Industry standard trussing accessory
