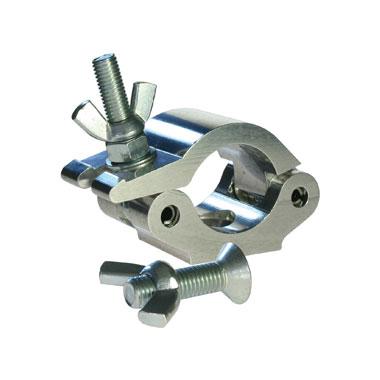

Doughty Low Profile Hook Clamp

The Low Profile Doughty Hook Clamp combines strength and durability with a high degree of safety. Constructed from high tensile Aluminum Extrusion, this Hook Clamp provides a secure fixing for tubes/bars/barrels.

This truss clamp is supplied with a Wing Nut and M12 Countersunk Bolt Fixing. Ideally suited for use with large luminaires in the theatre, film, TV and photographic industries.

Half Coupler Demonstration - A Light Quickly Hung Onto a Truss

For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

SPECIFICATIONS

• SWL: 1102 lbs
• Tube Diameters: 1.9'' - 2''
• Width: 2''
• Fixings: M12 x 45 Countersunk Bolt & Wing Nut
• Weight: 1.26 lbs
• Material: Aluminum
• Finish: Polished aluminum or black powder coated

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.

Quality and safety are key issues for Doughty. As a member of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association), Doughty always adheres strictly to the standards of trading expected
