Doughty Half Coupler

Doughty Half Coupler

The industry standard half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes. It has a WLL of 750Kg and is 50mm (1.97″) wide. Slotted to hold captive an M12 nut or bolt head. Ideal for trussing as it will not damage the cords.

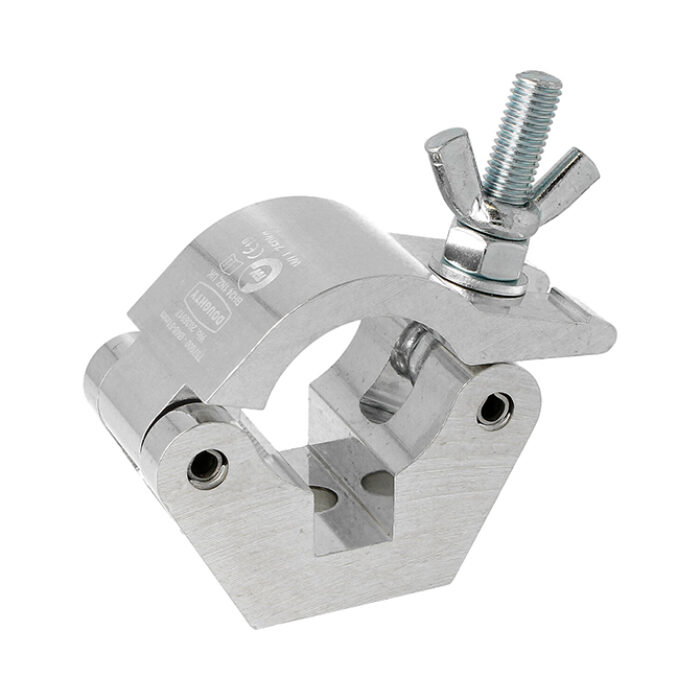

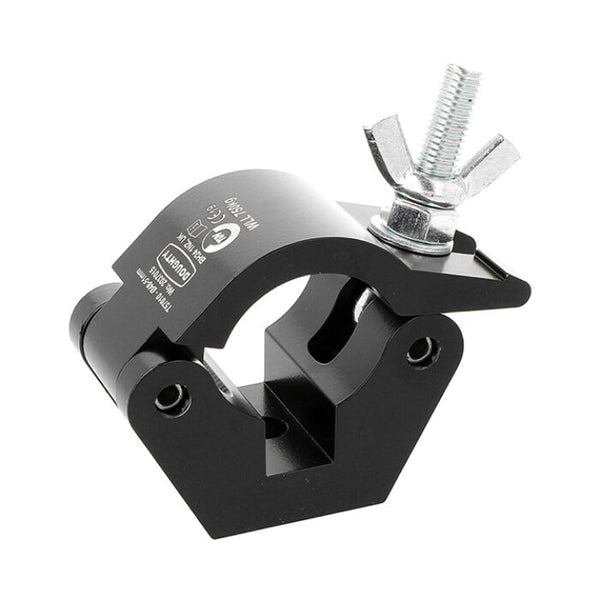

Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89” – 2.01”) diameter tubes
• Slotted to hold captive an M12 nut or bolt head
• Ideal for trussing – will not damage cords
• Available in polished silver or powder coated black

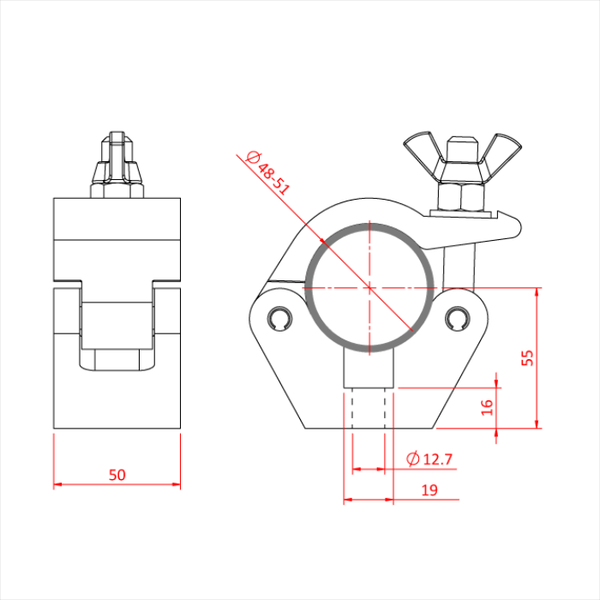

Specifications:

• WLL: 750kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish: Polished silver or powder coated black

References:

• Doughty T57000-T57010 Series
• Industry standard for rigging and trussing
• Trusted by lighting and staging professionals worldwide
